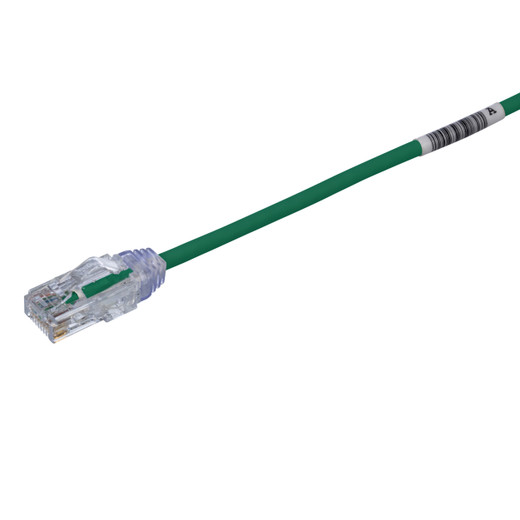

Panduit UTP28SP10GR Cat 6 28 AWG UTP Patch Cord - 10 ft Green

The Panduit UTP28SP10GR is a TX6-28™ Cat 6 UTP patch cord engineered for high-density datacenter and network closet deployments where cable congestion and airflow management are critical. This 10-foot patch cord uses 28 AWG stranded copper conductors in a 0.150-inch (3.8mm) diameter cable—38% slimmer than standard 24 AWG patch cords—enabling tighter bend radii, improved airflow, and simplified cable management in congested racks. Factory-terminated with Panduit's high-performance modular plugs featuring centered de-embedded contacts and integral pair managers, the cord exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E performance specifications across all frequencies from 1 to 250 MHz, supporting 10GBASE-T Ethernet over limited distances as specified in IEEE standards, plus full 1000BASE-T Gigabit Ethernet and PoE++ (802.3bt Type 3/4) delivery up to 100W.

Key Features

• 28 AWG stranded copper construction—0.150" (3.8mm) diameter reduces bundle size by 38% vs. 24 AWG for high-density installs
• RapidID pre-installed barcodes enable automated port mapping and asset tracking with Panduit RapidID software
• Patented tangle-free latch design prevents snags on adjacent cables during moves, adds, and changes
• 100% factory tested for wire map, NEXT, and return loss—every cord ships with verified performance
• CM/LSZH dual-rated jacket meets NEC Article 800 and low-smoke zero-halogen requirements for occupied spaces
• Supports IEEE 802.3af/at/bt PoE/PoE+/PoE++ applications up to 100W (Type 4) power delivery
• Compatible with both T568A and T568B wiring schemes for mixed-standard environments

High-density network environments—blade server chassis, converged infrastructure racks, MDFs with 400+ port counts—face a common install challenge: cable bulk. Standard 24 AWG patch cords create thick, rigid bundles that choke airflow, obscure port labels, and make adds/changes a wrestling match. The UTP28SP10GR addresses this directly with 28 AWG stranded conductors that deliver the same Cat 6 bandwidth and PoE power capacity in a 0.150-inch cable diameter. The slimmer profile yields measurable benefits: a 48-port bundle of 28 AWG cords occupies roughly 60% of the cross-sectional area of equivalent 24 AWG cords, opening duct space for cooling airflow and reducing the force required to route cables through vertical and horizontal managers. Panduit's centered de-embedded plug design and integral pair manager maintain geometry control through the transition from cable to contact, ensuring consistent 250 MHz headroom even under the mechanical stress of high-density patching.

Every UTP28SP10GR cord ships with pre-installed RapidID barcodes printed on both plugs, integrating seamlessly with Panduit's RapidID port mapping software. Scan one end during installation to auto-populate patch panel and switch port documentation, eliminating manual spreadsheet tracking and the transcription errors that follow. The tangle-free latch—a molded overmold design that shields the release tab within a low-profile boot—prevents the snag-and-yank failures common when pulling cords through crowded patch fields; the latch releases cleanly with thumb pressure but won't catch on adjacent cables or cable managers. This feature cuts the time and frustration cost of MACs in mature deployments where every port is occupied and every move requires threading through existing infrastructure. The CM/LSZH jacket meets both NEC Article 800.179 riser requirements and IEC 60754 low-smoke zero-halogen standards, making the cord compliant for both commercial riser spaces and occupied areas where PVC combustion products are prohibited (healthcare, education, transportation hubs). Green jacket color supports TIA-606-B administration standards for horizontal Category 6 links or user-defined color coding schemes in multi-tenant or segmented network deployments.

The UTP28SP10GR exceeds all ANSI/TIA-568.2-D Category 6 performance margins from 1 to 250 MHz and supports IEEE 802.3bt Type 3 (60W) and Type 4 (100W) PoE++ power delivery without derating, making it suitable for high-power endpoint deployments—PTZ cameras, Wi-Fi 6E APs, VoIP conference phones, and PoE-powered switches in cascade topologies. The 28 AWG conductor gauge meets the DC loop resistance limits specified in 802.3bt for 10-meter cords, ensuring full power budget delivery without voltage drop issues. UL Listed under File E129886 and RoHS compliant, the cord meets procurement requirements for US federal and state projects as well as EU RoHS directive compliance for international installs. Packaged individually with 10 cords per carton, the UTP28SP10GR is the field-proven patch cord choice for IT teams managing high-density networks where space, airflow, and documentation precision determine uptime and operational efficiency.
