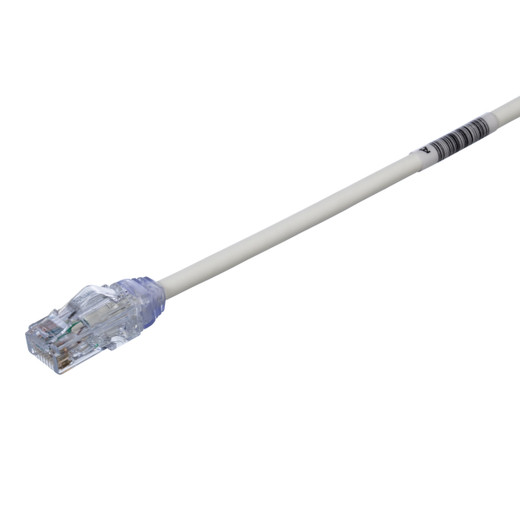

Panduit UTP28X10 Cat 6A 28 AWG UTP Patch Cord, 10 ft
The Panduit UTP28X10 is a 10-foot Cat 6A patch cord engineered with 28 AWG solid copper conductors in a 0.185-inch (4.7mm) diameter cable—40% thinner than standard 24 AWG patch cords. This slim profile delivers full 10GBase-T performance while solving cable-congestion problems in high-density patch panels, top-of-rack switches, and blade-server environments. The tangle-free latch design prevents snags during moves/adds/changes, and RapidID pre-installed barcodes enable one-scan port mapping for documentation and troubleshooting. Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specs to 500 MHz, supports IEEE 802.3bt Type 3/4 PoE in bundled configurations, and carries cULus and CM/LSZH flammability ratings for plenum-equivalent installations.
Key Features
- 28 AWG solid copper construction reduces cable diameter to 4.7mm for 40% better airflow and bend-radius management versus 24 AWG
- 10GBase-T certified to 500 MHz, exceeds TIA-568.2-D Cat 6A and ISO 11801 Class EA electrical performance requirements
- Patented tangle-free latch prevents snags on adjacent cables during rack work, cuts MAC time by eliminating re-terminations from broken latches
- RapidID pre-installed barcodes support Panduit's port-mapping software for automated as-built documentation and DCIM integration
- Centered de-embedded plug with integral pair manager maintains twist geometry to connector pins, verified via 100% wire-map and NEXT testing
- IEEE 802.3bt Type 3/4 PoE compliant in 24-cable bundles (Type 4 delivers 90W to endpoints like PTZ cameras and Wi-Fi 6E APs)
- CM/LSZH dual-rated jacket meets NEC plenum-equivalent requirements and low-smoke/zero-halogen mandates for international data centers
High-density data center and telecom environments generate two chronic problems: airflow restriction from cable bulk, and damaged latches from crowded patch panels. The UTP28X10 addresses both. Its 28 AWG conductors cut cross-sectional area nearly in half compared to 24 AWG, which translates to measurably better cold-aisle airflow when you're running 48-port leaf switches with every port populated. The reduced diameter also means tighter bend radii—critical when dressing cables vertically in zero-U managers or routing around obstacles in confined equipment trays. Panduit's centered de-embedded plug design maintains the required 0.5-inch untwist limit all the way to the contact pins, so you get full 10GBase-T margin even at temperature extremes. Each cord ships with test results for wire map, near-end crosstalk, and return loss, giving you traceable proof of performance for warranty claims or customer audits.
The tangle-free latch is a spring-loaded, low-profile design that sits flush with the plug body. In practice, this means you can extract a cord from a fully populated panel without snagging three neighbors and breaking their latches—a common failure mode that forces re-terminations and extends outage windows. RapidID barcodes are laser-etched onto each connector boot and encode the cable's serial number, length, and performance tier. Scan the barcode with Panduit's mobile app during installation, and the software auto-populates your port map with physical-layer data, MAC addresses (if you integrate with switch configs), and GPS coordinates. This cuts post-install documentation time from hours to minutes and provides a single source of truth for troubleshooting. When a link goes down at 2 AM, you know exactly which cord, which length, and which test report to reference.
PoE deployments benefit from the reduced conductor gauge in counter-intuitive ways. While 28 AWG has higher DC resistance than 24 AWG (28.8 Ω/100m vs. 18.5 Ω/100m), IEEE 802.3bt Type 3 and Type 4 both account for this in their power budgets. The UTP28X10 supports Type 4 (90W) in 24-cable bundles and Type 3 (60W) in 48-cable bundles, which covers every PoE++ camera, access point, and IP phone on the market. The real advantage is thermal: thinner cables shed heat faster, so you avoid the hot-spot buildup that occurs when you pack 48 standard-gauge cords into a vertical manager. Compliance spans ANSI/TIA-1096-A (FCC Part 68 successor), IEC 60603-7 for international interoperability, and RoHS for hazardous-substance restrictions. The CM/LSZH jacket is third-party verified under UL 1863 and CSA C22.2, which satisfies plenum requirements in most AHJs and meets the low-smoke/zero-halogen mandates common in European, Middle Eastern, and APAC data centers where PVC combustion products are regulated.
This cord is purpose-built for data center I/O consolidation, server virtualization fabrics, and backbone aggregation where 10GbE is the baseline and cable management is the bottleneck. The 10-foot length suits typical top-of-rack to server runs, mid-panel cross-connects, and horizontal cable-manager hops without excess slack. Ships in cartons of 10; each cord individually bagged with performance test report and RapidID documentation. Backed by Panduit's manufacturer warranty and eligible for their 25-year application assurance when installed per TIA-568.2-D guidelines.
