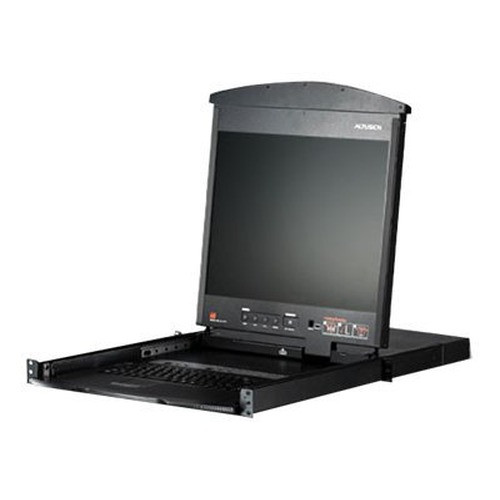

ATEN KL1508AM 17-Inch 8-Port Cat5 LCD KVM Switch
Overview
The ATEN KL1508AM is a rackmount LCD KVM switch that consolidates control of up to 8 servers from a single integrated 17-inch display unit — eliminating the need for a separate console monitor, keyboard, and mouse in the rack. Designed for data center and server room environments where rack space is at a premium, the KL1508AM folds into 1U when not in use and deploys over Cat5 cabling to connected servers. Daisy-chain up to 32 additional compatible ATEN KVM switches to reach a maximum of 256 servers from this single console, making it a practical choice for mid-to-large server deployments that need to scale without adding more KVM hardware per rack. Port switching is handled via OSD menu, hotkey sequences, or front-panel pushbuttons — giving operators flexibility depending on whether they're at the rack or scripting access remotely. The built-in LCD panel delivers up to 1920×1200 at 60 Hz on the second console output, so detail-heavy server UIs render accurately without compression artifacts. Luminance is rated at 250 cd/m², which holds up in bright machine room lighting. Power input is universal at 100–240V AC, 50–60 Hz, 1A — no step-down transformer required for international deployments.
Compatibility
The KL1508AM is part of the ATEN KL-series LCD KVM rackmount family and is compatible with servers and workstations using PS/2, USB, or Serial keyboard and mouse interfaces — covering the full range of legacy and modern server hardware without adapter swaps. Daisy-chain expansion requires compatible ATEN KVM switches in the KL1508A/KL1516A series. The Cat5 infrastructure means existing structured cabling in the rack cabinet can be reused rather than running dedicated KVM coax. Review the KVM switches category for compatible expansion units and accessories.
Installation Notes
Mount in a standard 19-inch rack using the included rack ears — confirm rack depth accommodates the drawer extension before ordering for shallow-depth cabinets. Keyboard and mouse connectivity supports PS/2, USB, and Serial simultaneously, but verify server-side adapter compatibility before deployment. Operating humidity is rated 0–80% RH non-condensing; avoid installations in environments with condensation risk such as poorly climate-controlled server closets. Firmware is field-upgradeable — current release is v1.7.161 (2025-06-17), distributed as kl1508a-kl1516a-v1.7.161.zip. Scan interval for auto-switching is configurable from 1 to 255 seconds via OSD.
