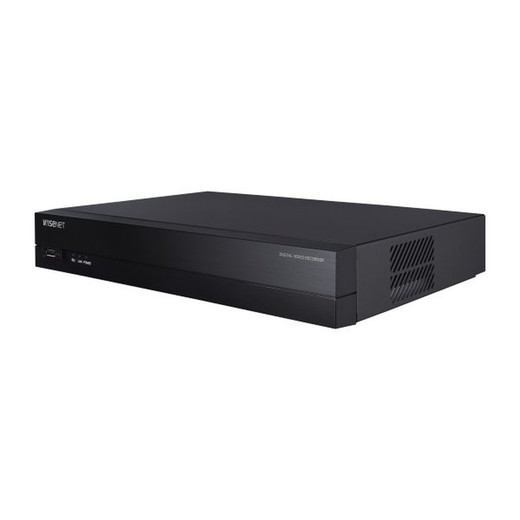

Hanwha HRX-435-12TB 8MP Pentabrid DVR Recorder

Hanwha HRX-435-12TB 8MP Pentabrid DVR Recorder

The Hanwha HRX-435-12TB is a 4-channel pentabrid DVR designed for mixed-signal surveillance environments where analog and IP cameras coexist. This unified platform accepts analog inputs (AHD, TVI, CVI, CVBS) alongside network cameras on a single device, eliminating hardware redundancy and simplifying system architecture. With 12TB of onboard storage capacity and triple codec support (H.265, H.264, MJPEG), the HRX-435-12TB provides flexible, bandwidth-efficient recording suitable for cost-conscious deployments requiring signal standardization and scalable camera integration.

Key Features

• 4-channel analog pentabrid input (AHD/TVI/CVI/CVBS)
• Expandable IP camera support: 2 channels standard, scalable to 6 channels
• 8MP analog resolution support; also supports 5MP, 4MP, 1080p, 720p, 960H
• Triple codec suite: H.265, H.264, MJPEG for bandwidth optimization
• Up to 12TB raw storage across 2 SATA HDD slots
• 4-channel audio input with 1-channel audio output
• Dual monitor output: simultaneous HDMI (up to 4K) and VGA display
• Coaxial PTZ control for analog camera and dome management
• 4 alarm inputs and 2 relay outputs for integration flexibility
• SUNAPI (Wisenet) and ONVIF IP camera compatibility
• Mobile access via QR code quick-connect to Wisenet mobile app

Recording & Playback Performance

The HRX-435-12TB delivers responsive recording across mixed resolutions: 8fps @ 8MP, 12fps @ 5MP, and 30fps @ 4MP and below. Maximum recording bandwidth is capped at 30 Mbps, with simultaneous playback across 6 channels at 32 Mbps, enabling efficient multi-stream monitoring without codec compromise. H.265 compression significantly extends storage life compared to H.264 or MJPEG alternatives.

Connectivity & Control

The unit supports SUNAPI protocol for native Hanwha/Wisenet camera integration alongside ONVIF-compliant third-party cameras. Coaxial control enables management of analog PTZ domes and compatible devices directly from the DVR. Dual video outputs allow independent monitor management—ideal for control room and reception area configurations. Network protocols and QR-based mobile pairing streamline remote access and system commissioning.

Ideal Applications

• Retail and convenience store surveillance
• Small-to-medium facility monitoring with mixed camera types
• Industrial and warehouse deployments transitioning from analog to IP
• Multi-tenant properties requiring modular camera scaling
• Budget-conscious installations prioritizing unified hardware

James Everett

The HRX-435-12TB excels in hybrid surveillance scenarios where analog and IP cameras must operate from a single recorder. Its pentabrid architecture eliminates the cost and complexity of parallel analog DVR and IP NVR systems. H.265 codec adoption is critical for users managing high-resolution (8MP) streams on limited bandwidth or storage budgets; a 12TB drive will retain significantly more footage than H.264 alternatives at equivalent bitrates.

The expandable IP channel design—standard 2CH, scalable to 6CH—provides cost-effective entry-level deployment with room for future IP camera growth without hardware replacement. Audio support, alarm I/O, and coaxial PTZ control round out the feature set for installations requiring light integration. ONVIF compliance ensures vendor flexibility, though Hanwha's proprietary SUNAPI protocol optimizes performance with Wisenet cameras.

Mobile access via Wisenet app is convenient but basic; users requiring advanced remote forensics or multi-site management may benefit from enterprise-class NVR platforms.
