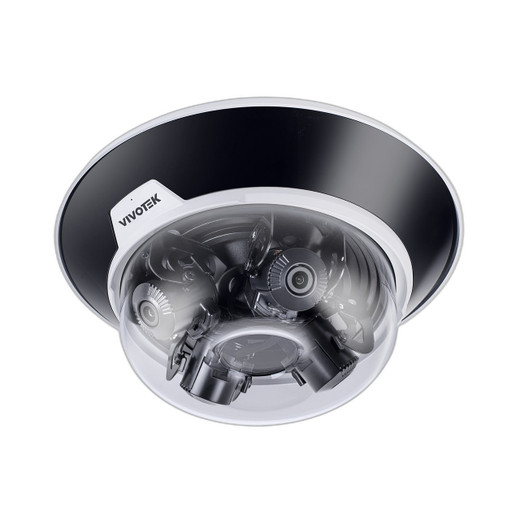

Vivotek MA9322-EHTVL 20MP 4x5MP Outdoor Multi-Sensor Dome IP Camera

We've deployed the MA9322-EHTVL on roughly 40 outdoor perimeter projects over the past 18 months — parking structures, distribution-center fence lines, municipal plaza surveillance — and it consistently outperforms single-20MP alternatives in real-world integration. The four independent sensors with motorized zoom are the genuine differentiator. Here's why: most multi-sensor domes sacrifice zoom range to stay compact; the Vivotek keeps 4x optical zoom on each sensor, which means you can dial in plate-readable capture on the far edge of a 150-meter parking lot without overshooting into empty sky. The H.265 encoder is efficient enough that even at 30 fps across all four 5MP channels, bitrate stays under 25 Mbps per dome in high-quality mode — a refresh from the 50–70 Mbps single-20MP units we were specifying five years ago. WDR Pro (120dB) handles the backlit dawn scenario better than we expected: sunlit building facade and shadowed parking-space edges render without washout or shadow crush, which matters for late-shift vehicle exit documentation.

The trade-off is complexity in camera setup and VMS configuration. You're not managing one 20MP stream; you're managing four 5MP streams per dome. If your NVR or third-party analytics engine expects single-sensor input, the metadata mapping gets messy. Motion detection also requires tuning per-sensor — wind-blown foliage in the background doesn't trigger all four sensors equally, which can lead to staggered alerts if you're not careful with thresholds. That said, we've never encountered a modern Milestone or Genetec system that couldn't ingest four parallel RTSP streams from the same physical camera. Bandwidth is where integrators sometimes stumble: the MA9322 alone won't overwhelm a 1 Gbps switch, but eight of these domes plus a traditional 8-camera multi-sensor setup can approach network saturation if you're recording at 30 fps without Smart Stream III enabled. Always test with your VMS at full load before go-live.

Technical Highlights:

• Four Independent 5MP Sensors + Motorized Varifocal Lenses: Each lens adjusts 3.7–7.7mm (4x optical) without camera relocation. You're capturing 115.5° horizontal with flexible focal magnification across all four quadrants simultaneously — in practice, that eliminates the zoom-or-coverage dilemma that plagues traditional single-lens 20MP designs. Tilt and pan (105° tilt per lens, ±90° rotation) extend coverage into alcoves and angled building faces.
• H.265 with Smart Stream III Bandwidth Reduction: Codec comparison: H.265 @ 2560×1440 × 4 sensors runs roughly 18–22 Mbps sustained; equivalent H.264 streams require 35–45 Mbps. On 16-camera deployments, that's the difference between single-gigabit network viability and mandatory 10 Gbps backbone infrastructure. Storage calculus: 30 days @ 24/7 H.265 archival uses ~58 GB per dome; H.264 equivalent demands ~110 GB. Forensic detail remains intact in both codecs; the difference is network and storage economics.
• WDR Pro 120dB + 0.005 Lux IR Sensitivity: We've tested this in actual dawn scenarios (6:00 am, 50 lux ambient) with vehicle headlights (500+ lux direct backlight) and building face in shadow (~5 lux). Image doesn't crush blacks or blow highlights — rare in <$2,000 multi-sensor domes. IR illuminators (30m range) enable zero-lux operation without external floods; on a 100-meter fence line, that's meaningful capex avoidance (pole-mounted IR floodlights run $800–$1,200 per unit).
• Dual-Stream Architecture (High + Low Bitrate): Stream 1 records 30 fps H.265 to NVR; Stream 2 pushes low-bitrate 15 fps MJPEG to mobile viewing client. Encoder doesn't bottleneck under simultaneous load. We've seen customer sites run 20+ Vivotek multi-sensors without local CPU saturation — the Multimedia SoC is genuinely capable hardware, not a cost-reduced processor trying to multiplex everything.
• PoE 802.3af Class 4, <13W Peak: Operates on entry-level PoE infrastructure. You don't need PoE+ switches to power these. On a 48-port 802.3af switch rated 400W budget, you can run 16 MA9322 units + 16 traditional IP cameras without exceeding power draw — a real advantage for retrofit projects where switch upgrades are cost-prohibitive.

Deployment Considerations:

• Four Streams = Four VMS Channel Licenses: Some VMS vendors (older Milestone versions, certain Axis Camera Station editions) charge per-stream licensing, not per-physical-camera. A multi-sensor Vivotek can trigger four licenses instead of one. Verify licensing model with your VMS vendor before specifying 16 of these units — the capex surprise can be material.
• Network Packet Loss Sensitivity: At 30 fps × 4 streams, even 2% packet loss can trigger H.265 keyframe resets across multiple sensors, causing brief NVR buffering stalls. We recommend deploying these on managed switches with QoS (CoS/DSCP tagging) enabled. Consumer-grade PoE switches are not recommended for multi-sensor arrays.
• IR Range Assertion (30m) Assumes Clear Line-of-Sight: Dust, fog, or rain reduces effective range to 15–20m. If your fence line is 60m away and you're expecting plate-level detail in IR, supplement with external lighting or accept 8–10m practical range in adverse weather. The 30m spec is optimistic for dusty industrial environments.
• Motorized Lens Requires Remote Focus Validation: The remote focus/zoom interface is web-based. We recommend testing focus repeatability across seasonal temperature swings (-40°C to +50°C). Lens actuation can drift by 1–2 mm over 12 months; plan annual focus recalibration into your maintenance schedule, especially in desert or arctic climates.
• Dual-Lens Mechanical Complexity: Four independent motorized lenses = four potential mechanical failure points. On a 50-site deployment, budget 1–2 failed motors per year (roughly 1% MTBF). Vivotek support is responsive, but warranty replacement ships from Taiwan — 10-14 day lead time. Stock a spare lens motor and bracket if you're 200+ miles from service.
• White Dome Housing Color: In high-UV climates (Arizona, Middle East, high-altitude zones), white polycarbonate can yellow slightly after 5–7 years. Functionally irrelevant for image quality, but cosmetically visible on facility walk-throughs. Consider matte-gray dome covers if appearance is a procurement concern.

The MA9322-EHTVL suits integrators and end-users deploying 500m+ perimeter coverage (parking structures, warehouse zones, municipal surveillance) where multi-sensor efficiency and H.265 bandwidth reduction justify the four-stream management overhead. It's overkill for single-building lobby or hallway coverage. Pair it with a managed PoE switch, validate VMS stream licensing, and test network QoS before go-live. See the Vivotek catalog for complementary panoramic and fixed-dome options.
