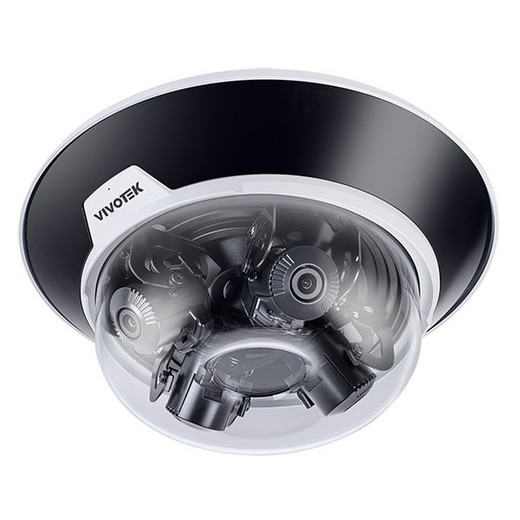

Vivotek MA9322-EHTV-V2 Quad-Sensor IP Camera
The Vivotek MA9322-EHTV-V2 is a quad-sensor IP camera engineered for professional surveillance deployments requiring seamless multi-angle coverage without the complexity and expense of managing multiple single-camera systems. Built on four independent 5MP sensors delivering 2560×1920 resolution at 30 fps, this multi-sensor platform captures comprehensive field-of-view data from a single mounting point, significantly reducing installation labor, cable runs, and integration overhead.
Key Features
- Four independent 5MP sensors—2560×1920 resolution per channel at 30 fps
- Motorized 3.2–7.7mm lens with remote zoom and focus control for field tuning
- Surround-pattern IR illumination effective to 30 meters in complete darkness
- IP66 and IK10 protection ratings with NEMA 4X corrosion resistance for outdoor deployment
- AI-powered motion detection and video content analysis with attribute search
- Hardened security architecture: signed firmware, secure boot, and TPM 2.0
Environmental Durability
The MA9322-EHTV-V2 is built to withstand demanding outdoor environments. IP66 protection ensures complete dust exclusion and resistance to powerful water jets. IK10 impact resistance rating protects against vandalism and high-impact environments. NEMA 4X certification provides additional safeguards in corrosive atmospheric conditions—critical for coastal installations, industrial facilities, and chemical processing zones where standard cameras fail prematurely.
Optical and Imaging Performance
A motorized 3.2–7.7mm lens (2.4x zoom range) allows remote zoom and focus adjustment without field visits, enabling integrators to fine-tune coverage after deployment. Each of the four 5MP sensors operates independently, capturing synchronized 30 fps streams. Surround IR illumination extends effective low-light range to 30 meters, ensuring night-vision performance across all four sensor fields simultaneously.
Intelligent Video Analysis
Integrated AI-powered motion detection and video content analysis (VCA) with attribute search reduce false alarms triggered by weather, lighting changes, or non-security events. Attribute-based search accelerates investigative workflows by enabling security teams to filter for specific object types, behaviors, and characteristics across recorded footage.
Security and Integration
Signed firmware, secure boot, and TPM 2.0 provide hardened protection against unauthorized access and firmware tampering. Professional integrator-grade construction ensures reliable operation in mission-critical surveillance environments where uptime is non-negotiable.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The quad-sensor architecture makes the MA9322-EHTV-V2 ideal for applications requiring 360-degree or multi-directional coverage from a single mounting location. Compared to installing four separate cameras, this approach cuts network bandwidth consumption per mounting point, simplifies power delivery, reduces cabling complexity, and lowers total cost of ownership. The motorized lens enables post-deployment field-of-view adjustments without climbing equipment or return visits.
For integrators managing large outdoor installations—parking structures, perimeter fencing, industrial yards—the multi-sensor consolidation approach delivers meaningful labor and material savings while maintaining professional image quality across all channels.
Applications
- Parking structures and lot surveillance requiring 360-degree coverage
- Industrial perimeter security and facility monitoring
- Outdoor campus and property protection in harsh environments
- Traffic and transportation hub monitoring
- Corrosive-environment installations (chemical plants, coastal facilities)
Available in White.
