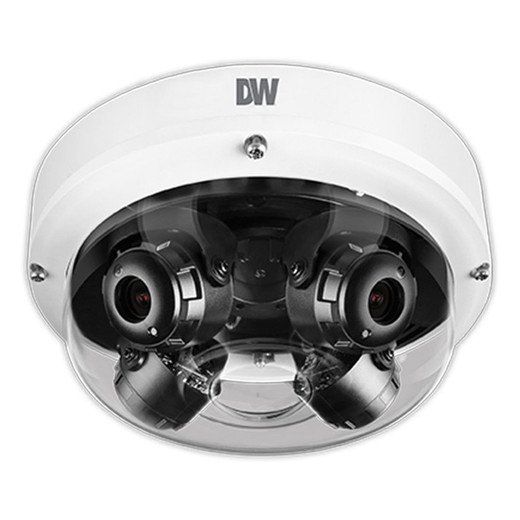

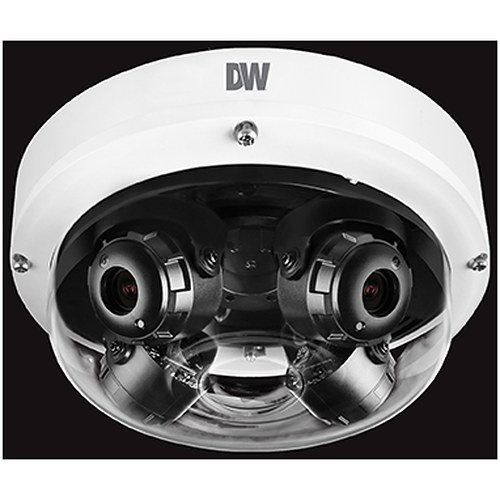

Digital Watchdog DWC-PPVX20WATW 20MP 4x5MP AI Multi-Sensor Outdoor Dome IP Camera

Digital Watchdog DWC-PPVX20WATW 20MP AI Multi-Sensor Outdoor Dome IP Camera

The Digital Watchdog DWC-PPVX20WATW delivers enterprise-grade surveillance with 20-megapixel resolution across four synchronized 5MP sensors in a compact vandal-resistant dome form factor. Engineered for outdoor deployments requiring panoramic coverage and intelligent video analytics, this camera combines advanced AI capabilities with robust environmental durability to protect critical assets in demanding conditions.

Key Features

• 20MP total resolution (4x 5MP CMOS sensors) with 2592 x 1944 native output
• AI-powered video analytics including intrusion detection, line crossing, loitering, object counting, and tailgating
• 360° panoramic dome design with 4x vari-focal lenses (2.8mm–8.0mm)
• Horizontal field of view: 51°–93° per sensor; vertical: 39°–68°
• True WDR 120dB for challenging mixed lighting environments
• Extreme low-light performance: 0.05 lux color / 0.1 lux B/W
• IP67 and IK10 rated for vandalism and weather resistance
• Power over Ethernet (PoE) with high-power injector included
• Dual H.264/H.265 multi-streaming at up to 30fps all resolutions
• Four microSD/SDHC/SDXC slots supporting up to 1TB local storage
• Smart DNR™ 3D noise reduction, auto day/night, de-fog capability
• 16 programmable privacy zones and motion detection
• Audio I/O for two-way communication and alarm integration
• IPv4/Gigabit Ethernet with ONVIF, RTSP, FTP, HTTPS security protocols
• Compatible with DW Spectrum® IPVMS, Milestone, ExacqVision, and standard CMS platforms

Technical Specifications

• Sensors: Four 1/2.8" CMOS sensors, 2592 x 1944 pixels each
• Lens: Vari-focal, 2.8–8.0mm per sensor with motorized zoom and focus
• Shutter: 1/15–1/32000 second with anti-flicker and slow shutter modes
• WDR: True 120dB wide dynamic range
• Night Vision: Auto day/night switching with B/W mode; 0.05 lux minimum illumination (color)
• Streaming: H.264, H.265, MJPEG; dual-stream at variable frame rates and bitrates (100 Kbps–10 Mbps)
• Network: 1Gbps Ethernet, DDNS, DHCP, NTP, SNMPv1/v2/v3, 802.1x, TLS encryption
• Storage: Four microSD slots, FAT32, up to 1TB capacity
• Power: PoE (max 28W @ 2.583A) or DC 12V (max 28W @ 2.33A)
• Operating Range: -20°C to +50°C; 10–90% non-condensing humidity
• Dimensions: 210 x 91.8 mm; 1.9 kg
• Warranty: 5 years

Applications

Ideal for large outdoor perimeters, parking facilities, transportation hubs, critical infrastructure, and campus environments where panoramic coverage and intelligent threat detection are essential. The four-sensor architecture eliminates blind spots while AI analytics reduce false alarms and accelerate response times.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-PPVX20WATW stands out in the multi-sensor category by delivering true 20MP resolution without digital stitching artifacts. The quad-sensor design enables simultaneous monitoring of four distinct zones or a seamless panoramic view, with each sensor operating independently. AI+IVA licenses unlock sophisticated behavioral analytics—object counting, direction detection, tailgating alerts, and logical rule engines—critical for high-security environments.

True WDR 120dB combined with 0.05 lux color sensitivity ensures usable video during dawn/dusk and challenging backlit conditions. Native H.265 codec and dual-streaming reduce bandwidth consumption while maintaining investigative-quality footage. The IP67/IK10 ratings confirm suitability for vandalism-prone outdoor areas, while onboard microSD storage (up to 4TB aggregate) provides failsafe recording independent of network availability.

PoE simplification and ONVIF compliance accelerate integration into existing enterprise VMS infrastructure. Five-year warranty reflects manufacturer confidence in reliability.
