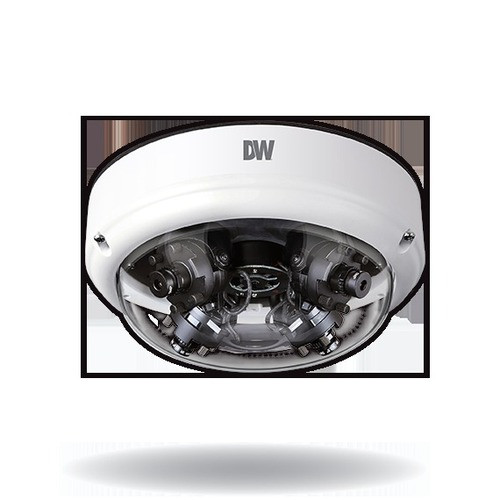

Digital Watchdog DWC-PVX16WW 16MP 4x4MP AI Multi-Sensor Outdoor Dome IP Camera

Digital Watchdog DWC-PVX16WW 16MP AI Multi-Sensor Outdoor Dome IP Camera

The Digital Watchdog DWC-PVX16WW represents a significant advancement in outdoor surveillance technology, combining 16-megapixel resolution with intelligent multi-sensor architecture. This panoramic vandal dome camera delivers comprehensive 360° coverage with exceptional clarity, making it ideal for mission-critical security applications requiring detailed forensic evidence and real-time threat detection.

Key Features

• 16MP resolution from quad 4MP 1/3" CMOS sensors for comprehensive detail capture
• 360° panoramic coverage with selectable focal length options (2.8mm, 4.0mm, 6.0mm combinations)
• True WDR 120dB for excellent performance in high-contrast outdoor lighting conditions
• Advanced AI multi-sensor technology for intelligent detection and analysis
• IP66-rated aluminum die-cast housing rated for extreme weather (-4°F to 122°F)
• PoE powered with included high-power injector (max 18W consumption)
• Auto day/night switching with color (0.41 lux minimum) and B/W modes
• Smart DNR™ 3D digital noise reduction and de-fog capability

Technical Highlights

This camera streams up to 30fps at all resolutions with triple-stream capability supporting different rates and resolutions simultaneously. Video compression utilizes H.264 and MJPEG formats with adjustable bitrate control (100Kbps–10Mbps), enabling flexible bandwidth management across CBR/VBR modes. The 10,752 × 1520 total network resolution accommodates complex surveillance layouts.

Onboard storage supports four microSD/SDHC/SDXC cards (Class 10, up to 1TB each) with FAT32 file system, providing independent backup capability. The camera features 16 programmable privacy masks, mirror/flip capability, and variable shutter speeds (1/15 to 1/32000) with slow-shutter enhancement options. Motion detection, alarm I/O (1 input/1 output), and audio I/O (1 input/1 output with G.711 compression) enable comprehensive event management.

Network connectivity includes 1000Base-T Gigabit Ethernet with comprehensive protocol support: IPv4, DHCP, DNS, DDNS, HTTP/HTTPS, RTSP, RTP, ONVIF, SNMP v1/v2/v3, FTP, and 802.1x authentication. Multi-user authority with digest authentication and IP filtering ensure secure access control.

Applications

• Parking lot and perimeter surveillance
• Industrial facility monitoring
• Building entrance and courtyard coverage
• High-security government and infrastructure sites
• Mixed outdoor/covered environments requiring panoramic detail

Integration & Management

Compatible with any ONVIF-conformant CMS, the camera integrates seamlessly with DW Spectrum® IPVMS, ExacqVision Technologies, and Milestone Systems. Multi-browser support includes Chrome, Firefox, Edge, and Safari across Windows, macOS, and Linux platforms.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-PVX16WW addresses a critical market gap: organizations requiring genuine 360° coverage without blind spots or multiple camera installations. The quad-sensor architecture eliminates the seams and resolution inconsistencies common in panoramic designs. True WDR 120dB combined with 0.41 lux color sensitivity ensures usable imagery during dawn/dusk transitions and in shadowed perimeter areas where competitors struggle.

The AI multi-sensor integration suggests advanced analytics capability for threat detection, though specific algorithm details require vendor consultation. The four independent microSD slots provide redundancy that few enterprise cameras offer at this price point. PoE simplicity—with included high-power injector—accelerates deployment compared to hybrid power systems.

The IP66 rating and aluminum housing withstand coastal salt spray and thermal cycling. Prospective buyers should confirm focal length combinations available for their specific deployment (this SKU offers mixed options), and verify CMS compatibility before purchase.
