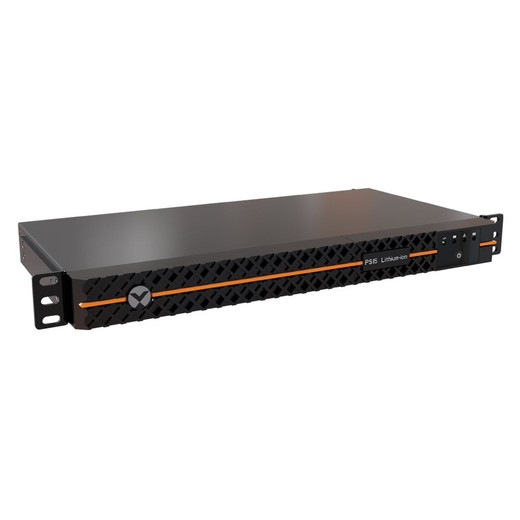

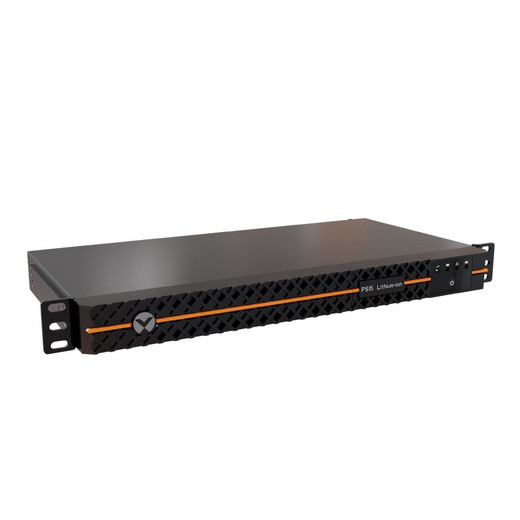

Vertiv PSI5-500SRT1ULI 500VA Lithium-Ion 1U Rack/Tower UPS
Overview
The PSI5-500SRT1ULI is a 500VA/450W line-interactive UPS built around a lithium iron phosphate (LiFePO4) battery — the core reason to choose it over comparably sized lead-acid units. Where a standard VRLA battery needs replacement every 3–5 years, the LiFePO4 chemistry here is rated for 8 to 10 years, cutting total-cost-of-ownership for installations where battery swap labor is expensive or access is inconvenient. At 12.3 lbs and 8.85 inches deep, the PSI5-500SRT1ULI fits in shallow-depth wall-mount enclosures and short network cabinets where a conventional 1U UPS won't clear the door. Pure sine wave output at 98% efficiency keeps sensitive IP cameras, NVRs, access control panels, and VoIP gear running cleanly — equipment with active PFC power supplies can brown-out on simulated sine; this unit eliminates that failure mode. Automatic Voltage Regulation (AVR) corrects input between 75–150VAC without switching to battery, extending runtime reserves for genuine outages. Runtime is 20 minutes at half load (225W) and 9 minutes at full load (450W) — sized for orderly shutdown and data-save cycles, not extended blackout riding.
Compatibility
Designed for rack, tower, or wall-mount deployments across security and IT infrastructure. The four NEMA 5-15R outlets support standard 120VAC loads including IP surveillance NVRs, managed PoE switches, access control head-end hardware, and small server edge nodes. The optional Liebert Intellislot network card (sold separately) adds SNMP, Modbus, and BACnet management — relevant for building automation integrations and remote UPS monitoring via NMS platforms. The USB management port provides local shutdown and monitoring via Vertiv's software. Output voltage is factory-defaulted to 120VAC but is selectable to 100, 110, 115, or 125VAC for equipment with non-standard requirements.
Installation Notes
The 1U chassis converts between rack and tower orientation without tools; the LCD display includes gravity sensing and rotates its readout automatically based on unit orientation. Wall-mount, 2-post, and 4-post rack installations are all supported — verify your rack has 8.85 inches of usable depth before ordering. Input connects via NEMA 5-15P; no hardwire input option. Operating temperature range is 32° to 104°F (0° to 40°C) — suitable for conditioned equipment rooms but not uncontrolled outdoor enclosures. Emergency Power Off (EPO) input is available for installations requiring facility-level shutdown integration. Batteries are hot-swappable, so runtime maintenance does not require load shutdown. The unit carries a 5-year advanced replacement warranty covering both unit and battery — confirm applicability to your deployment region prior to purchase.
