Viking Vandal Resistant Stainless Steel Phone - K-1500-7

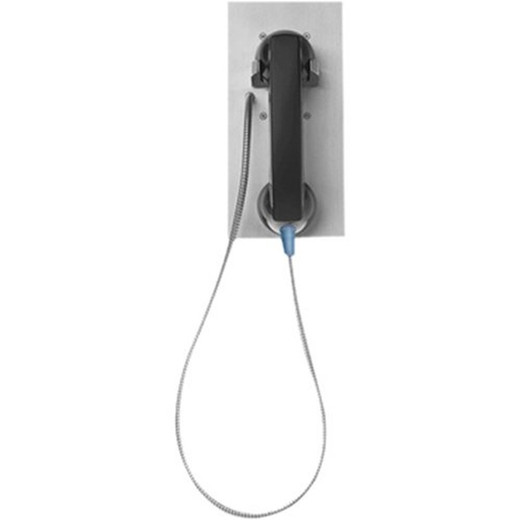

Viking Electronics K-1500-7 Vandal-Resistant Stainless Steel Flush Mount Telephone

Overview

The Viking Electronics K-1500-7 is a flush-mount, telephone-line-powered stainless steel panel phone built for environments where durability and tamper resistance aren't optional — correctional facilities, industrial sites, secure lobbies, and parking structures. It draws power directly from the phone line at 20V DC/18mA minimum, which means zero separate power runs and no power supply to maintain or replace. If you're looking at the Viking Electronics intercom and phone line, the K-1500-7 sits in the K-1500 Series alongside variants tuned for emergency phone enclosures and hearing-assist applications — all sharing the same flush-mount philosophy but with different feature sets depending on the installation context.

Key Features

• 14-gauge 316 stainless steel panel: 316 stainless is the marine-grade alloy — it resists chlorides, salt air, and caustic cleaning chemicals better than the 304 you'll find on lower-cost alternatives. At 14 gauge, the panel won't flex or dent under repeated impact. For correctional or industrial use, that matters more than it sounds.
• Telephone line powered (20V DC/18mA minimum): No 110V outlet, no PoE injector, no separate transformer. Power comes off the phone line itself. That simplifies conduit runs dramatically and eliminates a failure point — there's no power supply to fail during an emergency. Verify your CO or PBX line delivers at least 20V DC at the jack before commissioning.
• Flush mount form factor (5.0" x 10.0" x 4.0"): At 4 inches of depth behind the wall surface, plan your rough-in box accordingly — this isn't a shallow-depth install. The flush mount puts the panel face flush with the wall, which removes the protruding ledge that vandals typically grab or pry. Pair it with a solid backing plate and the unit becomes very difficult to defeat without tools.
• 36-inch handset cord: Long enough for a standing adult to use comfortably without pulling the handset taut, and short enough that it can't be used as a ligature risk in most supervised environments. For correctional applications specifically, verify this against your facility's security classification requirements.
• 2 gel-filled butt connectors included: The gel-filled connectors seal the wire splice against moisture intrusion — relevant if the unit is installed near a wash-down area, exterior vestibule, or anywhere condensation is a concern. This is a detail that matters in industrial installs where moisture routinely wicks into electrical boxes.
• Operating temperature 32°F to 90°F (0°C to 32°C): This is an indoor-rated unit. The upper limit of 90°F means it's not suitable for unconditioned mechanical rooms in summer climates or exterior installation without an enclosure. If your deployment is outdoors or in an unconditioned space, look at other models in the intercom and phone category with extended temperature ratings.
• Humidity tolerance 5%–95% non-condensing: Handles humid environments like locker rooms or covered loading docks — as long as condensation isn't forming directly on the unit. Non-condensing is the operative qualifier; steam rooms or exterior installs in freeze-thaw climates are out of scope.
• Shipping weight 3.7 lbs (1.7 kg): Heavier than a typical plastic handset station — the stainless construction contributes to the mass that makes this panel difficult to remove without tools. Wall anchoring into studs or solid masonry is recommended; drywall anchors alone won't hold up to determined tampering.

Integration & Compatibility

The K-1500-7 connects to any standard analog phone line — CO lines, PBX analog extensions, or analog ports on a VoIP gateway. No special programming is required beyond assigning a directory number at your PBX or gateway. It operates as a standard single-line analog phone. For facilities running a PoE-based network infrastructure, note that this unit requires an analog line, not an IP connection — budget for an ATA or analog port on your IP-PBX if you're migrating to VoIP. There is no dial pad on this unit; it is a dedicated-connection (ringdown) or operator-connected phone, depending on how it's programmed at the PBX. Confirm your PBX supports hotline/ringdown configuration if that's your intended use case. For installations requiring hearing-assist or ADA compliance, the K-1500 Series includes the K-1500-EHFA variant — a different model with distinct dimensions and power requirements. The K-1500-7 itself does not include amplification features, so evaluate your facility's ADA obligations before specifying.

Frequently Asked Questions

Q: Does the K-1500-7 require a separate power supply?

A: No. The K-1500-7 is powered entirely by the telephone line, requiring a minimum of 20V DC at 18mA from the connected analog line. No external power supply or outlet is needed.

Q: Can the K-1500-7 be installed outdoors?

A: The K-1500-7 is rated for operating temperatures of 32°F to 90°F and humidity of 5%–95% non-condensing, which makes it suitable for interior or sheltered installations. It is not specified for direct outdoor exposure or unconditioned spaces subject to freezing or temperature extremes beyond 90°F.

Q: Does the K-1500-7 have a dial pad?

A: No. The K-1500-7 does not include a dial pad. It is designed as a dedicated-connection phone, typically configured as a hotline or ringdown line at the PBX. Confirm hotline/ringdown support with your phone system before deploying.

Q: What type of stainless steel is used on the K-1500-7 panel?

A: The panel is constructed from 14-gauge 316 stainless steel. 316 is the marine-grade alloy with superior resistance to chlorides and caustic cleaning agents compared to 304 stainless.

Q: How deep is the K-1500-7 rough-in box requirement?

A: The K-1500-7 measures 5.0" x 10.0" x 4.0" (W x H x D). The 4-inch depth behind the wall surface must be accounted for in your rough-in box or wall cavity. Plan conduit entries and backing accordingly before drywall.

Q: What does the K-1500-7 ship with for wiring connections?

A: The unit includes two gel-filled butt connectors for splicing the telephone line wiring. The gel fill provides moisture resistance at the splice point.

James Everett

The detail I always flag when specifying the K-1500-7 is that 20V DC/18mA minimum line power requirement — it sounds routine until you're commissioning on a PBX analog port that's been configured to current-limit during off-hook, or on an older hybrid system where the line voltage drops below 20V under load. Test your line voltage at the jack before you close the wall. That one check prevents a call-back after the panel is already mudded in.

Technical Highlights:

• 316 stainless steel, 14 gauge: The 316 alloy is what separates this from generic vandal-resistant panels — chloride resistance is the real story in correctional, industrial, and coastal installations where 304 would show corrosion within a year or two of installation.
• Flush mount at 5.0" x 10.0" x 4.0": The 4-inch depth is the spec most installers underestimate. Standard single-gang boxes won't accommodate this — you need a dedicated rough-in box or sufficient wall cavity depth. Get this confirmed on the drawing before framing is closed.
• Line-powered at 20V DC/18mA minimum: Eliminating the power supply isn't just convenience — it removes a maintenance item and a failure mode. In emergency communication applications, fewer components between the wall and dial tone means higher reliability over a 10-20 year service life.

Deployment Considerations:

• The 90°F upper operating limit means this unit is not appropriate for unconditioned equipment rooms, hot-aisle locations, or any exterior installation without an enclosure rated for the ambient temperature range of your site.
• No dial pad is included — this is a ringdown or operator-transfer phone by design. If your facility needs station-to-station dialing capability, you need a different model in the K-1500 Series or a different product family entirely. Confirm your PBX hotline/ringdown configuration before the pre-wire stage.

The K-1500-7 is a strong fit for correctional facility common areas, secure industrial lobbies, and parking structure emergency stations where the combination of 316 stainless construction and line-only power keeps both the maintenance burden and the attack surface low. It's not the right call for exterior kiosks or any environment pushing past 90°F — for those, evaluate enclosure-rated variants with wider thermal specs.
