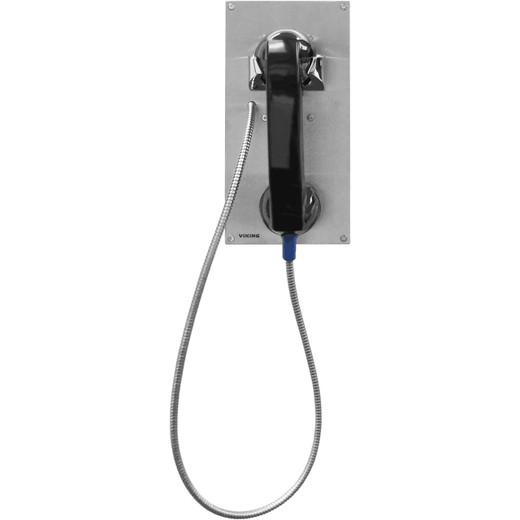

Viking Electronics K-1900-7 Hot-Line Stainless Steel Panel Phone

Overview

The Viking Electronics K-1900-7 is a hardwired hot-line panel phone designed for high-abuse, outdoor, and industrial environments where a standard telephone has no business being installed. Built around a 14-gauge 316 marine-grade stainless steel front panel — 0.105 inches thick — this unit is engineered to take physical punishment without giving up call reliability. Lift the handset and it auto-dials a pre-programmed number: no keypad to vandalize, no menu to navigate. That single-action call path is exactly what you want at a gate, dock entrance, emergency station, or secure facility perimeter. For a broader look at Viking's intercom and panel phone line, browse the Viking Electronics catalog.

The K-1900-7 (often searched as K 1900 7) runs on standard telephone line power — 20V DC at 18mA minimum — so there is no separate power supply to provision. It supports both Touch Tone and Pulse dialing and stores up to 32 programmable digits in non-volatile memory, meaning a power interruption will not wipe your dialed destination. For facilities planning access control and intercom infrastructure, see our intercom and entry systems category.

Key Features

• 14-Gauge 316 Marine-Grade Stainless Steel Panel, 0.105 in. Thick: 316 stainless is the alloy specified for coastal and chemical-wash environments — it resists chloride pitting that degrades 304 stainless over time. At 0.105 inches, the panel deflects casual impact without denting. Permanent laser-etched graphics eliminate the peeling decals that make cheaper panels look worn within a year.
• IP66 Ingress Protection: IP66 means the enclosure is fully dust-tight and rated against powerful water jets from any direction. That covers rain, hose-down washdowns, and pressure cleaning on loading docks or processing areas. It does not cover submersion — if the installation point floods, you need IP67 or higher.
• Operating Range -30°F to 140°F (-34°C to 60°C): Most surface-mount phones are rated to 32°F or 0°C at best. This unit's -30°F floor makes it a viable fit for unheated parking structures, cold-storage dock doors, and northern outdoor gate stations where temperatures drop well below freezing.
• Armored Handset Cable, 12 in. to 57 in. Reach: The armored cable resists cutting and intentional yanking. The 12-to-57-inch adjustment range means it fits both flush-panel installations at standard height and rough-in boxes in non-standard locations without having to order a custom cable length.
• Heavy-Duty Metal Hook Switch and All-Metal Cradle: Plastic hook switches fail under repeated abuse — a metal switch assembly handles the repetitive slam-and-lift cycles typical at high-traffic entry points. The all-metal cradle keeps the handset captured even when users are rough with it.
• 32-Digit Non-Volatile Memory: The destination number survives power loss because it is stored in non-volatile memory, not battery-backed RAM. No battery to replace, no risk of losing programming during an outage. 32 digits is enough for extension numbers, access codes, or long-distance dial strings.
• Touch Tone or Pulse Dialing: Pulse dialing compatibility keeps the unit usable on legacy PBX systems or older analog lines that do not fully support DTMF — a real consideration in industrial and government facilities that have not migrated all analog infrastructure.
• Telephone Line Powered (20V DC / 18mA Minimum): The phone draws its operating power from the telephone line itself. No AC outlet, no PoE switch, no power supply run to the enclosure. That simplifies rough-in considerably at remote gate stations and perimeter call points.

Integration and Compatibility

The K-1900-7 connects to any standard analog POTS line or analog port on a PBX or VoIP gateway that presents a standard loop-start interface. It is not a SIP or VoIP device — for IP network deployments, Viking offers the K-1900-7-IP series. If your facility runs a hybrid analog/IP telephony environment, confirm the gateway or ATA provides adequate loop current (20V DC at 18mA minimum) at the panel location; long cable runs with undersized wire gauge can drop loop voltage below the operating floor. Pair the K-1900-7 with a compatible access control system for gate-release integration, or deploy alongside a managed PoE switch infrastructure if you are running IP devices in the same enclosure cluster. The phone's compact footprint — 5.0 in. x 10.0 in. x 5.1 in. standalone, 5.0 in. x 10.0 in. x 5.2 in. with rough-in box — fits standard single-gang rough-in boxes and custom surface-mount enclosures.

Frequently Asked Questions

Q: Does the K-1900-7 work with VoIP or SIP phone systems?

A: The K-1900-7 is an analog hot-line panel phone. It connects to a standard analog POTS line or an analog port on a PBX or VoIP gateway (ATA). For native SIP/VoIP deployments, Viking offers the K-1900-7-IP series instead.

Q: What is the warranty on the K-1900-7?

A: Viking Electronics provides a Two Year Limited warranty on the K-1900-7.

Q: Will the K-1900-7 hold its programmed number through a power outage?

A: Yes. The 32-digit destination number is stored in non-volatile memory, so it is retained without battery backup even if line power is interrupted.

Q: Is the K-1900-7 suitable for coastal or salt-air environments?

A: The front panel uses 14-gauge 316 marine-grade stainless steel, which is the alloy grade specified for coastal and salt-spray applications. Combined with IP66 sealing against water jets and dust, it is appropriate for coastal perimeter and marine dock installations.

Q: What are the dimensions of the K-1900-7, and does it include a rough-in box?

A: The phone itself measures 5.0 in. x 10.0 in. x 5.1 in. With the rough-in box, depth increases by 0.1 in. to 5.2 in. Check with your supplier whether a rough-in box is included or sold separately.

Q: What is the operating temperature range for the K-1900-7?

A: The K-1900-7 is rated from -30°F to 140°F (-34°C to 60°C), making it suitable for unheated outdoor enclosures, cold-storage dock doors, and northern-climate gate stations.
