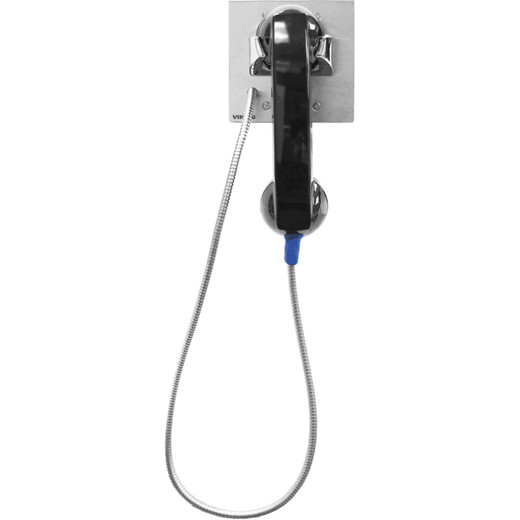

Viking Electronics K-1500-6A Vandal Resistant Stainless Steel Panel Phone
Overview
The Viking Electronics K-1500-6A is a flush-mount panel phone built specifically for high-abuse environments — correctional facilities, parking structures, industrial plants, and institutional lobbies where standard phones last weeks, not years. The panel is fabricated from 14-gauge 304 stainless steel, the same grade used in food-processing equipment and architectural hardware, giving it a resistance to both physical attack and corrosion that painted steel or ABS plastic panels simply can't match. It draws power directly from the telephone line (20V DC at 18mA minimum), so there is no separate power supply to wire, no transformer to fail, and no electrical permit required just to commission a phone station.
At 4.56" x 4.5" x 2.75", the K-1500-6A mounts to a standard double-gang electrical box — the same rough-in your electricians already know. If your building is pre-wired for double-gang boxes, installation is straightforward: land the pair of conductors, secure the panel, done. That single-source power and standard-box mounting combination keeps labor costs predictable in multi-station deployments.
For integrators browsing the Viking Electronics catalog, the K-1500-6A sits in the K-1500 Series, which covers several panel phone configurations sharing the same stainless housing and mounting footprint.
Key Features
- 14-Gauge 304 Stainless Steel Panel: Heavier-gauge stainless resists denting and prying better than 16- or 18-gauge alternatives. 304 alloy holds up in humid or coastal environments without surface rust compromising the enclosure seal — a practical choice for covered outdoor locations or high-humidity indoor sites like laundry facilities or pool areas.
- Telephone Line Powered (20V DC / 18mA Minimum): The phone draws everything it needs from the existing pair — no 120V outlet, no PoE switch, no UPS required at the station. That eliminates a separate power run and simplifies both permitting and maintenance. Verify your PBX or line card delivers at least 20V DC at the station under load; long cable runs with thin conductors can drop voltage below the minimum.
- Flush Mount to Standard Double-Gang Box: Rough-in uses the same double-gang box specified for standard receptacles, meaning your electrical contractor works from familiar drawings. No custom back-boxes, no special adapters. This matters on retrofit jobs where walls are already closed.
- 34" to 37" Handset Cord: The coiled cord extends to 34–37 inches — long enough for comfortable use at a wall-height station without creating excess slack that gets yanked or vandalized. Fixed-length cords on panel phones are a deliberate anti-tamper measure; a longer cord is both a liability and a replacement target in high-abuse settings.
- Compact Footprint (4.56" x 4.5" x 2.75"): The shallow 2.75" depth fits inside a standard double-gang mud ring without protruding awkwardly. In corridor installations where ADA clearance is a concern, a shallow-profile phone is easier to position within compliant reach ranges.
- Operating Range 32°F to 90°F (0°C to 32°C): Designed for conditioned or semi-conditioned spaces — covered entryways, interior lobbies, climate-controlled industrial floors. This is not a product rated for unheated outdoor enclosures in cold climates; if your installation sees sub-freezing temperatures, a heated enclosure or a different product family is required.
- Humidity Rating 5% to 95% Non-Condensing: Handles the humidity swings typical of laundry rooms, pool facilities, and coastal lobby environments without corrosion or electrical failure, provided condensation does not form directly on the circuit. Non-condensing is the key qualifier — do not install in freeze-thaw cycles where condensation is likely.
Integration and Compatibility
The K-1500-6A connects to any standard analog telephone line or PBX analog station port — the same interface used by legacy key systems, VoIP ATAs, and most on-premise PBX platforms. No special configuration is required at the phone itself; dial-plan behavior is controlled at the PBX. For entry system and intercom deployments, the analog interface makes it straightforward to assign a dedicated extension, configure call-forward-on-no-answer to a security desk, or integrate with auto-attendant prompts.
Because this is a passive analog device, it also pairs cleanly with ATA adapters on SIP-based systems — Cisco, Grandstream, Poly, and similar. Verify your ATA delivers the 20V DC / 18mA minimum the phone requires at the station end after accounting for cable resistance. For multi-station deployments, consult your power and wiring planning resources to confirm conductor gauge over longer runs. The vandal-resistant panel pairs naturally with access control infrastructure where a dedicated emergency or intercom phone is required at a controlled entry point.
Frequently Asked Questions
Q: What type of telephone line does the K-1500-6A require?
A: The K-1500-6A is telephone line powered and connects to any standard analog telephone line or PBX analog station port. It requires a minimum of 20V DC at 18mA at the station end of the cable run.
Q: Can the K-1500-6A be installed outdoors?
A: The operating temperature range is 32°F to 90°F (0°C to 32°C) and humidity is rated to 95% non-condensing. It is suited for covered, semi-conditioned locations but is not rated for unheated outdoor enclosures in climates that drop below freezing or experience condensation cycles.
Q: What electrical box does the K-1500-6A mount to?
A: It flush-mounts to a standard double-gang electrical box — the same rough-in used for standard receptacles. No custom back-boxes or special adapters are needed.
Q: What is the handset cord length on the K-1500-6A?
A: The coiled handset cord extends 34 to 37 inches (86 cm to 94 cm).
Q: What material is the panel made from?
A: The panel is 14-gauge 304 stainless steel — a heavier gauge chosen specifically for vandal resistance in high-abuse installations.
Q: Does the K-1500-6A require a separate power supply?
A: No. The phone is entirely telephone line powered, drawing 20V DC at 18mA minimum from the connected analog line. No external power supply, transformer, or electrical outlet is required at the station.
The K-1500-6A (often searched as K 1500 6A) is one of those products that earns its keep by being almost impossible to break and trivially simple to install. The 14-gauge 304 stainless panel is the spec I point to first — at that gauge and alloy, you're looking at a panel that resists the kind of prying and impact that defeats thinner steel enclosures, and 304 stainless won't surface-rust in the humid or coastal environments where painted housings eventually fail.
Technical Highlights:
- Telephone Line Powered (20V DC / 18mA): No outlet, no transformer, no UPS at the station. Power comes from the analog pair, which also means the phone survives a building power outage as long as the PBX or PSTN line stays up — a genuine advantage in emergency-phone applications.
- Flush Mount / Double-Gang Box: Rough-in is identical to a standard receptacle box. On retrofit jobs with closed walls, that means no custom cutout, no special mud ring — your electrician works from the existing box and your integrator lands the pair. Total station install time is measured in minutes, not hours.
- Compact Dimensions (4.56" x 4.5" x 2.75"): The shallow depth keeps the phone within ADA-friendly reach-range positioning in corridor and lobby installs without requiring a recessed pocket or special wall treatment.
Deployment Considerations:
- Confirm your PBX line card or ATA delivers at least 20V DC at 18mA measured at the station end — not at the head end. On long runs with 24 AWG or thinner conductors, voltage drop can push the station below the minimum and cause unreliable operation or no ring.
- The 32°F lower operating limit is the hard stop for unheated locations. Do not spec this phone for exterior kiosks, parking structure stairwells in northern climates, or any location that sees sub-freezing ambient temps — even intermittently. A heated enclosure changes that calculation, but adds cost and a separate power circuit.
Best fit for this unit: correctional facility corridors, institutional lobby emergency stations, covered industrial plant entry points, or any multi-station deployment where a facilities team needs a phone that survives daily abuse without requiring regular replacement. The analog interface keeps it compatible with virtually any existing PBX or ATA without a special provisioning workflow.
