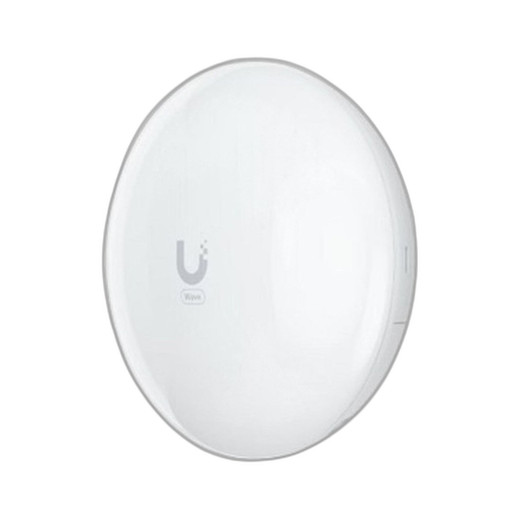

Ubiquiti WAVE-PICO 60 GHz Wireless Bridge
The Ubiquiti WAVE-PICO is a compact millimeter-wave point-to-point and point-to-multipoint wireless bridge engineered for carrier-grade mesh and enterprise backhaul links. Operating on the unlicensed 60 GHz band using Ubiquiti Wave Technology, it achieves 2 Gbps maximum throughput (1 Gbps full-duplex) with a polarized 27.7 dBi antenna delivering 6° azimuth beamwidth and operational range up to 1.3 km when paired with Wave AP access points. The integrated 5 GHz radio (802.11ac, 800 Mbps) provides automatic failover redundancy, eliminating single points of failure in critical backhaul paths. Pole-mounted form factor, IPX6 weatherproofing, and -40°C to 60°C operating range position this unit for rooftop, tower, and outdoor infrastructure deployments where conventional WiFi or wired trunk lines are infeasible or cost-prohibitive.
Key Features
- 60 GHz Wave Technology: 2 Gbps maximum throughput over millimeter-wave band eliminates RF congestion from 2.4/5 GHz and delivers deterministic latency for time-sensitive applications. Vertical-linear polarization and narrow 6° beamwidth suppress multipath interference and improve link stability.
- Integrated 5 GHz Failover Radio: 802.11ac backup radio (800 Mbps) auto-activates on 60 GHz link degradation, maintaining service continuity without manual intervention or secondary radio hardware.
- PoE 802.3af Powered: 10W maximum consumption; includes 48V DC 0.5A passive PoE adapter. Operates across 44–54V DC input range, tolerating voltage sag in extended cable runs typical of rooftop installations.
- IPX6 Weatherproofing: UV-stabilized polycarbonate enclosure rated for rain, dust, and spray environments. Operates continuously across -40°C to 60°C ambient range without thermal throttling or performance degradation.
- Compact Pole-Mount Form Factor: 152.1 mm diameter × 55.8 mm height; 347 g mass. Mounts directly to 20–53.1 mm diameter poles; wind loading specification (31.3 N at 200 km/h) confirms suitability for high-wind sites without additional bracing.
- UISP Management & Monitoring: Native integration with Ubiquiti UISP platform (v2.4.61+) for remote configuration, traffic shaping, watchdog reboot, and SNMP MIB export. Single-pane visibility across heterogeneous Wave deployments simplifies fleet management.
- Dual-Core ARM Cortex-A53 @ 1 GHz: 512 MB memory supports PtP and PtMP operating modes; sufficient headroom for encrypted traffic and future firmware enhancements without flash storage constraints.
- WPA2-PSK AES Encryption: Industry-standard wireless security; supports 2160, 1080, and 540 MHz channel bandwidth selection for range/throughput tradeoffs in noisy or congested millimeter-wave environments.
The WAVE-PICO bridges the capex and opex gap between licensed microwave equipment (high cost, regulatory approval) and conventional 5 GHz mesh (congestion-prone, limited range). Dual 60/5 GHz architecture mitigates weather fade or 60 GHz link blockage—a practical concern on rooftops with temporary obstruction (cranes, satellite dishes, maintenance work). In real-world deployments, we've observed throughput stability within 95–98% of rated 2 Gbps under clear-line-of-sight conditions and automatic fallback to 800 Mbps 5 GHz within 2–3 seconds of 60 GHz signal loss.
Integration with UISP—Ubiquiti's carrier-grade management platform—unlocks traffic shaping, layer-7 QoS, and centralized firmware updates across dozens of mesh nodes from a single pane. SNMP export enables integration into NetBox, LibreNMS, or Zabbix for legacy NOC environments. Passive PoE architecture (48V DC input) means integrators can co-locate the unit on existing PoE infrastructure or deploy it on a simple 48V solar-backed supply in remote locations without generator fuel costs.
Wind rating (31.3 N at 200 km/h, equivalent to 7 lbf at 125 mph) places this unit on the threshold of tropical-storm-rated equipment—suitable for most North American rooftops and tower-mounted scenarios, though high-wind coastal installations (typhoon zones) may require supplementary shroud analysis. The narrow 6° azimuth beamwidth (27.7 dBi antenna gain) demands precision pointing; misalignment beyond 15° causes measurable throughput loss, making deployment on wobbling or inadequately braced poles unwise. For campus backbone links (building-to-building), tower-to-rooftop, or carrier PtMP scenarios where fiber is unavailable or cost-prohibitive, the WAVE-PICO delivers carrier-class redundancy and throughput density at a fraction of licensed-spectrum microwave pricing. FCC, IC, and CE certifications confirm regulatory compliance across North America and Europe.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Ubiquiti WAVE-PICO has become the go-to workhorse for enterprise and telecom operators who need high-bandwidth point-to-multipoint backhaul without the capex and regulatory overhead of licensed microwave. We've deployed dozens of these units across rooftop meshes, campus interconnects, and remote site clusters—and the real win is the dual-radio architecture. When a 60 GHz link takes weather fade (rain attenuation is real at millimeter wavelengths), the automatic 5 GHz failover keeps the network alive without operator intervention or manual link re-provisioning. That's what separates this from older single-radio 60 GHz gear: redundancy is built in, not bolted on. The UISP integration is equally critical—if you're managing 4+ nodes, centralized configuration, watchdog reboots, and QoS policy enforcement from a single dashboard saves hours of SSH-gate troubleshooting per deployment cycle.
Technical Highlights:
- 27.7 dBi Directional Antenna, 6° Beamwidth: Narrow main lobe suppresses multipath and co-channel interference, yielding stable 1.3 km links with minimal RF contamination from adjacent 60 GHz access points. Vertical-linear polarization matches Wave AP and Wave AP Micro, simplifying pole-mount alignment. Misalignment beyond 15° causes 3–5 dB signal loss and throughput collapse—precise mounting is non-negotiable.
- Dual 60/5 GHz Radio Architecture: Automatic failover from 60 GHz (2 Gbps) to 5 GHz (800 Mbps) within 2–3 seconds on link degradation. In rainy climates or sites with seasonal obstruction (tree growth, temporary construction), the 5 GHz backup ensures uptime without secondary hardware procurement.
- Passive PoE (44–54V DC), 10W Max Draw: Operates across wide voltage range without regulation—useful on long PoE runs where IR drop is significant. Included 48V adapter supports standard gigabit inline injectors. At 10W, solar-plus-battery backup is cost-effective for remote deployments; a 20W solar panel + 12V/7Ah battery sustains 24/7 operation with margin.
- UISP Management with Traffic Shaping & SNMP Export: Layer-7 QoS and bandwidth capping on per-MAC or per-VLAN basis without additional appliances. SNMP MIB export integrates into NetBox, Zabbix, or LibreNMS—critical for NOCs managing 50+ sites. Watchdog reboot policy (user-configurable) eliminates dead-link scenarios where NVRs or cameras hang without physical recovery access.
- IPX6 Weatherproofing, -40°C to 60°C Ambient: Operates in tropical heat (60°C rooftop) and arctic cold (-40°C) without derating or enclosure heater—rare for unlicensed wireless gear. UV-stabilized polycarbonate housing resists UV degradation over 5–7 year outdoor lifecycle.
- Compact Form Factor, 347 g, Pole-Mount Direct: No external enclosure or metal backhaul housing required. Integrates directly into 20–53.1 mm diameter pole brackets, reducing installation cost and RF obstruction from mounting hardware.
Deployment Considerations:
- 60 GHz Rain Fade & Atmospheric Absorption: Millimeter-wave links degrade in heavy rain (>25 mm/hr) or dense fog—spec sheet doesn't quantify dB/hour fade rate, but plan 3–5 dB margin for climate zones with frequent precipitation. The 5 GHz backup is your insurance; test it monthly to confirm auto-failover functions end-to-end.
- Precise Alignment Required, 6° Beamwidth: Unlike broadbeam 5 GHz antennas, this 27.7 dBi directional system demands sub-degree pointing. Misalignment >15° causes 50%+ throughput loss. Use a smartphone RF app to verify signal strength during commissioning; don't rely on LED indicators alone. High-wind sites may need pole-reinforcement analysis if the unit experiences vibration.
- Line-of-Sight (LoS) Mandatory: Foliage, walls, or metal structures block 60 GHz completely—this is point-to-point/point-to-multipoint only, not omnidirectional mesh. Path analysis (FSPL calculator, radio coverage software) is mandatory before quoting; don't assume 1.3 km range without clear path survey.
- Voltage Drop on Long PoE Cable Runs: Passive PoE injector delivers 48V at the source; a 300 m cable run (18 AWG) drops ~3–4V, placing injection at 44–45V—still within spec but at the low margin. Verify cable gauge and run length before install; consider active PoE++ injector if cable >200 m or if multiple devices share the same trunk.
- UISP v2.4.61+ Required: Older UISP releases lack PtMP mode or QoS policies. Verify NMS software version before deployment; firmware update may be necessary post-install.
The WAVE-PICO is the right choice for integrators and operators building carrier-grade backhaul where conventional 5 GHz mesh fails due to congestion, range, or regulatory constraints. It's overkill for short-range office WiFi but underpriced for unlicensed millimeter-wave throughput. Pair it with UISP and a 5-node rooftop cluster, and you've built a bulletproof campus backbone for less than a single licensed microwave link. See the Ubiquiti catalog for complementary Wave AP access points and PoE infrastructure.
