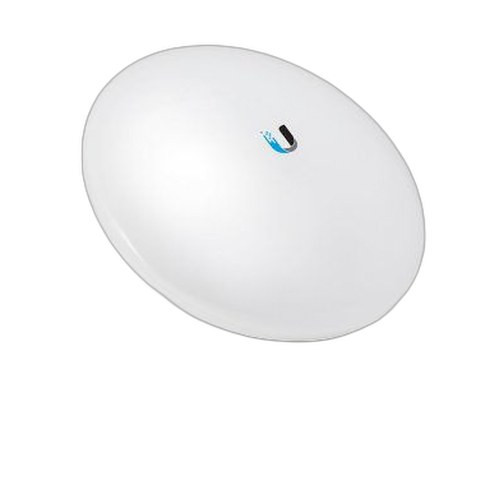

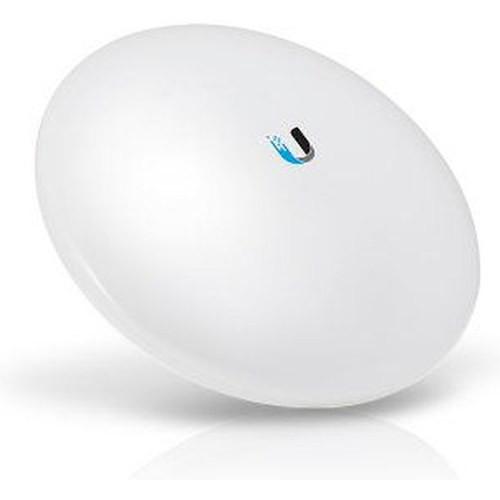

Ubiquiti NBE-5AC-GEN2 5GHz Wireless Bridge
Overview
The Ubiquiti NBE-5AC-GEN2 is a compact 5GHz airMAX ac wireless bridge designed for point-to-point and point-to-multipoint deployments where traditional antenna installations face space or weight constraints. Operating on the 5GHz band with airMAX technology, the NBE-5AC-GEN2 (often searched as NBE 5AC GEN2) delivers 450+ Mbps throughput over extended distances, making it suitable for connecting remote network segments, bridging buildings across campus, or extending coverage in sparse infrastructure environments. The unit operates on 48V Power over Ethernet (PoE), eliminating the need for separate power infrastructure at the access point location—a significant advantage when running cable to rooftops, poles, or distributed outdoor locations.
Key Features
- 450+ Mbps Throughput: Sufficient to backhaul multiple concurrent CCTV feeds, VoIP traffic, and data without bottlenecking upstream network segments. Scales well for small branch offices or distributed warehouse nodes.
- 5GHz airMAX ac Technology: Proprietary interference resistance and range optimization reduce multipath distortion and co-channel conflicts—critical in metropolitan or dense RF environments where 2.4GHz is saturated.
- PoE Power (48V): Single cable run supplies both power and data. No separate PSU required at the far end; integrates directly with PoE injectors or PoE-capable switches, reducing installation cost and complexity.
- Lightweight Nanobeam Form Factor (2.4 lbs): Mounts on poles, walls, or rooftop structures without structural reinforcement in most cases. Minimizes visual footprint while maintaining electrical performance for backbone and extension links.
- Bridge Mode Operation: Transparent Layer 2 forwarding allows the NBE-5AC-GEN2 to function as a wireless extension of an existing subnet. Standard RJ45 Ethernet handoff integrates directly into network infrastructure without complex routing or subnet planning.
- airOS Web Management Interface: Configuration, monitoring, and firmware updates accessible from any networked device. Built-in signal strength metrics and alignment tools optimize link performance before final mounting, reducing commissioning time.
- VLAN Tagging & QoS: Configurable traffic prioritization aligns with upstream network policies. Allows CCTV, VoIP, or critical data to be isolated and prioritized across the wireless link.
- Outdoor-Rated Design: Manufactured for outdoor installation. Verify local radio regulations and frequency availability before deployment—regulatory compliance is your responsibility.
Integration & Compatibility
The NBE-5AC-GEN2 ships ready for 48V PoE injection. Standard midspan injectors or PoE-capable network switches supply power and data over a single cable run. Alignment procedures leverage the airOS signal strength metrics and real-time alignment tools to optimize link performance before final mounting. Bridge mode operation permits the device to function transparently within an existing network without requiring separate IP subnetting or complex routing configuration. This approach simplifies deployment in facilities where rapid provisioning is critical.
Deployment Scenarios
The NBE-5AC-GEN2 addresses three primary use cases: campus backbone links between buildings, last-mile connectivity to remote facilities, and redundant wireless paths for critical network segments. In metropolitan deployments, the narrow beam pattern reduces multipath interference and co-channel conflicts compared to omnidirectional or sectoral antennas. For rural or distributed sites, the 450+ Mbps throughput supports multiple user connections, CCTV feeds, or backhaul aggregation without degrading upstream traffic. When integrated with network video recorders or VMS infrastructure, the NBE-5AC-GEN2 provides reliable wireless backbone for centralized monitoring and recording across geographically separated camera clusters.
Installation Considerations
Alignment is critical: use the airOS signal strength metrics to optimize azimuth and elevation before final mounting. The nanobeam architecture requires line-of-sight or near line-of-sight paths; obstructions degrade performance significantly. Plan cable runs from the PoE source to the mounting location; longer runs may require PoE+ (802.3at) injectors if other high-power devices share the switch. Document frequency coordination if deploying multiple bridges in close proximity to avoid self-interference.
Frequently Asked Questions
Q: What's the maximum range of the NBE-5AC-GEN2?
A: Range depends on line-of-sight conditions, antenna gain, and RF environment. The 5GHz airMAX ac band with directional beam pattern supports extended distances (often several kilometers in clear line-of-sight). Test actual site conditions before final commitment.
Q: Can I use the NBE-5AC-GEN2 for point-to-multipoint (hub-and-spoke) deployments?
A: Yes. The NBE-5AC-GEN2 supports point-to-multipoint topologies where one unit acts as the hub and multiple units connect as remote clients. Configure through the airOS interface.
Q: What power injector do I need?
A: Standard 48V PoE midspan injectors or PoE-capable switches rated for 48V passive PoE work. Confirm your switch or injector supports 48V PoE before ordering to avoid compatibility issues.
Q: Is the NBE-5AC-GEN2 weather-sealed?
A: Yes, it's designed for outdoor installation. However, verify local radio regulations and frequency availability in your region before deploying—regulatory compliance is your responsibility as the integrator.
Q: Can I upgrade the firmware remotely?
A: Yes, firmware updates are deployed through the airOS web interface over the network. This simplifies maintenance across multiple units without physical site visits.
Q: Does the NBE-5AC-GEN2 work with existing Ubiquiti access points?
A: The NBE-5AC-GEN2 is a bridge, not an access point. It's designed for point-to-point or point-to-multipoint backbone links. Pair it with Ubiquiti access points or switches to create end-user connectivity at remote sites.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The NBE-5AC-GEN2 is a solid workhorse for wireless backbone deployments where you need 450+ Mbps throughput without lugging dual AC modules or heavy dish antennas to a rooftop. The nanobeam form factor and 2.4 lb weight matter when you're routing cable through conduit or mounting on a thin pole—no structural reinforcement, no callbacks to bolt down heavier gear. PoE operation cuts installation cost significantly; you're running one cable instead of power and Ethernet separately.
Technical Highlights:
- 5GHz airMAX ac + Directional Beam: In dense RF environments (campus quads, industrial parks), the narrow beam pattern and proprietary airMAX protocol reject multipath and co-channel interference far better than 2.4GHz or omnidirectional antennas. You'll see real range and stability gains in urban deployments.
- 450+ Mbps Throughput: Enough for multiple simultaneous CCTV streams, backhaul aggregation, or small branch office traffic. Not enterprise spine capacity, but solid for secondary links or remote site connectivity. Verify actual link capacity in your RF environment before committing critical traffic.
- 48V PoE Integration: Single cable run from a PoE injector or switch eliminates separate power infrastructure at the far end. Reduces deployment time and simplifies troubleshooting—if the link is up, power and data are both present.
Deployment Considerations:
- Line-of-Sight Dependency: The NBE-5AC-GEN2 requires line-of-sight or near line-of-sight paths. Trees, buildings, or metal structures will degrade performance significantly. Site-survey the path before committing; don't rely on vendor range claims alone.
- Regulatory Compliance: 5GHz frequencies vary by region and country. Verify that the NBE-5AC-GEN2 is certified for your local spectrum and frequency band before deployment. Unauthorized operation invites FCC or equivalent enforcement action.
- Alignment Criticality: The narrow beam pattern demands precise azimuth and elevation alignment. Use the airOS signal strength metrics and physical alignment tools; even a few degrees off-axis can cut throughput. Budget time and rigor in the commissioning phase.
Deploy the NBE-5AC-GEN2 for building-to-building campus backbone links, warehouse-to-office connectivity, or remote site backhaul where you need reliability without bulk. Pair it with a PoE switch and standard midspan injectors, and you've got a low-touch wireless extension of your wired network.
