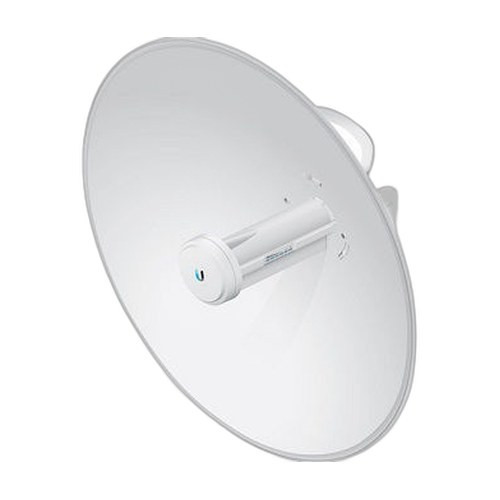

Ubiquiti PBE-5AC-GEN2 5GHz Wireless Bridge
Overview
The Ubiquiti PBE-5AC-GEN2 is a compact 5 GHz wireless bridge designed for point-to-point and point-to-multipoint backhaul in enterprise and service provider networks. Operating on the 802.11ac standard, the PBE-5AC-GEN2 delivers consistent throughput above 450 Mbps — sufficient for dual-camera remote sites or light branch office traffic — with the power efficiency and operational simplicity required for rooftop, tower, and difficult-to-wire locations. The compact form factor weighs just 8.1 pounds, a critical factor when mounting to existing mast infrastructure that may already be at structural capacity.
Key Features
- 802.11ac 5 GHz Operation: Operates exclusively in the 5 GHz band, which delivers lower latency and reduced interference compared to 2.4 GHz alternatives — a meaningful advantage in dense urban or multi-tenant tower environments where dozens of wireless networks may overlap.
- 450+ Mbps Throughput: Rated sustained throughput above 450 Mbps meets the demands of dual IP camera feeds, file-based backups, or VoIP traffic across remote locations without choking on peak loads. Real-world deployment typically settles around 400–430 Mbps accounting for environmental attenuation and overhead.
- Passive PoE++ (802.3bt Compliant): Powers exclusively from 48V passive PoE input, eliminating the need for separate AC or DC power runs to the bridge endpoint. On towers where power distribution is already at capacity, this single-cable deployment model cuts installation cost and complexity by half.
- Lightweight Mounting: At 8.1 pounds, the bridge introduces minimal structural load, making it practical for retrofit installations or capacity-constrained sites where heavier equipment would require additional reinforcement.
- Dual Management Interfaces: Web-based GUI for rapid single-unit configuration, plus command-line interface (CLI) for scripted provisioning and bulk firmware updates across dozens of bridges in large deployments. This flexibility supports both small installations and service provider networks scaling to hundreds of sites.
- Transparent Layer 2 Bridging: The PBE-5AC-GEN2 bridges Ethernet frames without routing or NAT, meaning connected devices on either end of the link treat the wireless segment as a normal wired network — no additional network configuration, VLAN tagging, or subnet planning required.
Deployment Scenarios
The PBE-5AC-GEN2 is well-suited for connecting physically separated networks where fiber or copper backbone installation is cost-prohibitive. Common applications include bridging remote buildings on a campus, extending coverage across industrial warehouses, linking satellite office locations to primary data centers, and serving as high-capacity backhaul for distributed wireless mesh networks. The 5 GHz band and 450+ Mbps throughput make it the standard choice for mission-critical backhaul traffic in locations where fiber is years away.
Network Integration & Compatibility
Integration requires only Ethernet cabling to end devices and a PoE injector or PoE-enabled switch port capable of delivering 802.3bt power. The unit arrives pre-configured and ready for immediate deployment with integrated antenna. Alignment is typically accomplished using visual line-of-sight aiming tools or RF survey software; no special calibration or RF expertise is required. For larger deployments, the CLI interface allows template-based bulk configuration and scripted firmware updates across multiple units, reducing labor on service provider backbone projects. Consult a network integration guide if planning to bridge multiple camera feeds across this link to ensure PoE budgeting at both the source and remote end.
Installation Notes
Each unit ships ready for deployment with integrated antenna and PoE power input. The compact bridge housing permits mounting on standard pole clamps and wall brackets without additional reinforcement. Ensure line-of-sight between transmit and receive antennas; obstruction by large metal or concrete structures will degrade throughput. For redundancy in mission-critical applications, consider deploying a secondary bridge on a different frequency band to achieve true path diversity.
Frequently Asked Questions
Q: What is the real-world throughput of the PBE-5AC-GEN2?
A: Rated at 450+ Mbps, real-world throughput typically ranges from 400–430 Mbps after accounting for protocol overhead and environmental attenuation (rain, distance, minor obstructions). This is sufficient for dual-camera remote sites or light branch office backhaul.
Q: Does the PBE-5AC-GEN2 require a separate power supply?
A: No. It operates exclusively on 48V passive PoE input (802.3at/802.3bt compliant), requiring only a PoE injector or PoE-enabled switch port. No separate AC or DC power run is needed.
Q: Can I deploy the PBE-5AC-GEN2 indoors?
A: Yes, though it is designed for outdoor use. For indoor deployments, ensure adequate ventilation and avoid installation directly above sensitive equipment, as the radio may interfere with co-located wireless devices if placed too closely.
Q: What is the maximum distance over which the PBE-5AC-GEN2 can operate?
A: Distance depends on antenna gain, line-of-sight clearance, and environmental conditions (rain, humidity, RF interference). Typical point-to-point links operate reliably at 5–15 kilometers with clear line-of-sight and directional antennas.
Q: Does the PBE-5AC-GEN2 support redundancy or dual-link failover?
A: The unit itself does not implement redundancy protocols. To achieve redundancy, deploy a secondary bridge on a different frequency band or from a different vendor, then manage failover at the network/routing layer using standard Layer 3 protocols (OSPF, BGP, or static routing).
Q: Is the PBE-5AC-GEN2 compatible with older 802.11n clients?
A: Yes. The PBE-5AC-GEN2 operates in 802.11ac mode but supports backward compatibility with 802.11n devices. However, clients will negotiate at the lowest common standard, potentially reducing throughput. For best performance, ensure all endpoints support 802.11ac.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
The PBE-5AC-GEN2 remains a reliable workhorse for outdoor point-to-point bridging where 450+ Mbps meets the throughput demand. I continue to specify it in dual-link redundancy configurations at remote facilities, paired with a secondary bridge on a different frequency band for true path diversity. The passive PoE++ implementation is particularly valuable on towers where power distribution is already at capacity — eliminating a separate power run cuts installation labor and infrastructure cost measurably.
Technical Highlights:
- 802.11ac 5 GHz: Lower latency and reduced interference compared to 2.4 GHz, a meaningful advantage in dense tower or urban multi-tenant environments where dozens of wireless networks may overlap.
- 450+ Mbps Throughput: Real-world deployments typically deliver 400–430 Mbps accounting for overhead and attenuation — sufficient for dual-camera remote sites or light branch office backhaul without choking on peak loads.
- Passive PoE++ (48V 802.3bt): Single-cable power input eliminates separate AC or DC runs; on capacity-constrained towers, this halves installation cost and complexity.
- 8.1 lb Weight: Minimal structural load permits retrofit mounting to existing mast infrastructure without reinforcement — a practical consideration on sites where heavier equipment would trigger engineer review and delay.
Deployment Considerations:
- Ensure clear line-of-sight between transmit and receive antennas; obstruction by large metal or concrete structures will degrade throughput by 20–40% depending on density.
- Confirm that all end-point devices support 802.11ac; older 802.11n clients will negotiate at lower speeds, potentially cutting effective throughput to 150–200 Mbps if legacy hardware is present.
- For mission-critical deployments, the PBE-5AC-GEN2 does not implement internal redundancy — you must deploy a secondary bridge on a different frequency band and manage failover at the routing layer (OSPF or BGP).
Specify the PBE-5AC-GEN2 for remote building-to-building campus bridges, rooftop backhaul for distributed mesh networks, and satellite office links where fiber installation is years away. It excels in dual-link redundancy topologies where a second unit on a different band provides path diversity without additional power infrastructure.
