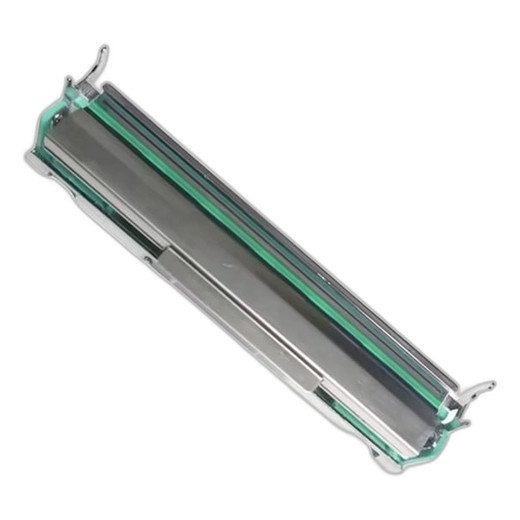

TSC 98-0260044-20LF Printer Head Assembly
The TSC 98-0260044-20LF is an OEM printer head assembly designed for the TSC TDP-247 thermal printer platform. This replacement component is engineered to restore full print capability in thermal label and ticket printing systems. The assembly integrates with wired connectivity infrastructure and is equipped with an LCD display for operator interface and diagnostics.
Overview
The 98-0260044-20LF printer head assembly serves as a direct replacement component for TDP-247 printers in warehouse, logistics, retail, and industrial label printing environments. As a thermal printer head, this assembly is critical to maintaining print quality, resolution, and throughput in high-volume labeling operations. The wired connection model ensures reliable communication with host systems and eliminates wireless connectivity variables in production environments.
Key Features
- OEM Replacement Component: Factory-engineered assembly for TDP-247 printer compatibility and guaranteed fit
- Thermal Print Technology: Optimized for direct thermal and thermal transfer printing methods
- Wired Connectivity: Hardwired integration with TDP-247 host printer for stable, uninterrupted operation
- LCD Display Integration: Built-in operator interface for status monitoring, error codes, and basic configuration
- Industrial-Grade Design: Constructed for continuous-duty warehouse and logistics printing applications
- Easy Installation: Plug-and-play replacement that maintains existing printer configuration and network settings
Integration & Compatibility
The 98-0260044-20LF is designed exclusively for TSC TDP-247 thermal printers and will not function as a standalone device. Installation requires the host TDP-247 printer unit. The wired connection design integrates with existing Ethernet or serial infrastructure without requiring additional network configuration. The LCD display communicates directly with the printer controller, providing real-time status feedback during label production cycles.
When installed in a TDP-247 system, the head assembly immediately restores print capability without requiring firmware updates or recalibration of existing label templates. Users can resume printing from saved job queues without interruption.
Typical Applications
This assembly is deployed in distribution centers, manufacturing facilities, retail shipping departments, and logistics operations where TDP-247 printers handle high-volume barcode, shipping label, and product labeling tasks. The replacement assembly extends printer life and avoids downtime associated with sending the entire unit for depot service.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I've specified the TSC 98-0260044-20LF as a replacement component in multiple warehouse refresh projects. This OEM head assembly is the correct solution when TDP-247 print quality degrades or head failures occur—and it's significantly more cost-effective than full printer replacement or depot repairs.
Technical Highlights:
- Direct Compatibility: The 98-0260044-20LF maintains exact electrical and mechanical specifications of the original TDP-247 head, eliminating compatibility risk
- LCD Display Retained: Operators continue to use familiar printer status interface without retraining
- Wired Architecture: No wireless failover concerns—hardwired connection ensures production stability
Deployment Considerations:
- Verify that the host TDP-247 printer unit is functional before ordering this assembly; a failed printer controller will not be resolved by head replacement alone
- Keep the head assembly in its protective packaging until installation to prevent thermal element damage or dust contamination
- Order as soon as head degradation is detected (faded or banded print) to avoid extended downtime
The 98-0260044-20LF is a straightforward, reliable component choice for TDP-247 environments. Stock this part in your logistics infrastructure if you operate multiple TDP-247 units—the ROI on preventive spare inventory is strong.
