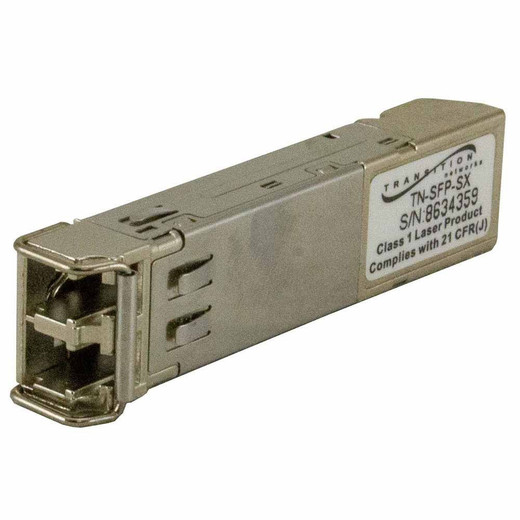

Transition Networks TN-SFP-SX Gigabit Multimode SFP Transceiver
Overview
The Transition Networks TN-SFP-SX is a 1 GbE SFP (small form-factor pluggable) transceiver designed for multimode fiber connectivity in enterprise, data center, and telecom environments. This hot-swappable module installs directly into any compatible SFP slot on switches, routers, and network appliances without downtime or power disruption — a practical advantage when you need to swap or upgrade fiber links on live infrastructure. The TN-SFP-SX supports multimode distances typical of campus LANs and localized data center links, making it a cost-effective choice for short-to-medium reach deployments where singlemode transceivers aren't necessary. TAA compliance means it qualifies for U.S. federal and GSA procurement cycles.
Key Features
- Gigabit Throughput (1 GbE): Delivers full 1,000 Mbps line rate — sufficient for aggregated access layers, redundant fiber links, and non-blocking uplinks in mid-scale networks. No bottleneck for typical campus or small data center backhaul.
- Multimode Fiber (62.5/50 µm): Operates over standard multimode fiber runs up to distances suitable for intra-building or campus-wide deployments. Multimode costs less than singlemode cable and requires less stringent connector cleanliness, reducing operational overhead on large fiber projects.
- Hot-Swappable SFP Form Factor: Slide in or out without powering down the switch or router. Useful for maintenance windows, troubleshooting, and fiber plant upgrades on production networks — no scheduled outage required.
- LC Duplex Connector: Industry-standard LC connectors ensure broad fiber infrastructure compatibility. Most data center and enterprise fiber plants already terminate to LC, eliminating connector adapter costs.
- TAA Compliance: Meets Trade Agreements Act requirements, opening access to federal and GSA schedule procurement channels — essential if your organization sells to government or works on federal contracts.
- DDM (Digital Diagnostic Monitoring): Built-in diagnostics report optical power levels, temperature, and transceiver health via standard SNMP MIBs. Enables proactive optical-link monitoring and faster troubleshooting when signal margins degrade.
Integration & Compatibility
The TN-SFP-SX plugs into any standard SFP slot across Transition Networks switches and routers, as well as third-party equipment (Cisco, Juniper, Arista, Dell, HPE, etc.) that supports standard SFP modules and multimode LC connectors. Verify your switch or router's SFP compatibility matrix if deploying into existing infrastructure; most modern network devices accept standard SFP transceivers. DDM telemetry integrates with any SNMP-compliant NMS, allowing centralized optical monitoring alongside your network performance dashboard.
When to Choose a Different Model
If your deployment exceeds typical multimode distances (roughly 2 km / 6,560 ft) or spans multiple buildings far apart, consider a singlemode SFP variant from the same family — higher cost per transceiver, but unlimited distance within reason. If you require 10 GbE or higher speeds, step up to a 10G SFP+ or QSFP+ module. For short copper runs under 300 feet, a passive DAC (direct-attach copper) cable may be simpler and cheaper than fiber.
Frequently Asked Questions
Q: Is the TN-SFP-SX compatible with my existing Transition Networks switch?
A: Yes, it works with any Transition Networks switch or router equipped with standard SFP slots. Cross-compatibility with third-party gear (Cisco, Dell, Juniper, etc.) is also typical for standard SFP modules, but always verify your specific equipment's SFP compatibility list before ordering.
Q: What is the maximum fiber distance for the TN-SFP-SX?
A: For 62.5 µm multimode fiber at 1 GbE, effective reach is approximately 2 km (6,560 ft). At 50 µm multimode, distances extend slightly further. Consult detailed optical specifications in the datasheet for precise attenuation budgets.
Q: Can I mix this SFP with singlemode fiber?
A: No. The TN-SFP-SX is designed for multimode fiber only. Pairing it with singlemode cable will result in excessive loss and link failure. Use a singlemode SFP transceiver if your fiber plant is singlemode.
Q: Does DDM require special software or licensing?
A: No. DDM telemetry is built into the module and reports via standard SNMP. Any NMS that supports optical transceiver monitoring (Nagios, Zabbix, Solarwinds, etc.) can pull diagnostics without additional licensing.
Q: Is the TN-SFP-SX (often searched as TN SFP SX) usable in hot-pluggable slots?
A: Yes. The hot-swappable design lets you insert or remove the module while the switch remains powered and operational. Extremely useful for rapid fiber troubleshooting and non-disruptive upgrades.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the TN-SFP-SX across several campus network upgrades, and the hot-swappable design saves real time when you're moving fiber links between switches or troubleshooting questionable runs. At 1 GbE multimode, you're looking at a straightforward, cost-effective transceiver that doesn't require exotic fiber handling — it works with standard campus fiber plant infrastructure that most enterprises already have in place.
Technical Highlights:
- Multimode 62.5/50 µm Support: Reach of approximately 2 km means you can span most building-to-building links in a typical campus without singlemode cost. Real cost savings on fiber and termination labor.
- DDM (Digital Diagnostic Monitoring): Built-in optical telemetry reports power, temperature, and bias current over SNMP — lets you spot degrading fiber links before they fail, reducing unplanned downtime.
- Hot-Swappable Form Factor: Zero downtime for transceiver swaps. In a production environment, that eliminates the need to schedule maintenance windows just to replace a module.
Deployment Considerations:
- Multimode is distance-limited compared to singlemode. If your campus spans more than 2 km or you need singlemode performance, you'll want a different transceiver — don't force multimode into a singlemode fiber plant.
- TAA compliance is a hard requirement for federal and GSA contracts. If you're selling to government, this transceiver checks the box. If not, it's a nice-to-have but not a blocker.
Position the TN-SFP-SX for mid-scale campus networks, data center access-layer fiber uplinks, and any deployment where your fiber runs are under 2 km and you want operational flexibility from hot-swappable modules. It's a straightforward, reliable choice when you're not pushing distance or speed limits.
