Transition Networks TN-GLC-SX-MM SFP Gigabit Multimode Transceiver
Overview

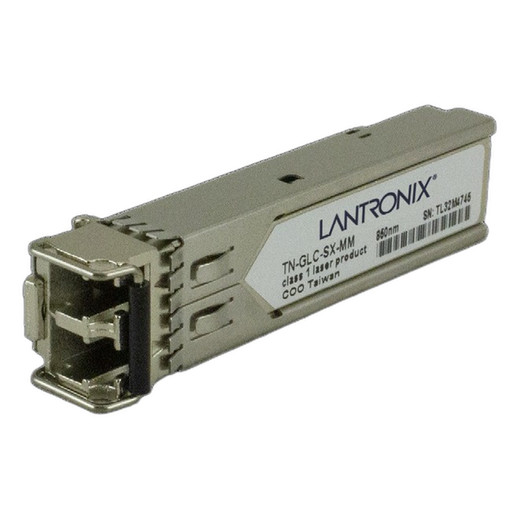

The Transition Networks TN-GLC-SX-MM is a hot-swappable SFP (mini-GBIC) transceiver module that delivers 1 Gigabit Ethernet connectivity over multimode fiber cabling. Rated for maximum transfer distances up to 1800 feet (550 meters), this module integrates into any switch or network infrastructure equipped with an SFP slot. TAA compliant, it's purpose-built for data center, campus, and branch office fiber backbone deployments where cost-effective short-to-medium range connectivity matters. The compact form factor — smaller than a USB stick — means you can pack spare units without consuming rack space.
Key Features
- 1000Base-SX Standard: Operates over industry-standard 50/125µm and 62.5/125µm multimode fiber cabling. This matters because existing fiber plants in most campuses and data centers run multimode, not single-mode — you won't need to replace backbone cabling to deploy these transceivers.
- 1800-Foot Range: Covers the majority of building-to-building and data center floor-to-floor connections without repeaters. Longer distances demand single-mode variants, but for typical enterprise spans this distance is sufficient and costs significantly less than single-mode optics.
- Universal SFP Compatibility: Plugs into any switch port equipped with an SFP module slot — Cisco, Juniper, Arista, Dell, HPE, Huawei, and legacy platforms. No driver installation, no configuration beyond basic port settings. You're buying a passive optical interface, not locked-in hardware.
- Duplex LC Connectors: Standard push-pull LC connectors minimize confusion during field installations. Widely stocked patch cords and adapter kits reduce lead time for fiber plant work.
- Hot-Swappable Design: Install or replace without powering down the switch. Useful during scheduled maintenance or when provisioning additional links on live infrastructure.
- TAA Compliance: Meets Trade Agreements Act requirements for federal and government contractors. Eliminates compliance friction for agencies and regulated environments.
Integration and Compatibility
The TN-GLC-SX-MM integrates into managed and unmanaged switching infrastructure with SFP module slots. Verify that your switch supports the 1000Base-SX (850nm) standard — most modern switches do, but legacy platforms occasionally shipped with single-mode-only SFP slots. Pair with standard multimode patch cords (OM2, OM3, or OM4 rated) and standard LC adapters. No special configuration required on the switch side; optical transceivers operate at Layer 1 and require no VMS, NVR, or management software integration.
When to Choose a Different Model
If you need coverage beyond 1800 feet on a single link, or if your backbone already runs single-mode fiber, consider the equivalent single-mode (1000Base-LX) variant. Single-mode optics cost more per unit but support distances up to 6.2 miles (10 km) with the same footprint. If your switch lacks SFP slots and uses only RJ-45 copper ports, a media converter (copper to fiber) may be more practical than upgrading switch hardware.
Frequently Asked Questions
Q: Will the TN-GLC-SX-MM work in any SFP slot?
A: Yes, provided the switch supports 1000Base-SX (850nm multimode). Nearly all modern switches do. Older switches sometimes shipped with LX-only (single-mode) SFP slots; verify your hardware specs before ordering.
Q: What fiber types work with the TN-GLC-SX-MM?
A: 50/125µm (OM2, OM3, OM4) and 62.5/125µm multimode fiber. Do not use single-mode fiber; the wavelength and receiver sensitivity will not match.
Q: Can I mix transceivers from different vendors in the same switch?
A: Yes. SFP transceivers are vendor-agnostic at the physical layer. You can pair a Transition Networks TN-GLC-SX-MM with transceivers from other manufacturers in the same switch without operational issues.
Q: Is the TN-GLC-SX-MM (often searched as TN GLC SX MM) hot-swappable?
A: Yes. You can insert or remove the module while the switch is powered and passing traffic on other ports. Disconnect the fiber patch cord first to avoid optical damage.
Q: What is the warranty on the TN-GLC-SX-MM?
A: Refer to the manufacturer warranty statement in the product documentation or contact your distributor for warranty terms specific to your purchase date and region.
Q: Does the TN-GLC-SX-MM require any driver or firmware updates?
A: No. Optical transceivers operate passively at the physical layer and do not require software drivers, firmware, or management system integration.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Transition Networks TN-GLC-SX-MM is a straightforward optical workhorse — no complexity, no surprises, and that's exactly the point. When you're connecting data center floors or extending a campus backbone over multimode fiber, you want passive optics that deliver 1 Gigabit without negotiation. At 1800 feet maximum range, the TN-GLC-SX-MM covers 95% of typical enterprise horizontal runs, and at true multimode pricing, it's the cost-effective choice compared to single-mode alternatives.
Technical Highlights:
- 1000Base-SX, 850nm Standard: Ubiquitous across enterprise switches and data center fabrics. You're not betting on emerging standards — this is mature, proven optics with decades of field history. Works with OM2, OM3, and OM4 multimode fiber, so you can deploy on existing cabling without plant replacement.
- 1800-Foot Range (550m): Sufficient for building-to-building and multi-floor data center deployments. Beyond that distance, single-mode (LX variant) becomes necessary, but multimode optics cost roughly 30–40% less per unit for short-range links.
- Universal SFP Slot Compatibility: Install in Cisco, Juniper, Arista, Dell, HPE, Huawei, or any standards-compliant switch without vendor lock-in. No driver, no license, no management overhead — Layer 1 physics do the work.
Deployment Considerations:
- Verify your switch supports 1000Base-SX before ordering. A small minority of legacy switches shipped with LX-only (single-mode) SFP slots — check the datasheet or call the switch vendor if uncertain.
- Patch cord quality matters. Use OM3 or OM4 multimode jumpers rated for LC connectors. Cheap or mismatched cabling can introduce reflections and signal loss on otherwise clean links. Budget for proper fiber plant materials.
- Hot-swap capability is real, but always remove the fiber patch cord before inserting or extracting the module. Optical alignment during insertion can briefly cause transient signal loss on other ports if the switch's SFP slot has aggressive LED feedback.
Deploy the TN-GLC-SX-MM in campus fiber backbones, data center inter-floor links, or any short-to-medium range multimode deployment where cost and simplicity outweigh distance requirements. It's the correct pick for infrastructure teams who need to scale Ethernet over fiber without enterprise-grade single-mode spend.
