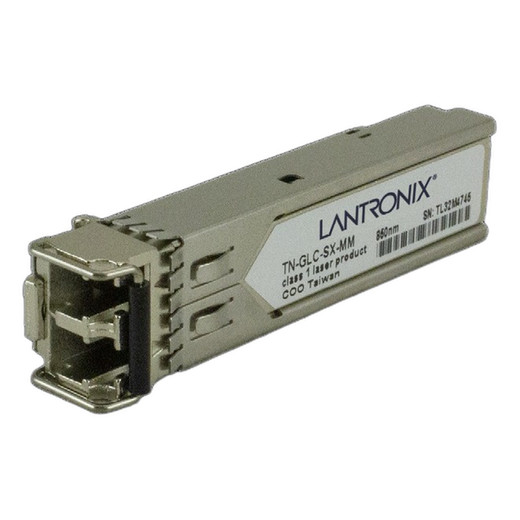

Transition Networks TN-GLC-SX-MM-RGD Gigabit SFP Module
Overview
The Transition Networks TN-GLC-SX-MM-RGD is a Gigabit SFP transceiver module engineered for managed switch deployments requiring multi-mode fiber connectivity across short to medium distances. This is not a general-purpose SFP—it's built to tolerate industrial temperature swings, making it suitable for warehouses, outdoor cabinet deployments, or any environment where standard commercial optics may fail. If your managed switch has empty SFP ports and you need fiber uplinks or inter-building connectivity without running copper, this module plugs directly into those slots.
Key Features
- Gigabit Multi-Mode Fiber: Delivers 1000 Mbps over multi-mode fiber (MMF) cabling. Multi-mode is cheaper and easier to terminate than single-mode, and covers campus and data center distances (typically up to 2 km depending on fiber grade). Skip this if you need long-haul distance beyond 2–3 km—that requires single-mode optics.
- Industrial Temperature Range: Operates across a wider temperature band than commercial-grade transceivers, meaning the TN-GLC-SX-MM-RGD won't throttle or shut down in hot server rooms, unheated outdoor cabinets, or equipment trailers. This is a real differentiator if your switches live outside climate-controlled space.
- Hot-Pluggable SFP Form Factor: Insert or remove the module without powering down the switch. Simplifies troubleshooting, module replacement, and network reconfiguration without planned downtime.
- LC Duplex Connectors: Standard SFP connector type. Compatible with standard LC-to-LC patch cables and existing MMF infrastructure. Verify your fiber runs use multi-mode cable before ordering—mixing single-mode and multi-mode causes signal loss.
- RoHS Compliant: Lead-free construction meets environmental regulations and integrates into compliance-sensitive procurement workflows without requiring exemptions.
- Managed Switch Integration: Works with any managed switch featuring SFP slots that support standard Gigabit SFP modules. Confirm your switch model accepts 1000BASE-SX optics before deployment—not all switches support all SFP types equally.
Integration & Compatibility
The TN-GLC-SX-MM-RGD is a passive transceiver—it requires no separate power supply and draws no current from the switch's power budget. Install it into an empty SFP port on your managed switch, connect a standard LC multi-mode patch cable, and configure the port for fiber uplink or inter-switch connectivity. Because it's a hot-pluggable module, you can swap it out for a different SFP type (single-mode, CWDM, DWDM, or copper SFP) later if network requirements change. Most switch manufacturers recognize standard SFP modules via EEPROM identifiers, so management software typically auto-detects the module and enables the port without manual intervention.
If you're wiring a managed switch for warehouse automation or distributed IoT deployments, the industrial temperature rating makes this module a safer choice than standard commercial optics. Pair it with multi-mode fiber cabling rated for your environment (plenum, outdoor conduit, or indoor riser) and budget for LC duplex connectors and patch panels sized to your SFP port count.
Deployment Scenarios
Campus Network Uplinks: Use the TN-GLC-SX-MM-RGD to connect managed switches across buildings using existing multi-mode fiber runs. 1 Gbps throughput is adequate for access-layer aggregation; if you need 10 Gbps or more, upgrade to SFP+ modules (different form factor, requires compatible switch ports).
Outdoor Cabinet Connectivity: Industrial temperature tolerance shields the transceiver from heat cycling in unheated outdoor switch cabinets. Fiber also avoids the electromagnetic interference (EMI) and lightning risk associated with long copper runs.
Data Center Inter-Rack or Inter-Switch Trunking: Deploy multiple TN-GLC-SX-MM-RGD modules across trunked switch pairs to scale bandwidth without adding new copper patch cables. Cost per Gbps is competitive with copper on long runs.
Frequently Asked Questions
Q: Can I use the TN-GLC-SX-MM-RGD with single-mode fiber cabling?
A: No. This module is 1000BASE-SX, optimized for multi-mode fiber. Plugging it into single-mode fiber will result in severe signal loss and link failure. Confirm your fiber plant uses multi-mode (OM3 or OM4 typical) before ordering.
Q: Does the TN-GLC-SX-MM-RGD require firmware or driver installation?
A: No. It's a passive transceiver. Insert it into an SFP slot and the switch firmware auto-detects it. No driver or software is needed.
Q: What's the maximum distance the TN-GLC-SX-MM-RGD can span?
A: 1000BASE-SX over multi-mode fiber supports up to 550 meters on OM1/OM2 cable and 2 km on OM3/OM4. Verify your fiber grade and link budget if distance is close to the limit.
Q: Is the TN-GLC-SX-MM-RGD hot-swappable?
A: Yes. You can remove or insert it without powering down the switch. The port will go down and back up as you install or remove the module—plan maintenance windows if the port is carrying active traffic.
Q: What temperature range does this module support?
A: Operating temperature range spans industrial extremes, making it suitable for unheated warehouses, outdoor cabinets, and outdoor equipment enclosures where commercial-grade optics would throttle or fail.
Q: Will the TN-GLC-SX-MM-RGD work in my managed switch?
A: If your switch has at least one empty SFP port and supports 1000BASE-SX optics, yes. Check your switch datasheet to confirm SFP compatibility. Most enterprise and SMB managed switches from the last 10+ years support standard Gigabit SFP modules.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've spec'd the TN-GLC-SX-MM-RGD into outdoor and unheated warehouse switch deployments where thermal stability is non-negotiable. The industrial temperature rating is the real draw here—it means the transceiver won't throttle during temperature swings that would degrade a commercial-grade SFP. That matters because a failed uplink can cascade across an entire access layer.
Technical Highlights:
- 1000 Mbps Gigabit over Multi-Mode Fiber: Delivers full 1 Gbps throughput on OM3/OM4 fiber. Adequate for access-layer switch trunking and inter-building campus links up to 2 km. If you need 10 Gbps or long-haul single-mode distance, plan a SFP+ or single-mode upgrade path.
- Industrial Temperature Tolerance: Unlike commercial SFP modules that are spec'd for 0–70°C, industrial-rated optics handle the swings in outdoor cabinets, equipment trailers, and unheated warehouses. One fewer failure mode in harsh environments.
- Hot-Pluggable LC Duplex Form Factor: Standard SFP footprint means swapping this module for a different optic (single-mode, CWDM, copper SFP) requires no switch downtime or recabling—just pull and insert. Flexibility matters when requirements shift mid-deployment.
Deployment Considerations:
- Verify your multi-mode fiber plant is OM3 or OM4 before ordering. OM1/OM2 will work but limits range to 550 m. Mislabeling or legacy OM1 runs in the field are more common than you'd think.
- Confirm your switch supports 1000BASE-SX in the SFP slot. Some managed switches ship with pre-installed copper SFPs; check the datasheet or contact the switch vendor to confirm SFP module support on your model.
The TN-GLC-SX-MM-RGD is a sound pick for outdoor cabinet uplinks, distributed warehouse automation networks, and any deployment where fiber avoids EMI and lightning risk. It's not exotic—just reliable where heat cycling would kill a standard transceiver.
