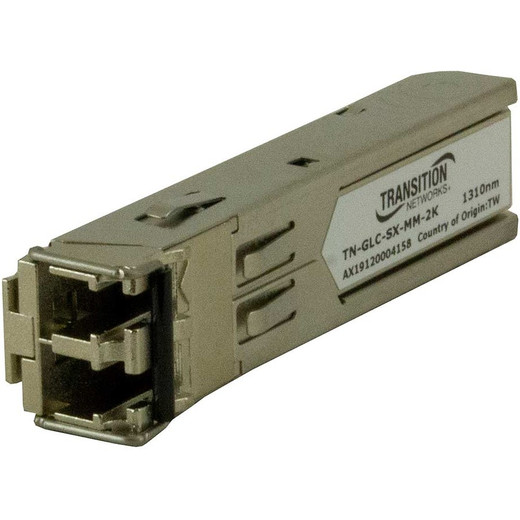

Transition Networks TN-GLC-SX-MM-2K 1000BASE-SX SFP Transceiver Module
Overview
The TN-GLC-SX-MM-2K is a managed SFP transceiver module delivering 1000BASE-SX Gigabit performance over multimode fiber. This is a hot-swappable module designed for integration into managed switches and networking equipment where fiber connectivity is required but you need to avoid the cost and complexity of fixed fiber ports. The TN-GLC-SX-MM-2K (often searched as TN GLC SX MM 2K) supports multimode fiber with LC connectors, making it compatible with standard rack-based network infrastructure. It is built to handle industrial and telecom environments with extended operating temperature tolerance, which matters if your network closet or outdoor cabinet experiences temperature swings.
Key Features
- 1000BASE-SX Gigabit Performance: Delivers full 1 Gbps throughput over multimode fiber — sufficient for backbone consolidation and inter-switch connectivity in facilities where Cat6A copper becomes prohibitive or where electrical isolation is required.
- Multimode Fiber Support: Operates over standard 50/125 µm or 62.5/125 µm multimode fiber with LC connectors. Multimode fiber is cheaper per meter than singlemode and spans up to 550 meters — adequate for most data center and campus environments without requiring expensive long-haul gear.
- Hot-Swappable Design: Install or replace the module without powering down the host switch. Minimizes service windows when expanding capacity or replacing failed units on live networks.
- Industrial Temperature Range: Operates reliably across extended temperature extremes — critical for deployments in uncontrolled environments, outdoor equipment cabinets, or facilities without climate control. Check the datasheet for exact operating range to confirm it matches your site conditions.
- GLC-Type Slot Compatibility: Compatible with managed switch platforms that accept GLC-format transceiver modules. Verify your switch supports SFP GLC slots before ordering — not all switches accept this form factor.
- Fiber-Based Network Segmentation: Using fiber instead of copper provides electrical isolation, reducing ground loop noise and cross-talk in environments with heavy electrical machinery or long cable runs.
Integration & Compatibility
Installation requires a host device with an available SFP port and standard multimode fiber patch cables with LC connectors. Typical deployments include network backbone consolidation between switches, equipment rack expansion over distance, and fiber-based network segmentation in facilities requiring industrial environmental tolerance. The module is managed and will report link status and diagnostics through the host switch's management interface, provided the switch supports SNMP or similar monitoring protocols.
When to Choose a Different Model
If you need longer reach (beyond 550 meters), consider a singlemode 1000BASE-LX or 1000BASE-ZX variant from the same vendor — those extend range to several kilometers. If your switch does not have SFP slots, or if you need 10 Gbps or higher bandwidth, evaluate a different transceiver or fixed-port switch module. If you require redundancy or fault tolerance at the fiber level, plan to deploy dual fibers and ensure your switch supports link aggregation or dual-port failover.
Frequently Asked Questions
Q: What is the maximum fiber distance for the TN-GLC-SX-MM-2K?
A: The TN-GLC-SX-MM-2K supports multimode fiber up to approximately 550 meters. For longer distances, singlemode variants are required.
Q: Can I mix multimode patch cables from different manufacturers with this module?
A: Yes, as long as the patch cables are standard 50/125 µm or 62.5/125 µm multimode with LC connectors and are tested to industry standards (TIA-568). Always verify cable specifications match your fiber grade.
Q: Does the TN-GLC-SX-MM-2K require any special drivers or firmware?
A: No. SFP modules are plug-and-play. The host switch automatically detects the module and reports its status. Ensure your switch firmware is current for optimal compatibility and diagnostics.
Q: What operating temperature range does this module support?
A: Transition Networks designs this module for extended temperature operation, making it suitable for industrial and outdoor cabinet deployments. Consult the datasheet for exact temperature specifications and verify compatibility with your specific environment.
Q: Is the TN-GLC-SX-MM-2K NDAA compliant or manufactured in the USA?
A: Refer to the manufacturer datasheet or contact Transition Networks directly for certification and country-of-origin information relevant to your procurement requirements.
Q: What warranty is included with the TN-GLC-SX-MM-2K?
A: Check the datasheet or ask your supplier for the specific warranty period and coverage terms applicable to your purchase.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TN-GLC-SX-MM-2K hits a narrow but important gap in network expansion: you have a managed switch with free SFP slots, fiber is already in the walls or conduit, and you need to avoid the capital spend of a new fixed-fiber switch module. Multimode 1000BASE-SX at 550-meter range covers most campus and data center spine traffic without singlemode complexity. What makes this module worthwhile is its industrial temperature rating—if your network closet sits in an unheated warehouse section or outdoor cabinet, extended operating range becomes a reliability asset, not a luxury.
Technical Highlights:
- 1000BASE-SX Multimode: 1 Gbps over standard 50/125 or 62.5/125 µm fiber. Multimode is 3–5× cheaper per meter than singlemode and spans 550 meters—perfect for inter-switch links that don't require carrier-grade distance.
- Hot-Swappable Insertion: Live module swap means zero switch downtime to add or replace transceivers. Matters in production environments where maintenance windows are costly or unavailable.
- Extended Temperature Tolerance: Industrial-grade thermal range enables deployment in uncontrolled spaces—outdoor equipment cabinets, manufacturing floors, or telecom shelters where climate control is absent or inconsistent.
Deployment Considerations:
- GLC Slot Verification: Not all managed switches accept GLC SFP modules; some only support GBIC or fixed ports. Verify your switch's datasheet before ordering to avoid a mismatch.
- Multimode Distance Ceiling: 550 meters is the hard limit for 1000BASE-SX multimode. If you need to link buildings over longer runs, you'll need a singlemode transceiver (1000BASE-LX or -ZX), which introduces cost and requires different fiber inventory.
- Patch Cable Spec Matching: Ensure incoming multimode patch cables are tested to TIA-568 and match your fiber type (50/125 or 62.5/125). Mixing grades can introduce signal degradation on long runs.
The TN-GLC-SX-MM-2K is the right pick when you're extending an existing switched backbone over multimode fiber and need the flexibility of hot-swappable modules without committing to a new chassis. Don't choose it if your runs exceed 550 meters, your switch lacks SFP slots, or you need 10 Gbps—those scenarios demand a different architecture.
