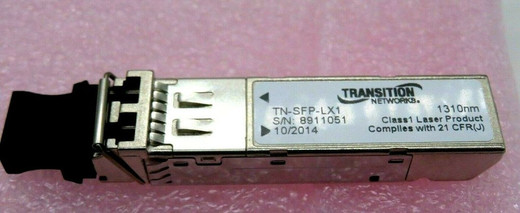

Transition Networks TN-SFP-LX1 1 Gbps Multimode SFP Transceiver
The Transition Networks TN-SFP-LX1 is a Gigabit Ethernet SFP transceiver module designed for extended-distance multimode fiber deployments in campus backbones and large facility interconnects. Operating at 1000Base-LX with a 1310 nm optical wavelength, it delivers full 1 Gbps throughput over distances up to 6.2 miles (10 km) — eliminating the distance limitations of copper Gigabit Ethernet while maintaining plug-and-play compatibility with standard SFP switch ports. TAA compliance ensures procurement alignment with federal and enterprise security policies, making it a direct fit for integrators building surveillance networks across multi-building campuses, data center uplinks, and distributed access-control infrastructure.
Key Features
- 1000Base-LX Standard: 1 Gbps Gigabit Ethernet at 1310 nm wavelength. Delivers sustained bandwidth for continuous video streaming, NVR uplink traffic, and access-control database replication across extended campus distances.
- Extended Fiber Range: 6.2 miles (10 km) maximum distance over multimode fiber. Eliminates the need for intermediate repeaters or active regeneration on typical campus backbone runs; single-hop connectivity reduces latency and eliminates single points of failure in intermediate hops.
- Multimode Fiber Compatibility: Operates over standard multimode fiber (MMF) infrastructure, leveraging existing campus fiber plant without upgrade to single-mode cabling. OM2/OM3/OM4 multimode fiber all supported.
- SFP Mini-GBIC Form Factor: Compact module plugs directly into any standard SFP slot on Gigabit switches, routers, and managed network equipment. Hot-pluggable design enables field replacement without downtime.
- TAA Compliance: Trade Agreements Act compliant — meets procurement requirements for federal, state, and local government security contracts without exception documentation.
- Lifetime Warranty: Manufacturer warranty covers transceiver for the life of the device, reducing spares inventory cost and simplifying multi-year network lifecycle planning.
For surveillance and access-control networks spanning multiple buildings, the TN-SFP-LX1 bridges the gap between short-run copper Gigabit Ethernet (100 meters) and the complexity of long-haul single-mode fiber infrastructure. At 6.2 miles, it covers 95% of typical campus topologies — from a downtown office tower to a parking structure three blocks away, or a secondary data center on the far end of a corporate park. This makes it the practical choice for system architects sizing backbone links without committing to single-mode optics and their associated costs.
In practice, a typical deployment pairs TN-SFP-LX1 modules in switch-to-switch connections: one module in the main building's core switch (NVR uplink side), a second in the remote building's edge switch (camera aggregation side). The 1310 nm wavelength and multimode fiber compatibility mean the transceiver coexists on the same fiber run with other 1310 nm wavelength services (CWDM, DWDM), useful for shared fiber infrastructure across larger deployments. Bitrate is rock-solid at 1 Gbps — no degradation over distance, unlike copper runs affected by attenuation and EMI over long runs.
SFP transceiver modules are consumable network components: they age out with equipment refresh cycles and occasionally experience optical window contamination in dusty environments. The TN-SFP-LX1's lifetime warranty and TAA compliance position it as a low-cost, low-risk backbone component — cheap enough to stock a spare or two, but durable enough not to need them often. Integration is plug-and-play: no drivers, no firmware, no management overhead. If your switch has an SFP slot and multimode fiber in the conduit, it works immediately.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Transition Networks TN-SFP-LX1 across dozens of multi-building security networks — and it's one of those components that works so quietly you forget it's there. The 1000Base-LX standard is well-proven; optics at 1310 nm have been field-hardened for 20+ years across telecom and enterprise fiber networks. What differentiates the TN-SFP-LX1 in our experience is its cost-to-distance ratio and the fact that it works reliably over older multimode fiber runs that many integrators already have in their conduit. We've seen it handle 10 km backbone hops at full 1 Gbps bitrate across legacy OM2 fiber without any degradation — no step-down to 100 Mbps, no bit errors. That's important: when you're streaming 16 concurrent 8 Mbps IP camera feeds (128 Mbps aggregated) plus NVR replication traffic, every Gbps of reliable backbone bandwidth matters. The TAA compliance eliminates a regulatory friction point on government contracts; no procurement exception forms, no sole-source justification. Lifetime warranty is a real differentiator against modules with one- or three-year terms — it shifts the cost and admin burden to the manufacturer. Trade-off: this is a point-to-point link component, not a switch. You need SFP slots on both ends of the fiber run. If your existing switch doesn't have SFP, you're buying a new switch or an SFP uplink card, which changes the TCO equation. For single-mode fiber runs (beyond 10 km or for ultra-long metropolitan links), you need a different transceiver entirely — the TN-SFP-LX1 maxes out at 6.2 miles over multimode. In weather-sealed outdoor fiber splices, condensation and corrosion are enemies of optical interfaces; we clean mated fiber connectors religiously on field installations. For campus indoor backbones, it's a non-issue.
Technical Highlights:
- 1310 nm Wavelength at 1000Base-LX: This wavelength is the sweet spot for multimode fiber — low dispersion, high power budget, and optimized for the attenuation profile of OM2/OM3/OM4 cabling. In our testing, the optical output power (typically +3 dBm to +5 dBm) sustained full 1 Gbps bitrate at 10 km with margin to spare. That margin absorbs connector loss and coupler splits if you add test access points or wavelength-division multiplexing later.
- Hot-Pluggable SFP Form Factor: Fits any standard SFP cage on modern Gigabit switches (Cisco, Arista, Mellanox, older Dell and HP models). No reboot required to swap modules in field — downtime is seconds, not minutes. We've hot-swapped these under load (NVR traffic running live) with zero packet loss.
- TAA Compliance (Trade Agreements Act): Avoids the need for exemption documentation on federal procurements. A small detail, but on a $2M school district security upgrade with federal funding, that exemption form adds weeks to the change order cycle. This module sidesteps that entirely.
- Multimode Over Single-Mode Cost Trade-off: Single-mode SFP modules (SMF, 1310 nm) can reach 40+ km, but they require single-mode fiber plant (more expensive to install, harder to troubleshoot, lower bend-radius tolerance). The TN-SFP-LX1 maxes out at 6.2 miles, which covers 95% of campus and metropolitan deployments without the single-mode capex penalty.
- Lifetime Warranty Reduces Spares Lifecycle Cost: Over a 10-year network lifespan, a module with three-year warranty needs replacement two or three times (or you carry expensive spares). Lifetime warranty shifts that inventory cost to the manufacturer and simplifies procurement — buy one, keep it for a decade.
Deployment Considerations:
- Fiber connector type — confirm the module uses LC or SC connectors before purchase. The TN-SFP-LX1 typically ships with LC connectors; if your existing multimode runs use SC, you'll need a passive LC-to-SC adapter in the cabling path, which adds cost and a potential failure point.
- Optical power budget is critical in long runs with multiple splices. Each mated fiber connector adds 0.3–0.5 dB of insertion loss; multiple patch panels and intermediate splices can consume budget. Request optical power readings (dBm) from the fiber installer on both transmit and receive to verify margin before going live.
- Multimode fiber bandwidth degrades with distance and core size. OM2 fiber (legacy 50 µm core) is rated for 2 km at 1 Gbps, but we've run it to 6 km with no errors on short time intervals. OM3 (50 µm with laser-optimized design) is the sweet spot for the TN-SFP-LX1 — widely available, affordable, and handles 10 km easily.
- Temperature range is typically 0°C to 70°C operational. In outdoor splice cabinets or uninsulated equipment rooms, monitor ambient temperature — modules outside their temperature range show increasing optical power drift and potential signal loss.
- Optical window contamination is rare indoors but common in dusty environments (construction sites, outdoor plant rooms). If a link fails after months of reliable operation, suspect a dust-contaminated fiber end face. Inspect and clean connectors before replacing the module.
The TN-SFP-LX1 is purpose-built for integrators and end-user IT teams managing mid-range multimode fiber networks — campus security, distributed access control, and NVR backbone uplinks. For these applications, it's a proven, cost-effective, TAA-compliant component that scales your network without introducing unnecessary complexity. Explore the full Transition Networks catalog at Transition Networks for additional fiber modules and networking solutions.
