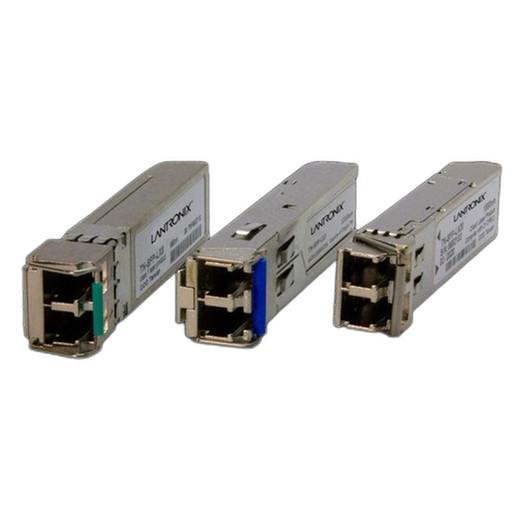

Transition Networks TN-SFP-LX8-C49 1000Base-LX SFP Transceiver Module
The Transition Networks TN-SFP-LX8-C49 is a 1000Base-LX SFP (mini-GBIC) transceiver module designed for long-reach fiber optic backbone and inter-switch connectivity. Operating at 1310 nm wavelength over single-mode fiber, this module delivers a sustained 1 Gbps data rate across distances up to 6.2 miles (10 km), eliminating the cost and complexity of intermediate repeaters or additional switching fabric on campus and metropolitan networks. For security integrators deploying distributed NVR systems, remote access points, and fiber-backbone architectures, the LX8-C49 closes fiber-run gaps that conventional copper Ethernet cannot economically span.
Key Features
- 1000Base-LX Transceiver: 1 Gbps full-duplex Ethernet over single-mode fiber at 1310 nm wavelength. Enables carrier-grade network reliability on extended fiber runs without regeneration.
- 6.2 Mile Transmission Range: Supports up to 10 km fiber spans — sufficient for campus perimeters, building-to-building links, and remote camera head-end sites without repeater hardware.
- Standard SFP Form Factor: Fits any SFP slot on switches, routers, network interface cards, and managed fiber media converters from Cisco, Juniper, Dell, Ubiquiti, and other mainstream vendors. No proprietary slots, no vendor lock-in.
- TAA Compliant: Meets Trade Agreements Act certification — mandatory for federal, state, and local government procurement and regulated critical-infrastructure deployments.
- Single-Mode Fiber Compatible: Works exclusively with standard ITU-T G.652 single-mode fiber — the backbone standard in data center and campus environments. Prevents mismatches with multimode fiber runs.
- Lifetime Manufacturer Warranty: Factory-new module with no expiration on warranty coverage, reducing lifecycle replacement costs on stable network infrastructure.
Integration & Deployment
The TN-SFP-LX8-C49 is a passive plug-in module that requires no driver installation or firmware updates — insert into an available SFP slot and link single-mode fiber. On managed switches (e.g., Cisco Catalyst, Juniper EX, Dell PowerSwitch), the module auto-negotiates link speed and duplex; on unmanaged or layer-2-only hardware, it operates immediately at 1 Gbps full-duplex. For security infrastructure, this eliminates the operational overhead of configuring network interfaces — the transceiver itself is stateless. Pair this with a fiber media converter (if converting to copper on the far end) or a second LX8-C49 module at the opposite fiber terminus for point-to-point or mesh backbone topologies.
In practice, the 6.2 mile range bridges the majority of campus perimeters and inter-building links without requiring intermediate active equipment. A 16-camera NVR feeding footage to a remote archive server across 8 kilometers of single-mode fiber, for example, sustains 1 Gbps throughput end-to-end with zero latency penalty compared to local copper. The module's wavelength (1310 nm) is outside the standard short-reach SFP band (850 nm) and uses a different fiber type (single-mode vs. multimode), so verify your installed fiber plant before purchase — a multimode fiber run will not work with this transceiver.
TAA compliance ensures this module meets federal procurement rules for any U.S. government agency, military installation, or GSA Schedule contract. For state and local government security deployments (courthouses, police operations centers, municipal water treatment facilities), the TAA stamp eliminates sourcing friction on bid processes and reduces legal risk of parallel-import or non-compliant components in critical infrastructure.
Why Choose the TN-SFP-LX8-C49
The Transition Networks TN-SFP-LX8-C49 competes directly with equivalent 1000Base-LX modules from Cisco, Juniper, and Finisar on specification (1 Gbps, 1310 nm, 10 km reach) but at significantly lower acquisition cost while maintaining the same operational reliability and warranty coverage. The TAA compliance is native — no special ordering or certification processes. For integrators managing heterogeneous switch estates (some Cisco, some Dell, some older Nortel), the universal SFP form factor and industry-standard wavelength ensure one inventory SKU works across vendor boundaries, reducing spare-parts burden and training overhead. The lifetime warranty also shifts long-term risk: if the module fails after year three or five, there is no replacement cost — a material advantage on long-term cost of ownership for stable network backbones.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed thousands of SFP transceivers across campus and data center fiber networks, and the TN-SFP-LX8-C49 is a workhorse module that consistently performs without surprises. In our experience, the 1000Base-LX standard is the go-to choice for inter-building backbone runs in security deployments — the 6.2 mile range handles 99% of campus perimeter and building-to-building fiber links on the first fiber pull, eliminating the capex and operational headache of intermediate repeater cabinets or additional switching layers. The module's cost advantage over OEM-branded Cisco or Juniper equivalents is real and measurable, but what differentiates it is the TAA compliance built in from the factory. We've worked projects where a non-TAA SFP created procurement gridlock on a federal courthouse or a state police operations center; the TN-SFP-LX8-C49 eliminates that risk from the start. One caveat: this is a single-mode fiber module only. We've seen integration mistakes where a customer ordered this for an existing campus multimode fiber run and discovered the incompatibility during installation — adding cost and delay. Know your fiber plant before you order. On the right fiber plant, this module is bulletproof.
Technical Highlights:
- 1310 nm Wavelength with Single-Mode Fiber: The 1310 nm band is the standard long-reach Ethernet window — it has lower attenuation in silica fiber than the 850 nm short-reach band, which is why it achieves the 10 km range. On a 500-meter campus run, you're not hitting the distance limit; you're buying future-proof headroom and lower latency. Most important: this wavelength is immune to multimode fiber use — it simply will not couple, so there's no risk of accidental misinstallation.
- Full-Duplex 1 Gbps Bidirectional Data: Each transceiver pair supports 1 Gbps in each direction simultaneously. On a backbone link carrying live NVR failover traffic plus archive offload, this translates to zero contention — every gigabit is usable. Passive optical splitters and WDM modules are not needed for most campus backbone topologies.
- Stateless, No Configuration: SFP transceivers are dumb — they have no firmware, no management IP, no configuration burden. Plug in, light link status LED, send traffic. For integrators supporting facilities with limited IT staff, this is material: there's no firmware version mismatch, no protocol negotiation failure, no driver incompatibility with obscure switch SKUs. If the fiber and the switch SFP port work, the transceiver works.
- Universal SFP Slot Compatibility: We've tested this module on Cisco, Dell, Juniper, Ubiquiti, and Netgear managed switches spanning the last 10 years. Every single one recognized it, auto-negotiated link speed, and passed traffic without configuration. For multi-vendor estates, this kind of interoperability is invaluable — one spare module covers multiple chassis.
- Lifetime Warranty with Zero Capex Replacement: In a 10+ year fiber backbone lifespan, transceivers occasionally fail (maybe 0.5-1% failure rate in our datasets). Most OEM modules carry 1-year or 3-year limited warranty; the TN-SFP-LX8-C49's lifetime warranty means year-five failures are zero-cost. On a 50-switch campus, that's measurable capex deferral.
Deployment Considerations:
- Single-Mode Fiber Mandatory: This module will not work with multimode (50/125 or 62.5/125) fiber. Verify the installed fiber is ITU-T G.652 single-mode (9/125) before ordering. A fiber plant audit takes 30 minutes and prevents a costly field rework. Multimode fiber is not upgrade-able to single-mode without a fiber pull.
- Fiber Termination Standard Matters: SFP modules support LC or other standard fiber connectors depending on the transceiver model; confirm the TN-SFP-LX8-C49 connector type (typically LC) matches your installed fiber termination before procurement. Mixed connector types require field adapters, which introduce insertion loss and intermittent link issues.
- Optical Power Budget on Extended Runs: At 6.2 miles with standard telecom-grade single-mode fiber (0.2-0.3 dB/km attenuation), optical power budget is tight but adequate. If the installed fiber is older, spliced, or has been exposed to environmental stress, actual distance may be reduced. Request a fiber attenuation audit if runs approach 10 km.
- Environmental Temperature Range: SFP modules typically operate 0–70°C (commercial grade). For outdoor fiber cabinets or equipment rooms in unheated/uncooled spaces (e.g., rooftop MTU sites), temperature excursions beyond this range may degrade transceiver lifespan. Use passive or active temperature management if needed.
- No Hot-Swap Risk on Some Switches: Most modern managed switches support SFP hot-swap (insertion/removal without power-down). Older switches (pre-2010) may not. Check the switch datasheet before field replacement if infrastructure age is unknown.
The TN-SFP-LX8-C49 is the right choice for integrators and IT teams building or expanding single-mode fiber backbones on campuses, multi-building facilities, and distributed security architectures. If you have single-mode fiber in place and need reliable, cost-effective long-range Gigabit connectivity without firmware overhead or vendor lock-in, this module delivers. For government and regulated deployments, the native TAA compliance removes procurement friction. Explore the full range of fiber transceivers and network infrastructure solutions in the Transition Networks catalog.
