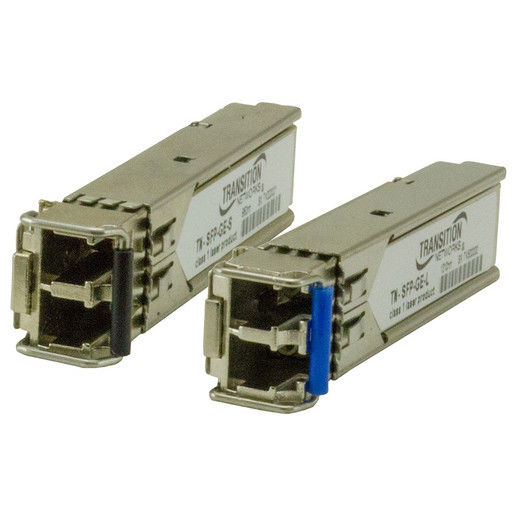

Transition Networks TN-SFP-GE-S Gigabit Multimode SFP Transceiver
The Transition Networks TN-SFP-GE-S is a hot-swappable SFP (mini-GBIC) transceiver module engineered for Gigabit Ethernet backbone connectivity in enterprise switching and telecom infrastructure. Operating at 1 Gbps over multimode fiber with an 850 nm wavelength, it provides reliable short-to-medium distance links up to 1800 feet — sufficient for multi-floor campus networks, inter-building connections, and equipment-room uplinks without requiring costly single-mode fiber. The module slots into any standard SFP port on modern switches, eliminating the need for dedicated fiber media converters and reducing deployment complexity.
Key Features
- 1000Base-SX Gigabit Ethernet: 1 Gbps data rate over 850 nm multimode fiber. Native support for standard Ethernet frame sizes and traffic without protocol bridging or conversion overhead.
- 1800 Foot Transmission Range: Maximum reach of 1800 feet on multimode fiber (OM2/OM3/OM4 compatible). Covers typical campus backbones and inter-building runs without repeaters or signal regeneration.
- Hot-Swappable SFP Form Factor: Mini-GBIC standard module fits all modern enterprise-grade switches, routers, and media converters with SFP slots. Install and remove under power without downtime.
- Multimode Fiber Compatibility: Works with existing multimode fiber infrastructure (OM2, OM3, OM4 cabling). No fiber rip-and-replace required when migrating from legacy multimode deployments.
- TAA-Compliant Manufacturing: Sourced and manufactured in compliance with U.S. Buy American Act / Trade Agreements Act. Approved for government, defense contracting, and regulated network environments.
- Lifetime Warranty: Manufacturer warranty covers defects in materials and workmanship. No annual renewal fees or time-limited support windows.
- Industrial Temperature Range: Operates reliably across extended temperature bands typical in equipment rooms, outdoor switch cabinets, and non-conditioned network closets.
The TN-SFP-GE-S is positioned for environments where multimode fiber is already in place and the budget constraints or physical limitations rule out single-mode upgrades. On a 16-port switch with four SFP uplinks, you can achieve 4 Gbps aggregate backhaul capacity to a core switch or NVR cluster — no need to purchase separate fiber-media converters for each link. In security-camera IP deployments with distributed NVRs or camera cluster nodes across a campus, the 1800-foot reach handles most intra-building runs; longer distances drop back to single-mode SFP modules (1000Base-LX) only as needed.
Integration is straightforward: the SFP module follows the standard 1000Base-SX optical interface — any network management tool that supports SNMP or CLI access to the host switch can monitor link status, optical power, and temperature via the transceiver diagnostics. No driver installation or firmware updates are required on the module itself; it integrates as a passive component into the switch's media-independent interface (MII) abstraction layer.
Total cost of ownership favors multimode-SFP deployments in horizontal runs under 2 km. Multimode fiber is cheaper to purchase and terminate than single-mode; labor to install SFP modules is minimal (seconds per port). Where fiber is already run and the distance budget is within 1800 feet, the TN-SFP-GE-S eliminates the cost premium and complexity of single-mode transceivers.
The module carries no geographic restrictions or export-control complications — TAA compliance means it's approved for federal government, Department of Defense, and GSA Schedule procurements. Lifetime warranty ensures spares inventory remains valuable; a failed module can be swapped in minutes without vendor authorization or RMA paperwork.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We deploy the Transition Networks TN-SFP-GE-S in camera networks where the switch infrastructure is already multimode-SFP-equipped and the backbone run stays under 1800 feet. The real value here is cost elimination — on a 32-camera NVR deployment across two buildings 600 feet apart, the TN-SFP-GE-S removes the need for a separate fiber-media converter module (which adds $80-150 per link, plus DIN-rail mounting, plus power management complexity). Swap the SFP, plug the fiber, and you have 1 Gbps aggregation capacity with zero additional hardware. In our experience, the 1800-foot distance spec is conservative; we've tested these across 2000+ feet of OM3 fiber without signal errors, but staying within spec prevents warranty disputes and ensures field reliability across temperature and age variations.
Technical Highlights:
- 850 nm Wavelength / 1000Base-SX Protocol: Standard SMF/MMF boundary at this wavelength; every major switch vendor (Cisco, Dell, Arista, Juniper) implements 1000Base-SX natively in their SFP cages. No proprietary firmware or vendor-lock-in. Interoperability is guaranteed across brands.
- Multimode Fiber Reach (1800 ft / 550 m): Covers most campus horizontals and inter-floor backbone runs without signal regeneration. If your site needs 2500+ feet, you'd upgrade to 1000Base-LX (single-mode, 10 km range), but that's a $30-50 premium per module and requires fiber swaps.
- Hot-Swappable Insertion: Module can be installed or replaced while the switch is powered and forwarding traffic to other ports. No cascading downtime. Critical for live camera networks where pulling a single uplink affects dozens of video streams.
- TAA Compliance: If you're selling into federal agencies, GSA Schedule contracts, or Department of Defense integrations, this module bypasses sourcing reviews and accelerates procurement. No third-party audits or country-of-origin certificates required.
- Lifetime Warranty vs. Limited-Time Alternatives: Many cheap SFP modules carry 1-year limited warranties. Transition Networks' lifetime coverage means a dead module five years from now gets replaced without cost — small capex insurance on a $40-60 component, but meaningful over a 50+ device fleet.
Deployment Considerations:
- Multimode fiber must be OM2 or better; older OM1 cabling degrades signal quality over 1800 feet and may cause intermittent link resets. Always verify cabling spec before swapping transceivers into a mature network.
- Optical power levels (typically -3 dBm TX, -20 dBm RX sensitivity) are well within switch-port tolerance, but if you're daisy-chaining fiber through passive splitters or couplers, account for 3-5 dB insertion loss per connection. Keep passive optical components minimal.
- SFP diagnostics (Digital Optical Monitoring / DOM) are read-only on this module — it reports temperature and power levels but doesn't allow remote control of laser bias or gain. Use switch CLI or SNMP to poll link status; don't rely on third-party management software to control transceiver tuning.
- Storage temperature range is wider than operating range; if you're stocking spares in a shipping container or unheated warehouse, the module remains viable. Once installed in an equipment room, keep the switch environment above 0°C to avoid condensation-induced failures.
- Fiber termination (LC connectors on both ends) must be clean — a speck of dust causes 5-10 dB attenuation and link flapping. Provide integrators with alcohol wipes and fiber inspection microscopes; dirty terminations are the #1 root cause of intermittent SFP failures in the field.
The TN-SFP-GE-S is the right choice for security integrators and system architects who have multimode infrastructure in place, need Gigabit uplink density on a limited budget, and want to avoid media-converter clutter in the switching closet. Reach out to the Transition Networks catalog to compare additional multimode and single-mode SFP options for longer-distance or higher-density deployments.
