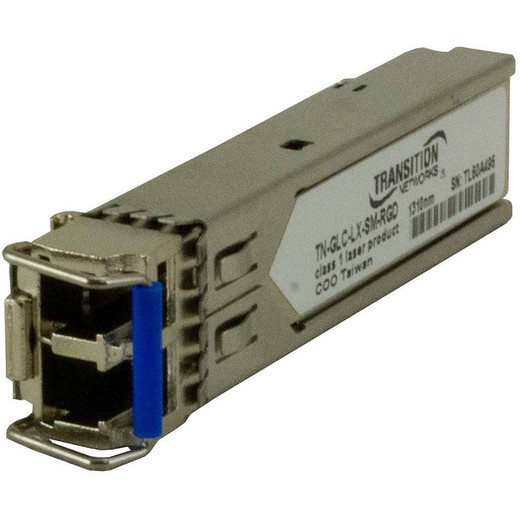

Transition Networks TN-GLC-LX-SM-RGD 1000Base-LX SFP Module
Overview
The Transition Networks TN-GLC-LX-SM-RGD is a 1000Base-LX small form-factor pluggable (SFP) transceiver module built for Gigabit Ethernet links that demand distance over single-mode fiber. This module delivers 1 Gbps throughput and uses industry-standard LC duplex connectors, making it a drop-in upgrade or expansion option for any network device with an open SFP slot. It's commonly deployed in security backbone infrastructure, campus fiber runs, and metropolitan-area networks where fiber economics and reach matter.
Key Features
- 1 Gigabit Ethernet Speed (1000 Mbps): Delivers full 1 Gbps throughput, sufficient for aggregating multiple HD and 4K IP cameras or for backbone fiber uplinks without bottleneck. No speed negotiation or fallback needed.
- Single-Mode Fiber Support: Works with standard single-mode (SM) fiber infrastructure, enabling distances suitable for large campuses, industrial parks, and municipal deployments where multimode fiber won't reach. Single-mode fiber is thinner, runs longer distances without signal loss, and costs less to deploy over kilometers compared to repeated multimode repeater stages.
- 1310 nm Wavelength: Operates on the standard 1310 nm infrared wavelength, the dominant choice for long-haul Ethernet. Your fiber plant almost certainly has DWDM or long-wavelength infrastructure already in place at this wavelength, so integration is straightforward—no custom fiber ordering required.
- LC Duplex Connectors: Industry-standard LC connectors mean field termination is simple and spares are ubiquitous. Quick-snap LC duplex design also reduces installation time and accidental disconnects compared to older SC or ST connectors.
- Hot-Swappable Form Factor: SFP form factor allows installation or replacement without powering down the switch or router. Useful for maintenance windows or adding new fiber runs to an active network—pull the old module, snap in the new one, and you're live in seconds.
- Universal Compatibility: Works with any managed switch, router, media converter, or fiber-to-Ethernet device that has a standard SFP slot—no proprietary locking or firmware dependencies. This avoids vendor lock-in and lets you mix modules from different suppliers in the same chassis if needed.
Integration & Compatibility
The TN-GLC-LX-SM-RGD (often searched as TN GLC LX SM RGD) plugs into any standard 1000Base-LX compatible SFP slot. It supports both transmit and receive functions on a single pair of single-mode fibers, using the standard 1310 nm window. No configuration is required—the module is protocol-agnostic and will work with IP cameras, NVRs, network switches, and any ONVIF-compliant endpoint. If you're building a surveillance backbone or linking a remote warehouse, office, or outdoor camera cluster back to a central network switch, this module eliminates the need for separate media converters, reducing rack space and power consumption.
For larger installations, consider pairing this with a fiber management solution to organize and protect your single-mode runs. Also verify that the target switch or device actually has an empty SFP slot—some compact switches or all-in-one devices may have fixed connectors instead.
When to Choose a Different Model
If you need multimode fiber (typically OM3 or OM4) instead of single-mode—such as for shorter campus runs (under 500 m) where multimode is already installed—look for a 1000Base-SX variant in the Transition Networks line instead. If you need higher speeds (10 Gbps or beyond), SFP+ or QSFP modules will be required. If your device lacks SFP slots entirely, a standalone media converter may be a better fit. Always confirm your switch or router has at least one unused SFP slot before ordering.
Frequently Asked Questions
Q: What's the maximum distance this module can cover?
A: Single-mode 1000Base-LX modules typically support distances up to 10 km (about 6 miles) on standard single-mode fiber (SMF-28). Exact distance depends on fiber quality and attenuation. Always verify with your fiber plant documentation or the switch manufacturer's limits.
Q: Is the TN-GLC-LX-SM-RGD compatible with my Cisco, Juniper, or Arista switch?
A: Yes. The module is standards-based (1000Base-LX) and will work in any switch with an available SFP slot that supports 1000Base-LX. No vendor-specific firmware or licensing is needed. However, confirm that your device doesn't use proprietary SFP form factors (some legacy equipment does).
Q: Can I use this module with multimode fiber?
A: No. This module is designed for single-mode fiber. Connecting it to multimode fiber will cause signal degradation and link failure. If your installation uses multimode fiber, you'll need a 1000Base-SX module instead.
Q: Do I need to install any drivers or firmware?
A: No. The TN-GLC-LX-SM-RGD is a passive optical module and requires no software, drivers, or firmware configuration. Simply insert it into an empty SFP slot and it will integrate automatically, as long as the switch detects 1000Base-LX capability.
Q: What happens if I hot-swap this module while the switch is running?
A: The port will go down momentarily during the swap, but the switch itself will not restart. Any traffic on other ports continues uninterrupted. Devices connected on the other end of the fiber link will lose connectivity briefly until the module is fully seated and the link re-establishes (usually within 1–2 seconds).
Q: Is there a warranty on the TN-GLC-LX-SM-RGD?
A: Warranty terms depend on the seller and region. Check the invoice or contact the distributor for specific coverage details. Most Transition Networks modules carry a limited lifetime warranty against manufacturer defects.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Transition Networks TN-GLC-LX-SM-RGD is a straightforward, standards-compliant 1000Base-LX SFP transceiver for fiber backbone infrastructure. It's the kind of module you want to have in stock if you're fielding security systems across larger campuses or integrating remote surveillance sites. No surprises, no proprietary quirks—just plug and go.
Technical Highlights:
- 1310 nm Wavelength + Single-Mode Fiber: Delivers up to 10 km of reach on standard SMF-28 fiber. That's the difference between a point-to-point wireless backup and a guaranteed hardwired connection across an entire industrial park or municipal campus. At 1310 nm, you're also riding the wavelength that dominates DWDM infrastructure worldwide, so fiber spares and testing equipment are commodity items.
- Hot-Swappable SFP Form Factor: You can upgrade or replace the module without taking down the entire switch. This matters when you're managing uptime on a live surveillance backend or network that's recording 24/7. Downtime = lost footage, so modularity pays for itself in operational flexibility.
- LC Duplex Connectors: LC is the industry standard for modern fiber infrastructure. It's faster to terminate than older SC/ST, easier to maintain, and spares are cheap. Your integrators will appreciate not having to hunt down obsolete connector adapters.
Deployment Considerations:
- Single-Mode Only: This module will not work with multimode fiber. If your site has existing multimode runs (OM3, OM4), you'll need an SX variant instead. Always verify the fiber type in your plant before ordering—discovering the mismatch on-site wastes a service call.
- SFP Slot Required: Not all switches have SFP slots. Some compact managed switches, edge devices, or older hardware have fixed 10/100/1000 Base-T ports only. Confirm the target device has at least one available SFP slot before committing to this module.
- Distance Verification: While 1000Base-LX nominally reaches 10 km, real-world distance depends on fiber attenuation, splices, and your switch's optical receiver sensitivity. Test with your fiber plant or ask for attenuation measurements if you're pushing the limit—don't assume flat terrain equals flat loss.
Deploy the TN-GLC-LX-SM-RGD when you're building a fiber backbone for a distributed security system, connecting a remote warehouse or manufacturing facility back to a central NVR, or upgrading a campus network to all-fiber for future-proof bandwidth. It's the muscle behind the link, not the brains—pair it with quality fiber, a managed switch with SNMP monitoring, and a properly sized UPS, and you'll have a surveillance backbone that outlasts the cameras themselves.
