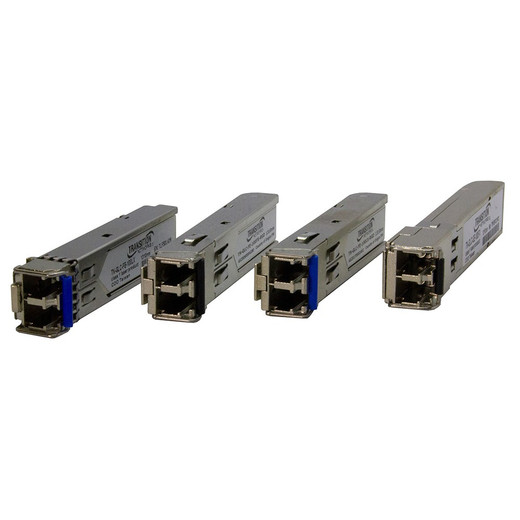

Transition Networks TN-GLC-FE-100LX SFP 100BASE-FX Single-Mode Transceiver
Overview
The TN-GLC-FE-100LX is a standards-compliant SFP (mini-GBIC) transceiver module designed to extend Fast Ethernet connectivity over single-mode fiber. Operating at 100 Mbps using the 100BASE-FX protocol, this module delivers transmission range up to 10 kilometers (6.2 miles) — a decisive advantage when you need to span security camera backbone links, redundant connections, or enterprise LAN extensions across campus or industrial sites without repeaters. The TN-GLC-FE-100LX (often searched as TN GLC FE 100LX) plugs into any standards-compliant SFP slot on managed or unmanaged switches, routers, and network interface cards, making it a practical choice for retrofitting existing infrastructure without requiring hardware replacements.
Key Features
- 100 Mbps Fast Ethernet throughput — adequate for most security camera streams and access control traffic; if you need higher bandwidth for aggregated multi-camera deployments or real-time analytics feeds, this is a clear ceiling you'll hit, so validate frame rates and bitrates against your camera encodings first.
- 10 km (6.2 mile) transmission distance over single-mode fiber — eliminates the need for intermediate repeaters or media converters in extended deployments; fiber's immunity to electromagnetic interference also protects sensitive security data from crosstalk in electrically noisy environments like warehouses or industrial automation zones.
- Single-mode fiber support — narrower core and longer wavelength propagation than multimode; this distance capability comes with a tradeoff: single-mode connectors and cabling are less forgiving to misalignment than multimode, and attenuation is lower, so installation discipline matters.
- LC connector type — standard push-pull mating for SFP modules; verify your patch cords and wall outlets use matching LC ferrules to avoid adapter chains that degrade signal quality.
- Hot-swappable SFP form factor — install or swap without powering down the switch, reducing maintenance windows in 24/7 surveillance and access control systems.
- Standards-based 100BASE-FX protocol — vendor-neutral interoperability; pairs with any ONVIF-compliant camera system or network recorder that accepts SFP modules in its uplink or expansion slots.
Integration and Compatibility
Install the TN-GLC-FE-100LX into any SFP-equipped switch, router, or network interface card. Common deployment scenarios include backbone links between building segments in a security video system, redundant paths for access control panels, or long-haul connections to remote warehouse camera clusters. Because 100BASE-FX is legacy technology, verify that your switch firmware or management software recognizes SFP transceivers — some older unmanaged switches auto-detect; others require manual configuration. If your deployment includes PoE-powered cameras or access readers on the far end of the fiber link, ensure the switch or injector on the near end supplies adequate power to the remote network interface; fiber itself carries no power, so a separate PoE injector or PoE-capable switch port is necessary.
When to Choose a Different Module
The 100 Mbps ceiling is a hard boundary. If you're consolidating multiple HD or 4K camera streams, anticipate future bandwidth growth, or need to support emerging analytics platforms, a 1 Gbps SFP (1000BASE-FX) or higher-speed multimode or single-mode module from the same vendor may deliver better headroom — though these typically cost more and may require longer-wavelength fiber infrastructure. For short runs under 500 meters where cost and simplicity are paramount, multimode fiber SFP modules (such as 100BASE-FX MM or equivalent) also exist and are often less expensive.
FAQ
Q: Does the TN-GLC-FE-100LX support hot-swapping?
A: Yes. SFP modules are designed for hot-swap insertion and removal without powering down the host switch or router.
Q: What fiber types work with the TN-GLC-FE-100LX?
A: Single-mode fiber only. Do not attempt to use multimode fiber; the wavelength and core geometry mismatch will cause signal loss and link failure.
Q: Can I use this transceiver to extend a PoE camera feed over 10 km?
A: Fiber itself does not carry power. You will need a separate PoE injector or PoE-capable switch port on the receiving end (after the fiber link) to power the camera. The TN-GLC-FE-100LX only carries the data signal.
Q: Is the TN-GLC-FE-100LX compatible with my network switch?
A: It will work in any SFP slot on a standards-compliant switch or router. Verify that your hardware has an available SFP port and that the switch firmware supports 100BASE-FX. Contact the switch manufacturer if unsure.
Q: What is the difference between this module and a multimode SFP?
A: Single-mode fiber (this module) supports much longer distances (up to 10 km) with lower attenuation, but requires more precise alignment during installation. Multimode fiber supports shorter distances (typically under 2 km) and is more forgiving to connector imperfections.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I spec the TN-GLC-FE-100LX into backbone and extended-distance security surveillance deployments where fiber isolation and distance justify the cost. The 10 km single-mode capability is the real differentiator — it eliminates repeaters, and that matters when you're tying together a campus with multiple video recorder buildings or bridging to a remote warehouse camera cluster. The module is standards-compliant and hot-swappable, so integration headaches are minimal.
Technical Highlights:
- 10 km reach on single-mode fiber: Roughly 3 times farther than multimode (2–3 km typical), and without a repeater, you cut operational complexity and latency. Attenuation is also lower, so signal quality degrades more gracefully over distance.
- 100 Mbps throughput: Handles multiple standard H.264 camera streams at 30 fps (roughly 4–8 Mbps per stream), so 12–15 cameras per backbone link is realistic. If your site is pushing 4K or high-frame-rate analytics, this will saturate — plan accordingly.
- Single-mode fiber immunity to EMI: In electrically noisy warehouse or factory environments, fiber shielding eliminates crosstalk and ground loops that plague copper Ethernet, keeping security feeds clean and tamper-resistant.
Deployment Considerations:
- Single-mode connectors and patch cords are less forgiving than multimode — any misalignment or contaminated ferrule introduces insertion loss. Budget time for careful cable inspection and termination QC, and keep spare patch cords on hand.
- 100 Mbps is a hard ceiling. If you're mixing legacy Fast Ethernet cameras with future 1 Gbps upgrades, this module won't scale. Plan fiber infrastructure for 1000BASE-FX (or higher) SFP transceivers from the start, then use this module only on segregated older camera segments.
- Verify your switch firmware supports 100BASE-FX SFP recognition. Older unmanaged switches sometimes do not enumerate SFP transceiver types and may ignore the link — test in a lab first.
Best fit: multi-building security video backbones where distance and EMI immunity outweigh bandwidth headroom. Not ideal for IP audio, high-frequency data collection, or analytics-heavy platforms that demand gigabit aggregation.
