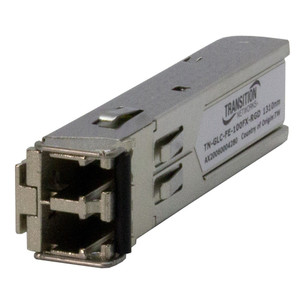

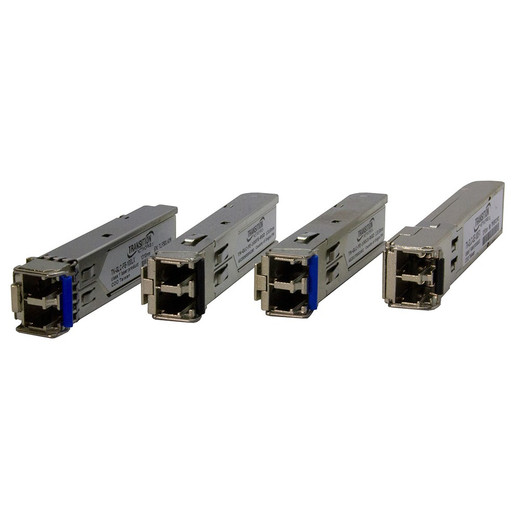

Transition Networks TN-GLC-FE-100FX-RGD SFP Transceiver Module
Overview
The Transition Networks TN-GLC-FE-100FX-RGD is a Cisco-compatible SFP (Small Form-factor Pluggable) transceiver designed to deliver 100BASE-FX fast Ethernet over multimode fiber optic cable. This hot-swappable module plugs directly into standard SFP slots found on network switches, routers, and industrial control equipment. The RGD designation indicates Transition Networks' standard housing and pin configuration, ensuring mechanical and electrical compatibility with Cisco GLC-FE-100FX modules across a broad range of equipment. Typical deployment distance is up to 2 km over multimode fiber—sufficient for most building-scale fiber backhaul, industrial segment isolation, and security infrastructure wiring scenarios where electrical isolation or noise immunity is critical.
Key Features
- 100BASE-FX Fast Ethernet: Delivers 100 Mbps over multimode fiber. Unlike copper Ethernet, fiber eliminates ground loops and electrical noise—a real advantage in facilities with heavy motor loads, VFDs, or RF interference. Useful when you need clean, isolated backhaul between network segments.
- Hot-Swappable Module Form Factor: Install or replace without powering down the switch or router. Reduces service windows and emergency reconfiguration time, particularly valuable in 24/7 surveillance or automation environments where downtime is expensive.
- Multimode Fiber Support (up to 2 km): Works with standard OM1 or OM2 multimode cable widely available in existing building fiber infrastructure. 2 km range covers most campus and large warehouse deployments. If you need longer distance, single-mode variants exist but require different cabling and transceivers.
- Cisco Pinout Compatibility: Direct mechanical and electrical replacement for Cisco GLC-FE-100FX modules. This means you can use it in Catalyst switches, ASR routers, and third-party equipment designed around Cisco SFP cages—no firmware changes or adapter plates required. Verify your device's SFP slot specification before ordering.
- Compact Footprint: Standard SFP dimensions (57 mm × 8.5 mm × 5.5 mm) fit any SFP cage. No special brackets or adapters needed. Stacking multiple transceivers in a dense switch is straightforward.
- Industrial-Grade Operating Range: Suitable for uncontrolled environments typical of warehouses, outdoor cabinets, and security infrastructure. Verify operating temperature and humidity specifications against your site conditions before final installation.
Integration and Compatibility
The TN-GLC-FE-100FX-RGD integrates into any network switch or router with a standard SFP cage. Network switches from Cisco, Juniper, HP, Huawei, and others support this module if they have empty SFP slots rated for Gigabit Ethernet or fast Ethernet transceivers. Before purchasing, confirm your device supports 100BASE-FX SFP modules—some older equipment or cost-reduced models may restrict transceiver types. Check the equipment's datasheet or contact the manufacturer to verify SFP compatibility.
In security and surveillance deployments, fiber backhaul using this transceiver improves resilience. Network video recorders and industrial control systems connected via isolated fiber segments reduce latency and eliminate ground-loop-induced artifacts in video or sensor feeds. This is particularly useful when running long distances or routing through electrically noisy environments.
Pair this transceiver with fiber optic cabling appropriate to your distance and environment. Standard duplex LC or SC connectors are common; confirm your cable termination matches the transceiver.
Frequently Asked Questions
Q: Is the TN-GLC-FE-100FX-RGD compatible with my Cisco switch?
A: Yes, if your Cisco switch has standard SFP slots. The RGD variant is a Cisco-compatible pinout replacement for the Cisco GLC-FE-100FX. Check your equipment's datasheet to confirm the SFP slot supports 100BASE-FX transceiver modules.
Q: What fiber cable type does this transceiver require?
A: The TN-GLC-FE-100FX-RGD uses multimode fiber (OM1, OM2, or better) with standard duplex LC or SC connectors. Verify your cable connector type matches the transceiver's connector before installation.
Q: Can I use this transceiver to extend a fiber run beyond 2 km?
A: No. The 2 km distance limit is the typical specification for 100BASE-FX over multimode fiber. For longer distances, consider single-mode fiber variants, but they require different transceivers and cabling.
Q: Do I need to power down my equipment to install or swap this module?
A: No. The TN-GLC-FE-100FX-RGD is hot-swappable, meaning you can insert or remove it without powering off the switch or router. However, the link will drop during the swap, affecting any traffic crossing that fiber connection.
Q: Is this transceiver approved for use in security-critical or regulated environments?
A: Compliance depends on your specific regulatory requirements (NDAA, TAA, etc.). Check the product datasheet or contact Transition Networks directly for certification details relevant to your deployment environment.
Q: What is the warranty on the TN-GLC-FE-100FX-RGD?
A: Warranty terms vary. Refer to the product datasheet or contact the distributor for specific warranty periods and conditions.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Transition Networks TN-GLC-FE-100FX-RGD (often searched as TN GLC FE 100FX RGD) is a straightforward, no-nonsense fiber transceiver for environments where electrical isolation or distance matters more than speed. A 2 km span over multimode fiber covers most facility-scale deployments, and the Cisco pinout compatibility eliminates guesswork at integration time.
Technical Highlights:
- 100BASE-FX over Multimode Fiber: 100 Mbps is sufficient for backhaul between building segments, isolated control networks, and surveillance backbone connections where you don't need gigabit speeds but do need noise immunity. Fiber eliminates ground loops that plague copper runs in electrically noisy facilities.
- Hot-Swappable SFP Form Factor: Plug it in or replace it without downtime—critical for 24/7 security and warehouse automation infrastructure. You're not bringing down an entire switch for a transceiver swap.
- Cisco GLC-FE-100FX Pinout Compatibility: Mechanical and electrical drop-in replacement. Your existing Cisco cages, switch configurations, and inventory systems recognize it immediately. No surprises during commissioning.
Deployment Considerations:
- Distance and Fiber Type Matter: The 2 km spec assumes OM1 or OM2 multimode fiber with proper termination. Damaged connectors, poor-quality splices, or bent cabling reduce range. Test and document your fiber run before assuming the full 2 km is available.
- SFP Slot Verification is Non-Negotiable: Not all equipment with physical SFP cages supports 100BASE-FX modules. Some switches restrict to Gigabit-only or specific vendor transceivers. Check the device datasheet before purchasing—wrong transceiver type will not negotiate a link.
- Link Speed is Fixed at 100 Mbps: This is not a failover or backward-compatible module for gigabit segments. If your topology is mixed gigabit and fast Ethernet, plan for the speed mismatch—gigabit ports will auto-negotiate down to 100 Mbps when connected to this transceiver.
Use the TN-GLC-FE-100FX-RGD when you're running fiber to isolated warehouse zones, outdoor equipment cabinets, or security backbone segments where you need electrical isolation and distance exceeds practical copper runs—and when your equipment natively supports 100BASE-FX. If you need gigabit fiber speeds or longer distances, consider single-mode 1000BASE-LX or 1000BASE-ZX variants in the same form factor.
