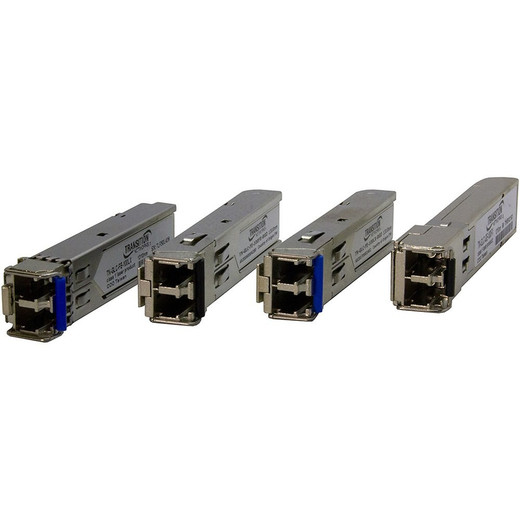

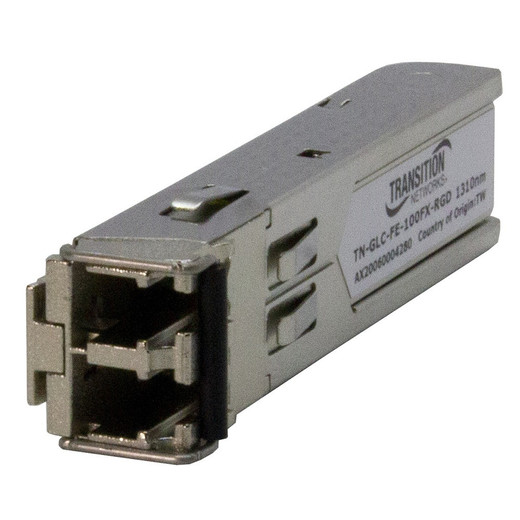

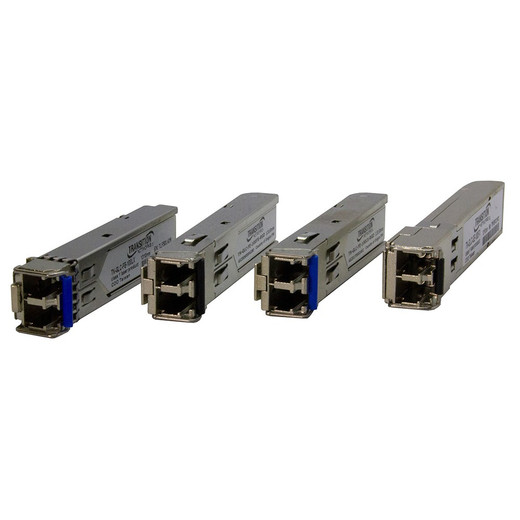

Transition Networks TN-GLC-FE-100FX SFP 100BASE-FX Multimode Transceiver
Overview
The Transition Networks TN-GLC-FE-100FX is a standards-compliant SFP (small form-factor pluggable) transceiver module designed to extend Fast Ethernet connectivity over multimode fiber. Operating at 1300 nm optical wavelength, this module delivers 100 Mbps throughput and supports distances up to 1.2 miles (approximately 2 km) — sufficient for campus backbone links connecting equipment rooms, data closets, and distant building wings without active repeaters or intermediate amplification. The compact form factor installs directly into any SFP port on managed network switches, routers, and fiber-capable network interface cards.
Key Features
- 100BASE-FX Standard Compliance: Implements the industry standard for Fast Ethernet over multimode fiber. Guarantees interoperability with any standards-compliant SFP host without custom configuration or driver updates.
- Multimode Fiber Support: Operates over standard multimode fiber (MMF) at 1300 nm wavelength, compatible with existing campus fiber plant. Eliminates the need to recable infrastructure when upgrading from copper to fiber.
- 1.2 Mile Transmission Range: Supports fiber runs up to 1.2 miles, practical for connecting remote equipment rooms or buildings on sprawling campuses. Verify actual distance against your fiber attenuation spec if runs exceed 1.0 mile.
- LC Duplex Connectors: Mechanical interface matches the majority of existing multimode fiber patch panels and jumpers in enterprise deployments, reducing field termination work and minimizing connectivity issues.
- TAA Compliant Certification: Meets Trade Agreements Act requirements, enabling procurement through federal and government-contracted integrators without additional compliance screening.
- Hot-Pluggable Form Factor: Insert or remove the module without powering down the host switch or router. Useful for maintenance, troubleshooting, and swaps in live environments when properly managed through your network.
Integration and Compatibility
The TN-GLC-FE-100FX (often searched as TN GLC FE 100FX) installs into any standards-compliant SFP slot. Verify your host switch or router supports 100BASE-FX SFP modules — most managed gigabit switches include at least two SFP expansion slots. If your device lists only GigabitEthernet SFP compatibility, contact the manufacturer to confirm 100 Mbps operation, as some hosts prioritize higher-speed modules.
Pair this transceiver with multimode patch cables terminated in LC connectors. Standard MMF cables rated for 850 nm or 1300 nm operation will work; inspect cable labeling to confirm. If migrating from single-mode fiber infrastructure, replace all interconnecting patch cords — mixing single-mode and multimode transceivers will result in complete signal loss.
Deployment Context
This module suits campus backbone and equipment room consolidation in enterprises where fiber infrastructure already exists or where electrical isolation between distant network segments is required. Use cases include connecting remote VLAN switches, isolating noisy electrical environments, or bridging distances where copper would require expensive active equipment. For shorter runs under 300 feet or where fiber infrastructure doesn't exist, standard copper Gigabit Ethernet remains more cost-effective.
Frequently Asked Questions
Q: Will the TN-GLC-FE-100FX work in any SFP slot on my switch?
A: The module will fit physically into any SFP slot, but the host must support 100BASE-FX (or be auto-sensing and downshift to 100 Mbps). Some switches or routers are configured for gigabit SFP modules only and may not negotiate link at 100 Mbps. Consult your device datasheet or contact your switch manufacturer to confirm 100BASE-FX is supported before purchasing.
Q: Can I use this transceiver with single-mode fiber cables?
A: No. The TN-GLC-FE-100FX is a multimode-only transceiver. Plugging it into single-mode cables will result in no signal. You must use multimode LC-terminated patch cords. Verify cable jacket or label before installation.
Q: Is the module TAA-compliant for federal projects?
A: Yes, the TN-GLC-FE-100FX carries TAA compliance certification. It can be procured through government and federal security integrator contracts without additional compliance vetting.
Q: What is the maximum fiber run distance for this module?
A: The module supports up to 1.2 miles (approximately 2 km) over standard multimode fiber. Actual maximum range depends on fiber attenuation (dB/km), which varies by cable age and quality. Test longer runs in the lab before deployment.
Q: Does the TN-GLC-FE-100FX require power or a driver?
A: No. SFP transceivers are passive optical modules. The module receives power from the host SFP slot and requires no software driver. Simply insert into an available SFP port and configure the interface via your switch management interface.
Q: Can I replace a copper Gigabit Ethernet connection with this module?
A: This module delivers 100 Mbps, not Gigabit speeds. If your application requires gigabit throughput, you'll need a 1000BASE-SX or 1000BASE-LX multimode SFP module instead. For 100 Mbps legacy networks or bandwidth-limited applications, this module is appropriate.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TN-GLC-FE-100FX is a straightforward, standards-compliant solution for bridging legacy 100 Mbps fiber infrastructure or extending existing campus backbones without recabling. At 1300 nm wavelength over multimode fiber, this transceiver maxes out at 1.2 miles of reach — adequate for most multi-building deployments but not for long-haul inter-campus links.
Technical Highlights:
- 100BASE-FX Standard: Full compliance with IEEE 802.3 Fast Ethernet over fiber eliminates proprietary concerns and ensures any standards-aware host will recognize and negotiate link properly.
- 1300 nm Wavelength: Operates at the standard wavelength for multimode 100BASE-FX, ensuring maximum compatibility with existing MMF patch panels and jumper stocks in enterprise closets.
- 1.2 Mile Range: Sufficient for campus-scale deployments connecting remote equipment rooms, but verify your fiber plant's actual attenuation profile before assuming distances near the upper limit.
- TAA Certification: Pre-approved for government and federal procurement; eliminates compliance reviews and speeds contract cycles in regulated environments.
Deployment Considerations:
- Confirm your host switch or router explicitly supports 100BASE-FX SFP modules. Some modern gigabit-only platforms may not negotiate or support 100 Mbps. Check the device datasheet before ordering.
- This module delivers 100 Mbps, not gigabit speeds. If you need higher bandwidth and have multimode fiber available, specify a 1000BASE-SX or 1000BASE-LX alternative instead.
- Multimode fiber only — single-mode cables plugged into this transceiver will yield zero optical signal and no link. Train field staff to visually inspect cable jacketing before hot-swapping modules.
Position the TN-GLC-FE-100FX for consolidation of legacy Fast Ethernet fiber runs in established campuses or for electrical isolation in noisy industrial environments. For new deployments or greenfield network builds, gigabit fiber transceivers or copper infrastructure will offer better future-proofing and cost per Mbps.
