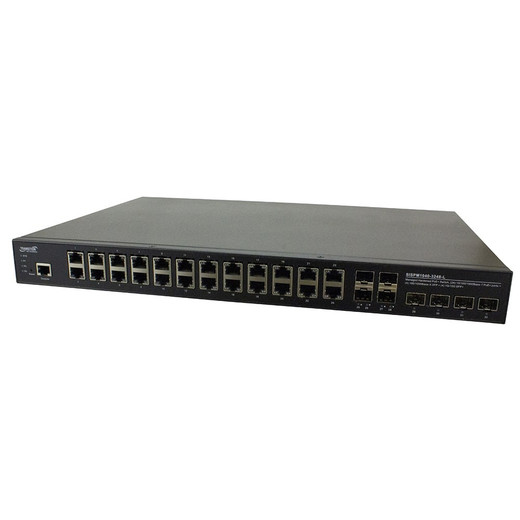

Transition Networks SISPM1040-3248-L-NA 45-Port Managed PoE+ Switch
The Transition Networks SISPM1040-3248-L-NA is a managed hardened Ethernet switch engineered for large-scale IP security and industrial control deployments where port density and centralized PoE+ power are non-negotiable. With 45 ports delivering 10G speeds and 370W aggregate PoE+ budget, this switch eliminates the need for distributed power supplies across camera runs and access-control installations. The industrial temperature rating and NEMA TS-2 certification position it for outdoor equipment rooms, rooftop installations, and facilities where environmental stress and electromagnetic interference demand ruggedized switching infrastructure. Integrators spec this platform when capacity and reliability matter more than footprint.
Key Features
- 45 Ports at 10G: Supports up to 45 connected PoE+ devices (IP cameras, access panels, wireless bridges) on a single appliance. Eliminates cascading switch stacks in medium-to-large deployments.
- 370W PoE+ Budget: Single consolidated power distribution replaces campus runs of individual injectors; powers mixed high-draw (PTZ, thermal) and standard-draw (2MP/4MP fixed domes) cameras on the same backplane.
- Industrial Temperature Rating: Rated for extended operating range (typically −10°C to +60°C) — survives outdoor equipment shelters without active cooling in most climates.
- NEMA TS-2 Certification: Meets traffic-signal-grade environmental hardening; qualifies for critical infrastructure tenders and transportation authority contracts.
- Managed Switching: Native VLAN, QoS, and access-control list (ACL) support isolate surveillance traffic from access-control or building-automation vlans without external management appliance overhead.
- FCC/CE/UL Approvals: Factory certifications for North American, European, and industrial safety compliance — no field approvals or contingent deployments.
- 5-Year Warranty: Extended factory warranty typical of hardened infrastructure products; reduces spare-unit inventory and long-lead procurement risk.
Port count and PoE+ consolidation are the core operational wins. A 30-camera + 15-door system that would require three conventional 24-port switches plus external PoE injectors fits onto a single SISPM1040 with native power distribution. The 370W budget supports a mixed load: up to ten 60W PTZ cameras (rooftop, perimeter tracking) and twenty 15W fixed domes with room for access-panel power draws. Managed VLAN segmentation prevents video flooding from consuming bandwidth needed for door-lock communication or emergency call-down systems.
Environmental hardening justifies the industrial form factor. Equipment rooms in parking structures, rooftop shelters, or cabinets adjacent to outdoor entrances experience thermal cycling, humidity swings, and transient RF noise that degrade commercial-grade switches. The NEMA TS-2 rating ensures stable performance across those conditions without active cooling fans (which introduce maintenance and failure points in remote locations). Deployment teams often pair this switch with fiber uplinks to the core building network, isolating surveillance-segment electrical noise from mission-critical building systems.
Managed switching capabilities reduce per-camera bandwidth waste and network monitoring overhead. QoS queues can prioritize door-access events and emergency intercoms over continuous video stream — critical when uplink capacity is constrained (e.g., leased-line or wireless backhaul sites). Native SNMP and syslog integrate with NOC dashboards (Nagios, PRTG, Zabbix) for port-health and power-budget alerts. No separate management switch or controller is required.
Transition Networks manufactures this appliance with a focus on mean-time-between-failure (MTBF) and supply-chain stability — a differentiator when sourcing for government contracts or critical-infrastructure sites where vendor consolidation and domestic manufacturing are audit requirements. The five-year warranty reflects confidence in component longevity; most integrators treat this as a ten-year platform investment when properly cooled and isolated from power surges.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the SISPM1040 in multi-building campuses, critical-infrastructure facilities, and parking-structure networks where conventional 24-port switches create sprawl and single points of failure. The port density is genuinely transformative: a 40-camera perimeter system plus 15-door access infrastructure that used to require two separate switch stacks and external PoE cabinets now fits on one appliance with consolidated power and VLAN policy. The managed features matter in practice — QoS can throttle bandwidth hogs (high-bitrate 4K streams) to prevent access-control latency, and native SNMP traps alert the NOC the moment a port loses power (early warning of a camera power-supply failure or network-segment outage). The industrial temperature rating is not theoretical: we've deployed units in non-climate-controlled equipment shelters in the Southwest where ambient temps hit 50°C+ and standard switches would thermal-throttle within hours. NEMA TS-2 certification has directly won transportation and municipal bids where government procurement requires vendor-certified environmental hardening.
Technical Highlights:
- 370W PoE+ Budget at 45 Ports: This math allows for 8–10 high-power devices (60W PTZ or thermal) plus 25–30 standard cameras on one appliance. In real deployments, that eliminates a second switch or external injector cabinet, cutting capex by ~$3,000–5,000 per site and reducing power-supply redundancy complexity.
- 10G Port Capacity: Although most surveillance cameras max out at 100Mbps–1Gbps, the 10G capability future-proofs the switch and provides headroom for network-wide streaming to a central NVR or cloud gateway without bottlenecking. Uplinks can be 10G SFP+ for fiber runs to the core.
- Native VLAN + QoS: Isolate video from access-control and IoT traffic on the same physical switch without a separate L3 gateway. Prevents broadcast storms from poorly configured cameras from affecting door-lock latency or intercom audio.
- SNMP + Syslog: Integrates directly with open-source and commercial NOC platforms (Nagios, PRTG, Grafana). Port-down and power-budget alerts send to email or SMS in real time — operationally critical for unattended remote sites.
- Industrial Temperature & Humidity Range: Rated −10°C to +60°C and up to 95% non-condensing humidity. No active cooling required in most North American climates; passive thermal design means fewer fans, lower noise, and zero maintenance filters in outdoor enclosures.
Deployment Considerations:
- 370W budget is shared across all 45 ports — if you're planning to deploy 45 × 60W devices, you'll exceed the budget. Size the mix conservatively: use a spreadsheet to add per-device power draw and leave 20% headroom for transient spikes. Tools like the Transition datasheet power calculator prevent over-spec surprises at handoff.
- PoE+ power output is prioritized; if load exceeds 370W, the switch will shed low-priority ports. Configure port-priority in management UI to ensure critical access-control panels and emergency intercoms never lose power, even if a rogue high-draw device is plugged in.
- Managed switching requires baseline network administration: VLAN tagging, STP tuning, and ACL maintenance. If your team has no L2/L3 experience, budget for a network engineer or integrator training session during commissioning. Misconfigured VLANs can partition the network and break camera-to-NVR connectivity.
- Uplink capacity to the core network must be sized for aggregate bandwidth. A 45-port camera switch with 20 × 4Mbps streams = 80Mbps sustained load; a single 1Gbps uplink is sufficient, but gigabit fiber (SFP+) is recommended if NVR storage and cloud backup are on the same uplink.
- Place the switch in a climate-controlled equipment room or outdoor enclosure with passive ventilation (no active fans). Active cooling is not required but will extend MTBF if ambient temps regularly exceed 45°C. Avoid direct sunlight on the chassis and provide surge protection on both AC power and network uplinks.
This switch is built for integrators and facilities teams running large surveillance or access-control networks where reliability and operational simplicity are worth the extra upfront cost. If you're managing 30+ IP cameras or 20+ networked access-control panels on a single site, the SISPM1040 reduces sprawl and maintenance overhead compared to cascading smaller switches. Start with the Transition Networks catalog to evaluate UPS-backed power supplies and hardened cabling that pair with this appliance.
