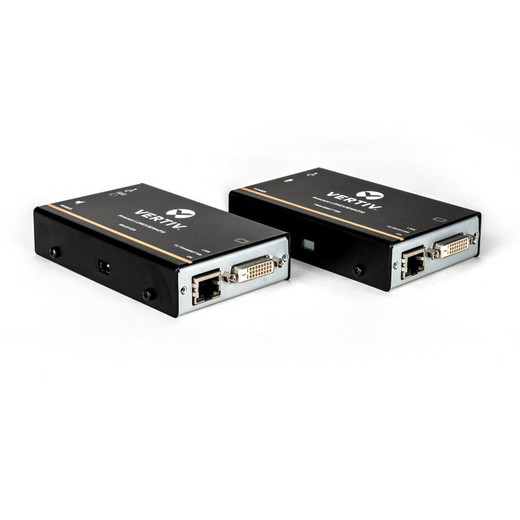

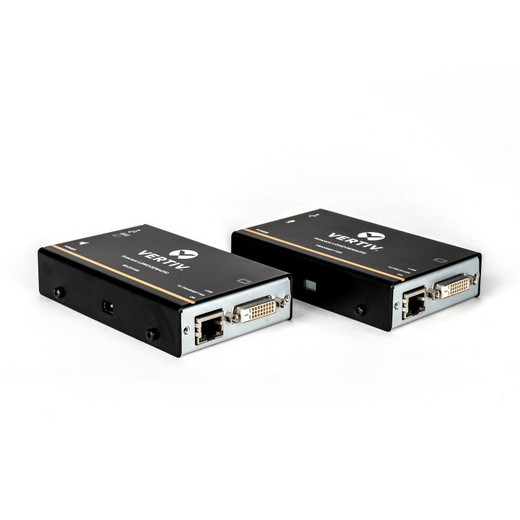

Vertiv LV4010P-001 DVI USB Extender
Overview
The Vertiv LV4010P-001 is a DVI-D and USB extender designed to transmit high-definition video and USB data over a single CAT cable up to 50 meters. This unit is ideal for extending KVM (Keyboard, Video, Mouse) control to remote workstations or control rooms, particularly in surveillance or industrial automation environments where the primary processing unit must be located away from the operator console. It supports USB 1.1 and 2.0, allowing for keyboard, mouse, and other peripheral connectivity.
Compatibility
This extender is designed for use with systems requiring DVI-D video output and USB 1.1/2.0 peripheral connectivity. It is compatible with any source device providing a DVI-D output and USB type B port, and any display device with a DVI-D input. The USB type B port on the transmitter connects to the host computer, while the USB type A port on the receiver connects to peripherals like keyboards and mice.
Installation Notes
The unit operates within a temperature range of 32° to 104°F (0° to 40°C). It requires a power supply (included) with a maximum input of 0.4A. The physical dimensions are 4.7 inches wide, 3 inches deep, and 1 inch high, with a weight of 0.7 lbs, making it suitable for rack-mount or desktop installations. Agency approvals include CE, FCC, and UL.
What's in the Box
- 1x LV4010 Transmitter
- 1x LV4010 Receiver
- 1x Power Supply
