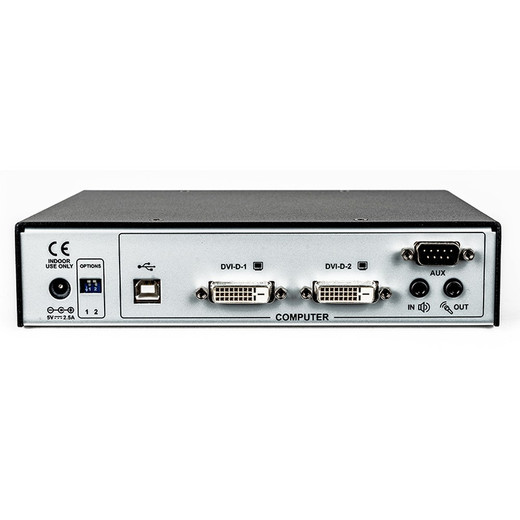

Vertiv HMX5200T-001 Dual DVI-D USB KVM Transmitter
Overview
The Vertiv HMX5200T-001 is a high-performance KVM transmitter designed for extended-distance desktop extension over fiber or copper infrastructure. Part of the Vertiv HMX KVM extender line, it carries dual DVI-D video at full 1920x1200 resolution, USB 2.0 with class control, and bidirectional audio across a single SFP network link — letting you relocate workstations from sensitive or space-constrained areas without sacrificing display fidelity or peripheral functionality. If you are evaluating KVM extension solutions for control rooms, broadcast facilities, or secure compute environments, read through the specs carefully — the SFP link type and USB class control behavior are the two factors most likely to affect deployment fit.
Key Features
- Dual DVI-D at 1920x1200: Both video outputs drive native resolution without downscaling — critical when operators rely on side-by-side displays for monitoring dashboards or multi-application workflows. Dropped resolution at the receiver end is one of the most common complaints with budget extenders; this unit avoids it.
- SFP Network Interface (2x RJ45): Two RJ45 ports give you flexible link options depending on your SFP module selection. Fiber SFP modules extend reach well beyond copper limits, making this a practical choice for inter-building runs or environments with high electrical noise where copper would degrade signal integrity.
- USB 2.0 with Class Control: Four USB Type-A ports with class-level filtering let administrators restrict which device classes (e.g., mass storage, HID) traverse the extension link. In secure environments where you cannot allow arbitrary USB devices at the remote end, this is a load-bearing capability — not a checkbox feature.
- Bidirectional Audio (Speaker and Mic): Full-duplex audio extension means VoIP headsets, intercom systems, and softphone clients function normally at the remote workstation. Useful in control rooms where operators need voice communication without a separate audio infrastructure run.
- 5VDC, 20W Power Adapter: Powered by an included external adapter rather than PoE — confirm your rack or desk deployment has an AC outlet nearby. The 20W draw is modest, but the external brick means one more cable to manage at the transmitter end.
- CE and FCC Certified: Both agency approvals are in evidence, confirming the unit meets emissions and immunity requirements for commercial deployments in North American and European markets.
- Operating Range 0–40°C: Standard commercial temperature envelope — fine for IT rooms and control centers, but not suitable for uncontrolled industrial spaces that swing above 40°C. Pair with appropriate rack enclosure cooling if ambient temperatures are borderline.
Integration and Compatibility
The HMX5200T-001 (often searched as HMX5200T 001) is a transmitter unit — it requires a compatible Vertiv HMX receiver at the remote end to complete the extension link. SFP module selection determines your maximum link distance and media type; verify SFP compatibility with Vertiv before ordering third-party optics. USB class control configuration is managed at the unit level, so plan your peripheral inventory before commissioning. Review Vertiv's KVM accessories and cabling for SFP modules, mounting options, and rack-ear kits that fit the HMX platform.
Frequently Asked Questions
Q: What receiver is required to complete the HMX5200T-001 extension link?
A: The HMX5200T-001 is the transmitter half of the Vertiv HMX KVM extender system. A compatible Vertiv HMX receiver unit is required at the remote (user) end. Consult Vertiv's HMX product line to match the correct receiver SKU for your link type (fiber vs. copper) and feature requirements.
Q: Does the HMX5200T-001 support USB 3.0 devices?
A: No. The USB hub on the HMX5200T-001 supports USB 2.0 with class control. USB 3.0 devices may enumerate at USB 2.0 speeds if backward compatible, but full SuperSpeed (5 Gbps) operation is not supported by this unit.
Q: What SFP modules are compatible with the HMX5200T-001?
A: The unit provides two RJ45 network interfaces with SFP capability; SFP module compatibility should be confirmed directly with Vertiv before purchasing third-party optics. Using untested SFP modules can result in link instability or no-link conditions.
Q: Can the HMX5200T-001 be powered via PoE?
A: No. The HMX5200T-001 requires an external 5VDC power adapter with a 20W output. PoE power delivery is not supported — an AC outlet is required at the transmitter location.
Q: What are the environmental operating limits for the HMX5200T-001?
A: Operating temperature is 0 to 40°C (32 to 104°F) with 10% to 90% non-condensing humidity. Storage temperature extends from -35°C to 70°C (-31°F to 158°F). This is a standard commercial-grade envelope — not rated for outdoor or harsh-industrial environments.
The HMX5200T-001 is the piece of the Vertiv HMX system that lives at the compute end — and the spec that matters most in pre-sales conversations is the USB 2.0 class control, not the video. Most integrators come in focused on the 1920x1200 dual-DVI capability, which is solid, but the USB class filtering is what actually makes or breaks a secure control room deployment where mass storage lockdown is a hard requirement.
Technical Highlights:
- Dual DVI-D 1920x1200: Both outputs run at native resolution simultaneously — no mirroring penalty, no resolution cap at the transmitter. Operators get the same pixel count they would sitting directly at the workstation.
- USB Class Control (USB 2.0): Four USB-A ports with class-level filtering means you can permit HID (keyboard/mouse) while blocking mass storage at the hardware level — a meaningful security control that software-only solutions can't reliably enforce.
- 5VDC External Adapter (20W): The external brick keeps the unit's footprint small, but it also means your cable management plan needs an AC run to the transmitter. Budget for a local PDU tap or outlet if the transmitter is rack-mounted away from an accessible circuit.
Deployment Considerations:
- This is a transmitter-only unit — you must pair it with a compatible Vertiv HMX receiver. Confirm receiver SKU and SFP module compatibility before finalizing the BOM; a mismatch here means no link at commissioning.
- The 0–40°C operating limit is the hard ceiling. If the transmitter is going into a comms closet with marginal cooling, measure ambient temperature under load before install — sustained operation above 40°C is outside the rated envelope.
Best fit for broadcast control rooms, government secure workstation extensions, and financial trading floors where dual-display fidelity and peripheral class restriction both need to be enforced at the hardware layer — not patched in software after the fact.
