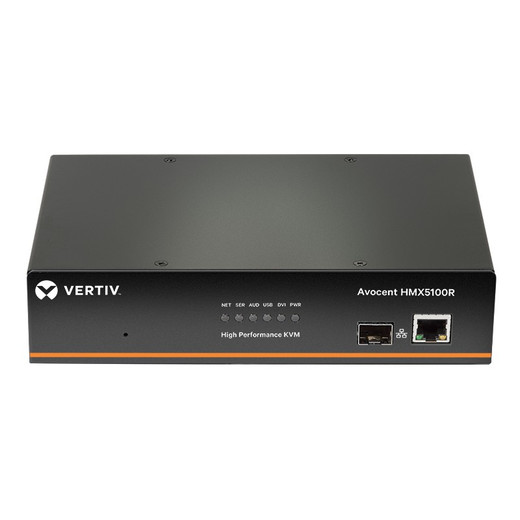

Vertiv HMX5100R-001 High-Performance KVM Receiver Unit
The Vertiv HMX5100R-001 is a single-head DVI-D KVM receiver designed for high-performance KVM-over-IP deployments where operators need full 1920x1200 desktop resolution, four USB peripheral ports, and audio support at the remote workstation end. Part of the Vertiv HMX KVM-over-IP line, the HMX5100R-001 (often searched as HMX5100R 001) functions as the user-end receiver in an extender pair — sitting at the operator console while the transmitter unit lives at the host machine.
Overview
KVM-over-IP receivers are the half of the equation that most integrators underspec. The HMX5100R-001 addresses this by delivering full 1920x1200 DVI-D video, four USB 2.0 Type-A ports with Class Control hub support, and both speaker and microphone audio — all over a standard IP network via dual RJ45 connections. This makes it appropriate for control rooms, broadcast facilities, secure operations centers, and any environment where operators need full-resolution access to remote hosts without a local PC at the console. If you're evaluating KVM over IP solutions for multi-user or multi-host environments, the HMX series supports those architectures through a compatible matrix switching controller.
Key Features
- 1920x1200 DVI-D Video Output: Native support for 1920x1200 (WUXGA) via a single DVI-D connection — that's the resolution tier you need when operators are running CAD, video walls, or multi-window surveillance dashboards. DisplayPort or HDMI displays can be driven via passive DVI adapters where supported by the display.
- Four USB 2.0 Type-A Ports with Class Control: The four USB Type-A ports support USB 2.0 with Class Control, meaning you can selectively permit or restrict device classes (keyboards, mice, mass storage, audio) at the switch level. This matters in secure environments where you need to prevent unauthorized USB storage access at operator stations without disabling input peripherals.
- Dual RJ45 Network Interfaces: Two RJ45 ports give you network redundancy or the ability to bridge the receiver into two separate network segments — useful in installations where the KVM traffic VLAN needs to be separated from general office LAN while both share the same physical device location.
- Audio I/O (Speaker and Microphone): Integrated speaker output and microphone input extend full audio capability to the remote operator console. This is relevant in broadcast, dispatch, and command center deployments where operators need voice communication or audio monitoring as part of their session — not just video and keyboard/mouse.
- SFP Slot for Fiber Extension: The SFP slot allows the receiver to connect over fiber rather than copper, extending reach well beyond the 100m copper Ethernet limit. In large facilities — campuses, data centers, utility operations centers — this lets you place operator consoles hundreds of meters from the equipment room without signal degradation.
- 5VDC / 20W Power via External Adapter: The unit draws up to 20W at 5VDC from an included power adapter rather than PoE. That keeps it compatible with any standard outlet, but it does mean you're running a power cable to each receiver location — plan for outlet access at console desks.
- CE and FCC Agency Approvals: CE and FCC marks confirm the unit meets electromagnetic compatibility requirements for North American and European deployments. This satisfies procurement requirements in enterprise, government, and regulated environments that mandate certified equipment.
- Operating Temperature 0–40°C (32–104°F), 10–90% RH Non-Condensing: Rated for standard indoor commercial environments. Not rated for industrial floor temperatures or outdoor enclosures — keep receiver units in conditioned spaces. The storage range extends to -35°C / +70°C, so shipping and warehousing in cold or hot climates isn't a concern.
Integration and Compatibility
The HMX5100R-001 is a receiver unit designed to pair with a compatible Vertiv HMX transmitter. In a point-to-point configuration, one transmitter and one receiver extend a single host to a single remote console. In a matrix configuration with a compatible Vertiv HMX matrix switch, multiple receivers can access multiple hosts — the receiver authenticates to the matrix and operators select their target host from a connection menu. USB Class Control enforcement is managed at the switch or controller level. For facilities planning fiber backbone runs, the SFP slot accepts standard SFP modules (verify module compatibility with Vertiv for your specific fiber type and distance requirement). Network infrastructure should be configured to support jumbo frames and QoS prioritization for KVM traffic VLANs to maintain low-latency video performance. Review your PoE and managed switch infrastructure to confirm appropriate VLAN and QoS support before deployment.
Frequently Asked Questions
Q: Does the HMX5100R-001 support PoE, or does it require a separate power adapter?
A: The HMX5100R-001 requires a 5VDC external power adapter (included) rated at 20W maximum. It does not support PoE, so you will need a standard power outlet at each receiver location.
Q: What video resolution does the HMX5100R-001 support?
A: The HMX5100R-001 supports a maximum video resolution of 1920x1200 (WUXGA) over a single DVI-D connection.
Q: Can the HMX5100R-001 be used with fiber optic cabling?
A: Yes. The HMX5100R-001 includes an SFP slot that allows connection over fiber, extending reach beyond the 100m copper Ethernet limit. Verify compatible SFP module specifications with Vertiv for your fiber type and distance.
Q: What USB standard does the HMX5100R-001 support, and can USB device classes be restricted?
A: The HMX5100R-001 supports USB 2.0 across its four Type-A ports, with Class Control capability. This allows permitted USB device classes to be selectively managed — relevant for secure environments where mass storage access at consoles must be restricted.
Q: What are the operating environment requirements for the HMX5100R-001?
A: The unit is rated for 0–40°C (32–104°F) operating temperature and 10–90% relative humidity, non-condensing. It is designed for conditioned indoor environments and is not rated for industrial or outdoor use.
Q: Does the HMX5100R-001 support audio at the remote console?
A: Yes. The HMX5100R-001 includes both speaker output and microphone input, extending full bidirectional audio to the operator console location.
The HMX5100R-001 is the console-side receiver in Vertiv's HMX KVM-over-IP extender platform. What sets it apart at this tier is the combination of 1920x1200 DVI-D output, four USB 2.0 ports with Class Control, dual RJ45 interfaces, and an SFP slot for fiber — all in a single unit. If you're specifying the receiver end of a KVM extension run, those four features together cover the overwhelming majority of what operations and security teams actually need at the console.
Technical Highlights:
- 1920x1200 DVI-D: WUXGA resolution is the threshold for comfortable multi-window console work — running two or more application windows side-by-side on a 24-inch display without pixel-density compromise. Most control room operators notice the step down from 1920x1200 to 1080p when working with detailed dashboards.
- USB Class Control on 4 Ports: The Class Control enforcement at the hub level means IT can lock out USB mass storage at the receiver without pulling keyboard and mouse access — this is a compliance requirement in many government and financial operations centers and it's built in rather than bolted on.
- SFP Slot for Fiber: Copper RJ45 tops out at 100m under ideal conditions. The SFP slot eliminates that constraint for facilities where the equipment room is several hundred meters from the operator floor — a common scenario in utility operations centers, broadcast master control, and large campus deployments.
Deployment Considerations:
- The 5VDC / 20W power adapter requirement means console desk locations need outlet access — this is often overlooked in raised-floor control room builds where power planning focuses on rack equipment. Confirm outlet availability at each receiver position before finalizing desk layouts.
- Operating temperature ceiling is 40°C (104°F). Receiver units installed in enclosed console furniture or poorly ventilated desk risers can exceed this threshold during sustained operation — verify airflow at the installation point, especially in warm climates without full HVAC coverage to the console area.
The HMX5100R-001 is a solid fit for secure operations centers and broadcast master control rooms where operators need WUXGA resolution, fiber reach to a distant equipment room, and enforced USB device class restrictions at the console — all without deploying a full PC at each seat.
