Vertiv HMX5100T-001 Single DVI-D USB Audio KVM Transmitter over IP
Overview
The Vertiv HMX5100T-001 is the transmitter (TX) unit of the Vertiv HMX series high-performance KVM-over-IP extender system, designed for enterprises and data center operators who need pixel-accurate control of workstations or servers from a remote receiver unit over a standard IP network. Where traditional KVM extenders top out at 1080p, the HMX5100T-001 supports up to 1920x1200 resolution over a single DVI-D connection — covering not just full HD monitors but also WUXGA displays common in broadcast, CAD, and control-room environments. If your workflow involves moving workstation access across a building or campus without signal degradation, this is the unit that sits at the source end of that link.

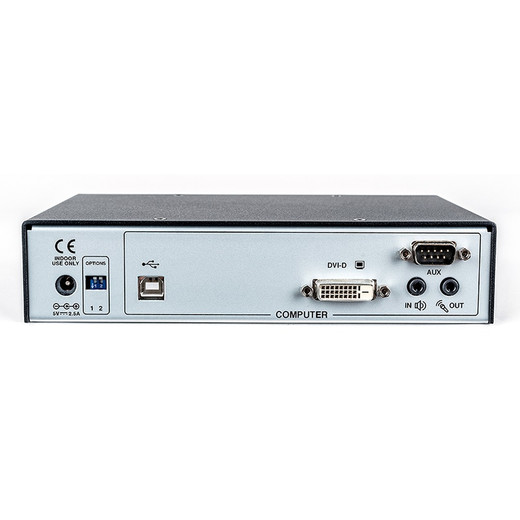

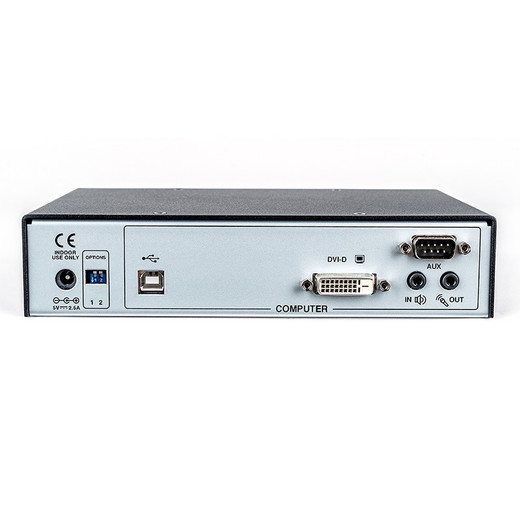

The HMX5100T-001 (often searched as HMX5100T 001) connects to the source computer via USB-B for keyboard and mouse input and a single DVI-D port for video. On the network side, dual RJ45 interfaces give you flexibility to run on separate network paths or take advantage of the SFP-capable infrastructure common in data center environments. Explore the full Vertiv KVM and infrastructure catalog to see how this TX unit pairs with corresponding RX receivers and matrix switches.
Key Features
- 1920x1200 DVI-D Video: WUXGA resolution support means you're not limited to 1920x1080 — designers, traders, and control-room operators running WUXGA monitors get full native resolution without downscaling artifacts. One DVI-D connection handles it all.
- Dual RJ45 Network Interfaces: Two RJ45 ports let you connect to separate network paths for redundancy or segmented traffic — useful in broadcast or military-grade control rooms where a single network failure cannot take down operations. Both interfaces can handle the video and USB payload over standard IP switching infrastructure.
- 4x USB Type-A Ports with USB 2.0 Class Control: Four downstream USB-A ports support keyboards, mice, and USB peripherals at the receiver end. USB 2.0 Class Control means the system manages device classes (HID, audio, storage) rather than passing raw USB packets — a deliberate design choice that improves reliability and reduces latency on KVM-class peripherals over extended distances. If you need isochronous USB device support (certain webcams, audio interfaces), verify compatibility before deployment.
- Audio Extension — Speaker and Mic: Bidirectional audio (speaker output and microphone input) travels alongside video and USB over the same IP link. For intercom-integrated control rooms or operators who need headset support at the remote position, audio extension is built in — no separate audio-over-IP hardware required.
- 5VDC / 20W Power Adapter: The unit draws up to 20W via an external 5VDC power adapter. It does not draw power from the USB-B connection to the source computer, which is correct for server and workstation environments where USB power delivery is not guaranteed. Plan for a local power outlet or rack-mounted power strip at the TX installation point.
- CE and FCC Certified: Agency approvals for CE and FCC mean the unit meets electromagnetic emissions and safety standards for commercial deployment in North America and the EU — a baseline requirement for enterprise procurement and facilities management sign-off.
- 0–40°C Operating Range: Rated from 0 to 40°C (32–104°F), the HMX5100T-001 is designed for controlled indoor environments — server rooms, equipment closets, and broadcast racks with active cooling. It is not rated for uncontrolled outdoor or industrial environments. Storage temperature extends to -35°C / 70°C for transit and warehousing.
- 10–90% Non-Condensing Humidity: The humidity envelope covers typical data center and office environments. Avoid installations in high-moisture areas without supplemental enclosure protection — condensation is an explicit exclusion from the rated range.
Integration and Compatibility
The HMX5100T-001 is the TX half of a point-to-point or matrix KVM-over-IP system. It requires a corresponding Vertiv HMX RX receiver unit at the remote end and operates over a managed IP network — gigabit switching infrastructure is strongly recommended to sustain 1920x1200 uncompressed or lightly compressed video streams without frame drops. The dual RJ45 ports support integration into redundant network topologies. For larger deployments involving multiple TX and RX units managed through a central controller, verify that the HMX5100T-001 firmware version is compatible with the target HMX manager or matrix switch platform before ordering. Pair with a KVM switch or matrix controller to scale beyond point-to-point operation. For power delivery at the rack level, review rack PDU options compatible with the 5VDC adapter requirement. If you're evaluating the full KVM extender category, note that DVI-D TX units like this one are the right choice for legacy workstations and servers without DisplayPort — newer GPU platforms may warrant a different interface variant. For structured cabling and SFP infrastructure that supports the dual-RJ45 network interfaces, consult your network switching infrastructure to confirm port density and PoE allocation are not affected by adding KVM-over-IP traffic to the same switching fabric.
Frequently Asked Questions
Q: What video resolution does the HMX5100T-001 support?
A: The HMX5100T-001 supports up to 1920x1200 (WUXGA) over a single DVI-D connection. This covers both standard 1080p (1920x1080) and WUXGA monitors.
Q: Does the HMX5100T-001 include a receiver unit?
A: No. The HMX5100T-001 is the transmitter (TX) unit only. A compatible Vertiv HMX RX receiver unit is required at the remote desktop end to complete the KVM extension link.
Q: What USB standard does the HMX5100T-001 support for peripherals?
A: The unit provides 4x USB Type-A ports supporting USB 2.0 with Class Control. This covers HID-class peripherals (keyboard, mouse) and most standard USB audio devices. Isochronous USB devices should be verified for compatibility before deployment.
Q: What are the power requirements for the HMX5100T-001?
A: The HMX5100T-001 requires an external 5VDC power adapter with a maximum output of 20W. The unit does not draw power from its USB-B connection to the source computer.
Q: Is the HMX5100T-001 suitable for outdoor or industrial environments?
A: No. The rated operating temperature is 0 to 40°C (32–104°F) in 10–90% non-condensing humidity, which is appropriate for controlled indoor environments such as data centers, server rooms, and broadcast equipment racks. It is not rated for outdoor or high-moisture installations.
Q: What agency certifications does the HMX5100T-001 carry?
A: The HMX5100T-001 carries CE and FCC certifications, meeting electromagnetic emissions and safety requirements for commercial deployment in North America and the European Union.
The HMX5100T-001 is a transmitter unit I'd specify specifically for control rooms and trading floors where WUXGA monitors (1920x1200) are the standard display format and where the source workstation needs to live in a secured equipment room rather than under the operator's desk. The DVI-D interface and 1920x1200 ceiling mean you're not bottlenecked to consumer HD resolutions — that extra vertical resolution matters more than it sounds in multi-application trading or SCADA environments.
Technical Highlights:
- 1920x1200 DVI-D Video Output: WUXGA support is the key differentiator here — most IP KVM extenders at this price tier cap at 1080p. If your monitors are WUXGA (common in financial workstations and broadcast production), this is the spec to match.
- Dual RJ45 Network Interfaces: Two independent RJ45 connections allow the unit to be wired into separate network paths — useful in redundant or segmented network topologies without adding a separate NIC or switch at the TX location.
- USB 2.0 Class Control on 4x USB-A: Class Control means the system manages USB device types at the protocol layer rather than passing raw USB. HID peripherals are rock-solid in this mode; plan accordingly if your operator position uses non-HID USB devices that require raw USB pass-through.
Deployment Considerations:
- The 5VDC / 20W external power adapter requirement means you need a local power source at the TX mounting point — factor this into your rack or wall-mount layout before installation. There is no PoE or USB-bus power option on this unit.
- Operating temperature ceiling is 40°C (104°F) — adequate for a cooled equipment room but not an untreated IDF closet in a warm climate. Verify ambient temperature at the TX installation point before commissioning.
The HMX5100T-001 is the right TX unit for a financial trading floor or broadcast control room retrofit where WUXGA workstations need to be physically separated from operator positions — the dual RJ45 and 1920x1200 DVI-D combination handles both the network redundancy and display fidelity requirements of those environments without requiring additional conversion hardware.
