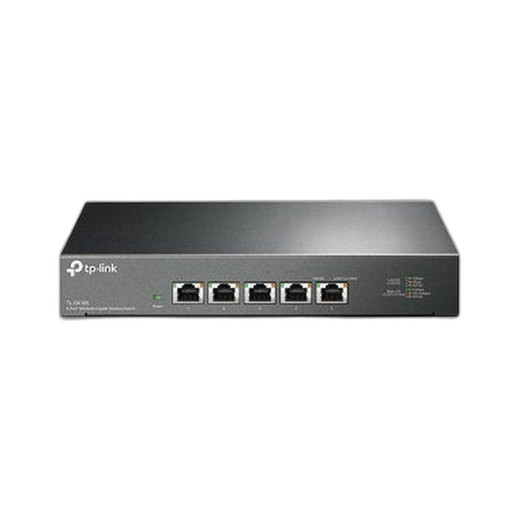

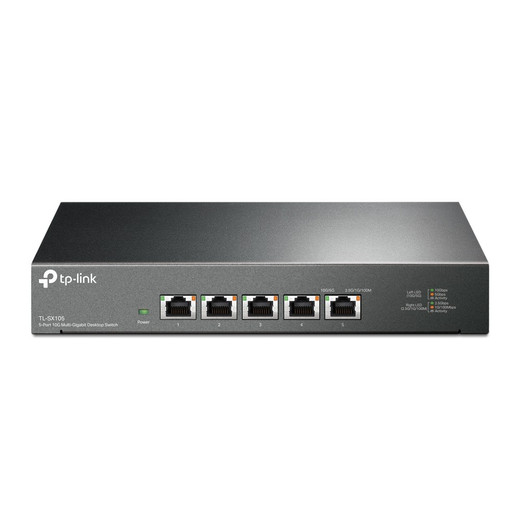

TP-Link TL-SX105 5-Port 10G Multi-Gigabit Desktop Switch
Overview
The TL-SX105 is a 5-port 10G multi-gigabit desktop switch with RJ45 connectors and a steel case enclosure. It provides plug-and-play connectivity for surveillance systems, IP camera clusters, and network infrastructure requiring high-speed Ethernet aggregation without rack mounting. Each of the five 10G ports delivers up to 10 Gbps per connection, enabling simultaneous multi-camera streaming or backbone uplinks without bottlenecking bandwidth-heavy deployments.
Compatibility
The TL-SX105 works with any IP camera, NVR, storage server, or network appliance using standard RJ45 Ethernet connectors. It is compatible with network video recorders and IP cameras that require 1G or 10G connectivity. The switch supports standard TCP/IP networking and integrates into existing VMS architectures without specialized drivers or configuration—it is a passive, standards-based Layer 2 switching fabric.
Installation Notes
Desktop placement requires a stable, well-ventilated surface. All five ports are active simultaneously; connect cameras, NVRs, or uplinks using standard Ethernet patch cables (Cat5e minimum for 1G, Cat6/Cat6a recommended for sustained 10G performance). The steel case provides basic protection but does not offer environmental sealing—keep the switch indoors or in protected enclosures if deployed in humid or outdoor-adjacent environments. Power consumption and thermal dissipation are minimal for a desktop form factor, but ensure adequate airflow around the unit during continuous operation.
What's in the Box
- 1x TP-Link TL-SX105 5-Port 10G Switch
- 1x Power adapter
- 1x Quick-start guide
