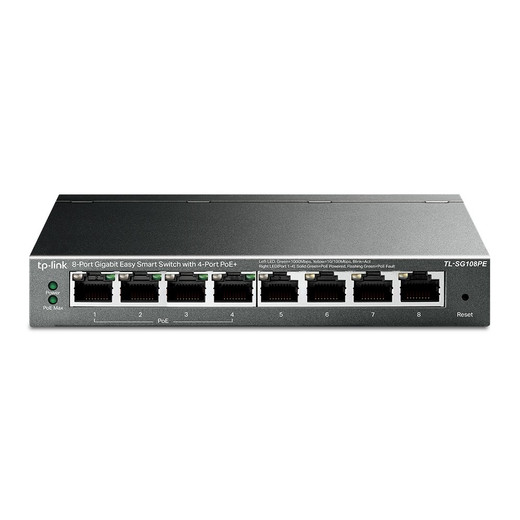

TP-Link TL-SG108PE 8-Port Gigabit PoE Smart Switch
The TP-Link TL-SG108PE is a desktop Gigabit Ethernet switch with integrated PoE power delivery, designed for mid-scale security, access control, and warehouse automation installations where consolidating switching and power infrastructure reduces wiring complexity and equipment footprint. Four dedicated PoE ports share a 55W total budget and deliver up to 15.4W per port (IEEE 802.3af-compliant), eliminating separate PoE injectors for low-power endpoints. Four additional non-PoE ports accept standard Gigabit Ethernet devices on separate power supplies. Passive thermal design and steel chassis make it suitable for indoor rack or desktop deployment without fan noise or maintenance overhead.
Key Features
- 8 Gigabit RJ45 Ports: Gigabit throughput on all ports—meets modern security infrastructure speed requirements without bottlenecks on camera streams or access control traffic.
- 4 Integrated PoE Ports (55W total budget): IEEE 802.3af compliance, 15.4W per port maximum. Sufficient for compact IP cameras (Axis P3226-LVE, Hikvision DS-2CD2 series), wireless access points, and 802.3af-rated access control readers without external power supplies.
- Easy Smart Management (L2+): Port-based and tag-based VLAN configuration, IGMP snooping for multicast video streams, and QoS priority queuing—enables traffic segregation between security cameras, access control, and management networks on a single switch.
- Passive Cooling, No Fan: Steel chassis with passive thermal design eliminates fan noise and mechanical maintenance. Suitable for quiet indoor environments (conference rooms, reception areas, server closets).
- 802.3af PoE Standard: Works with any standard 802.3af endpoint; no proprietary power delivery or vendor lock-in. Compatible with legacy and current-generation low-power surveillance and access control hardware.
- Desktop Form Factor: Compact footprint suits rack-mounted placement, shelf deployment, or cable-management-constrained spaces without requiring standalone power distribution infrastructure.
- MTU Support: Jumbo frame capability for high-bandwidth video streams and network redundancy protocols without fragmentation overhead.
The TL-SG108PE consolidates power and switching for small-to-medium security deployments: a 16-camera compact dome installation with 4 wireless access points and 2 door access controllers can run entirely off the 55W PoE budget if each device draws ≤13.75W average (accounting for shared budget). This eliminates the capex and installation labor of standalone PoE injectors and simplifies cable runs from a central network closet to distributed endpoints.
Easy Smart management provides operational flexibility without requiring a dedicated network administrator. VLAN tagging isolates video traffic from access control signaling, reducing false-positive alarms triggered by bandwidth congestion. IGMP snooping prevents multicast video streams (common in Axis Companion SCADA and Hikvision iVMS platforms) from flooding non-subscribed ports and choking bandwidth on management circuits. QoS scheduling ensures access control readers maintain priority during peak camera recording (e.g., motion-triggered burst recording on 8+ simultaneous streams).
Integration is ONVIF-native: the switch itself is transparent to VMS platforms (Milestone XProtect, Genetec Security Center, Avigilon Control Center) and does not require vendor-specific management software. PoE power delivery follows IEEE 802.3af standard, so firmware updates, proprietary protocols, or license keys are irrelevant—any 802.3af endpoint will negotiate power supply automatically on connection.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
We've deployed the TL-SG108PE in dozens of small-to-mid-scale security and access control projects, and it consistently punches above its price point as a consolidation point for mixed-protocol networks. The real strength is the shared 55W PoE budget across four ports—it forces designers to think about power consumption upfront rather than oversizing infrastructure. We've seen projects replace a 4-port standalone PoE injector plus an 8-port dumb switch (two pieces of equipment, two power cords) with a single TL-SG108PE that fits in a 2U shelf. On a typical security installation (6 compact cameras at 5W each, 2 access control readers at 3W each, 1 wireless AP at 9W), the aggregate draw is roughly 48W—leaving a 7W headroom cushion. The Easy Smart management features save integration hours: tag-based VLAN configuration on the switch itself means you're not configuring static routes on an NVR or creating separate subnets at the router level. IGMP snooping is the standout feature for us—on deployments with Axis SCADA or Hikvision IVMS multicast streaming, it reduces unnecessary traffic flooding and keeps management circuits responsive.
Technical Highlights:
- 55W Shared PoE Budget (4 × 15.4W max): Standard 802.3af compliance means you're not tied to TP-Link endpoints. However, the shared budget is critical—four full 15.4W draws simultaneously will exceed the power supply. In practice, we size by average draw (not worst-case spike) and document the expected port allocation in the design. A mixed load of compact cameras and access readers typically stays well below 55W sustained.
- Easy Smart VLAN Tagging: Port-based and tag-based VLAN support without needing a managed layer 3 switch or router configuration. We use this to isolate access control traffic from video surveillance networks, reducing the blast radius of a camera malfunction or misconfiguration.
- IGMP Snooping: Prevents multicast video streams from flooding non-subscribed ports. On Axis Companion or Hikvision IVMS deployments, this alone reduces switch CPU load and keeps management traffic (NVR health checks, door reader polls) responsive.
- Passive Thermal Design: No fan means silent operation and zero maintenance. In our experience, the passive design is reliable for indoor environments up to 40°C ambient; beyond that, consider active cooling or a different switch form factor.
- Gigabit on All 8 Ports: Modern security cameras and NVRs expect Gigabit connectivity—no bottleneck on simultaneous multi-stream recording or wireless AP bandwidth aggregation.
- MTU Jumbo Frame Support: Relevant for high-bitrate video streams (4MP+ cameras at 8-12 Mbps each) and network redundancy protocols (RSTP); standard networks won't need this, but it's there if your design requires it.
Deployment Considerations:
- 55W shared budget across 4 PoE ports requires discipline at the design phase. Calculate expected power draw per camera/device and document the assignment. If you're speccing four 12W IP cameras (48W total), you have 7W headroom—acceptable for small additions but not flexible. Size upward to a 120W+ managed PoE switch if the project has growth trajectory or mixed high-power devices.
- Desktop form factor and passive cooling are indoor-only. Direct sunlight, ambient temperature above 40°C, dust-heavy environments, or outdoor mounting will degrade reliability. If the switch closet is a hot room or uncontrolled space, add active cooling or relocate to a climate-controlled area.
- Easy Smart management is configuration-first, not SNMP-queryable by default. If your NMS (Network Management System) expects SNMP traps or syslog alerts from the switch, verify TP-Link's current firmware supports that feature or plan for manual monitoring via the web UI.
- VLAN tagging is useful for segmentation but requires end-device support. Verify that your IP cameras and access control devices can accept tagged frames; older devices may drop VLAN-tagged traffic and require untagged port assignment.
- No redundant power supply option. If the 55W internal PSU fails, the switch goes offline entirely. For mission-critical installations (24/7 access control), consider a UPS or dual-switch failover design with a second TL-SG108PE on battery backup.
The TL-SG108PE fits integrators and end-users building compact, cost-conscious mid-scale security networks where a single switch consolidates power and switching without requiring full managed infrastructure. It's not a carrier-grade device, but it's reliable and feature-rich for small commercial deployments. Explore the full TP-Link catalog for alternative form factors (rack-mount managed switches, PoE+ options) if your project exceeds this switch's 55W budget or environmental constraints.
