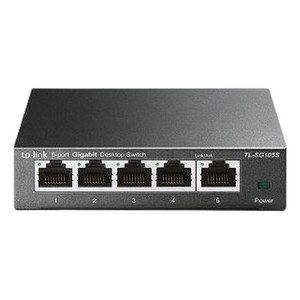

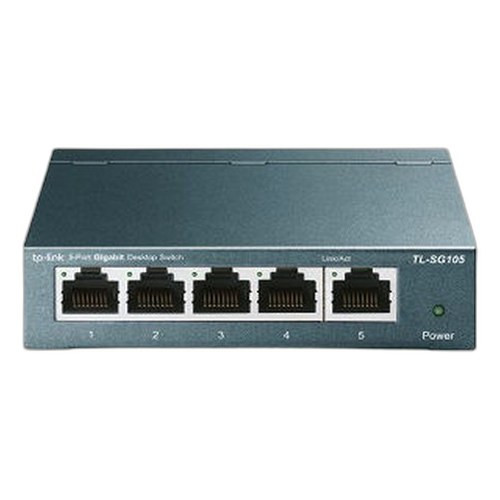

TP-Link TL-SG105 5-Port Gigabit Unmanaged Desktop Switch
The TP-Link TL-SG105 is a 5-port gigabit Ethernet switch designed for small-scale security and business networks that need port expansion without management complexity. Each RJ45 port auto-negotiates 10/100/1000 Mbps speeds, eliminating manual configuration and compatibility guesswork. With 25 Gbps switching capacity and zero-latency bridging, the TL-SG105 handles simultaneous multi-stream traffic from IP cameras, NVRs, wireless access points, and access control panels without bottlenecks. Because it's unmanaged, there's no IP address assignment, no web interface, no VLAN setup — power on and bridge traffic immediately. The compact desktop form factor fits under desks, in server closets, or beside wall-mounted NVRs; steel chassis provides basic EMI shielding suitable for indoor office, retail, and integration environments.
Key Features
- 5 Gigabit RJ45 Ports: 10/100/1000 Mbps auto-negotiation on each port. No manual speed or duplex selection — adapts automatically to connected device capabilities.
- 25 Gbps Switching Capacity: Full-duplex bridging between all ports simultaneously — supports 3-4 concurrent HD IP camera streams plus NVR uplink without frame loss.
- Auto MDI/MDI-X: Standard and crossover Ethernet cables work identically — eliminates the need to stock two cable types or use crossover adapters.
- Unmanaged Architecture: Zero configuration required. No IP address, no login credentials, no firmware updates to manage — connect and operate.
- 12V Power Supply: Low-voltage external adapter (12V/1A or 12V/1.5A) — safe for office environments and easily backed up with standard 12V UPS systems.
- Compact Desktop Form Factor: 209 × 126 × 26 mm footprint stacks easily in tight spaces; no rack rails or wall mounting required.
- CE/FCC/RoHS Certified: Meets North American and European regulatory standards for commercial deployment.
- Operating Range 0–40°C: Rated for indoor and climate-controlled environments; not suitable for unheated outdoor enclosures or direct sun exposure.
The TL-SG105 bridges IP cameras, network video recorders, wireless access points, network-attached storage, and access control panels without requiring VLAN isolation, port mirroring, or Spanning Tree configuration. Use it as a local stub switch to extend port capacity when your primary network infrastructure runs out of connections, or daisy-chain multiple units on a flat, trusted LAN. Auto MDI/MDI-X on all ports means you never encounter a cable incompatibility — standard straight-through cables work with any connected device.
This switch is not suitable for environments requiring advanced features: VLAN port separation, IGMP multicast snooping, port mirroring for packet capture, redundancy through Spanning Tree, or management via SNMP. If your deployment demands traffic isolation between camera subnets, prioritized access control traffic, or failover protection, specify a managed gigabit switch instead. For simple flat networks with trusted devices (single office, small retail location, lab environment), the TL-SG105 eliminates unnecessary licensing and management overhead while delivering reliable gigabit connectivity at minimal cost.
Power the unit via the included 12V/1A or 12V/1.5A adapter — both are compatible. Operating temperature range of 0–40°C (32–104°F) means keep this switch indoors or in climate-controlled electrical closets. Do not install in outdoor equipment cabinets, unheated pump houses, or exposed ceiling plenums without thermal management. Each port supports standard Cat5e and Cat6 cabling; gigabit throughput is achievable with quality Cat5e runs up to 100 meters on properly terminated solid-core or stranded cable.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
We've deployed the TP-Link TL-SG105 in dozens of small-to-medium camera installations, retail locations, and office network expansions. It's a no-nonsense device that does one thing exceptionally well: move gigabit traffic between five devices without any operational overhead. The real value isn't the switching capacity — it's the absence of a management burden. On a 16-camera install where the primary switch is in a remote closet, the TL-SG105 placed near a cluster of wall-mounted cameras eliminates cable runs back to the main rack, reduces latency, and costs less than a managed switch plus the engineering time to configure VLANs and QoS policies. We see this spec'd most often as a local extender for NVR connections, access control panels, and camera groups in geographically dispersed areas of a building — situations where a single flat network segment is acceptable and simplicity is valued over granular control.
Technical Highlights:
- 25 Gbps Switching Capacity with Full-Duplex Bridging: In real-world deployments, this means you can run three simultaneous 2MP IP camera streams (each ~4–6 Mbps H.265) plus a 1080p wireless access point uplink without queuing or frame drops. The backplane doesn't prioritize traffic — all ports share the switching fabric equally. For 4K/8MP cameras or high-bitrate H.264 configurations, the 25 Gbps ceiling is measured in total bidirectional throughput, not per-port bandwidth.
- Auto-Negotiation (10/100/1000 Mbps): Each port independently detects the connected device's speed capability. A legacy 100 Mbps device (older IP intercom, old wireless access point) can coexist on the same switch with gigabit cameras without manual configuration or speed downgrade of other ports. This flexibility is critical when integrating legacy equipment into modernized networks.
- No Management Overhead: Unlike managed switches, there's no web interface, SNMP agent, spanning tree convergence delay, or firmware update cycle. For a simple network, this means faster deployment and zero ongoing training for operational staff. The trade-off is you lose visibility into port statistics, packet errors, and traffic patterns — acceptable on trusted, internal LANs.
- 12V External Power Supply: Unlike PoE injectors or managed switches that consume 30–60W, the TL-SG105 draws less than 5W. This makes it ideal for inclusion in a small 12V UPS system or battery backup configuration. On critical sites (24-hour recording, access control), the low power draw extends backup runtime significantly.
Deployment Considerations:
- Unmanaged switches provide no broadcast storm protection or loop detection — if you accidentally create a switching loop (daisy-chaining back to the primary switch via multiple paths), the loop will saturate the TL-SG105 and cause packet duplication. Use this switch only on networks where you control the topology and can ensure a tree structure. On larger networks, require a managed switch with Spanning Tree Protocol (STP) enabled.
- The 5-port form factor is tight. If you need to add PoE injectors, terminal blocks, or patch panel connectors in the same cabinet, space becomes constrained. Plan the electrical layout before installation — account for cable slack and adapter positioning around the compact chassis.
- Operating temperature upper limit of 40°C (104°F) is a real constraint in non-climate-controlled spaces. If your electrical closet reaches 45°C during summer or heavy equipment loading, the TL-SG105 is undersized. Plan for a managed switch or active cooling in high-temperature environments.
- This is a broadcast-transparent device — it has no management interface to monitor port errors, collisions, or uptime. If a camera or NVR drops off the network, you'll detect it via the IP device's status page or end-user report, not via switch diagnostics. On critical deployments, use a managed switch to proactively identify failing ports.
- Auto MDI/MDI-X is standard on modern RJ45 gear, but some industrial or legacy IP cameras predate this feature. If you're connecting a camera from 2008 or earlier, verify crossover cable support in the datasheet — the TL-SG105 will not auto-correct a speed or duplex mismatch.
The TP-Link TL-SG105 is ideal for integrators and facility managers building small networks where simplicity, low cost, and zero management are priorities. If your deployment is under 8 cameras, doesn't require inter-subnet isolation, and sits on a trusted internal LAN, this switch eliminates unnecessary complexity. For larger or security-critical installations, see the TP-Link catalog for managed gigabit options with VLAN, QoS, and redundancy features.
