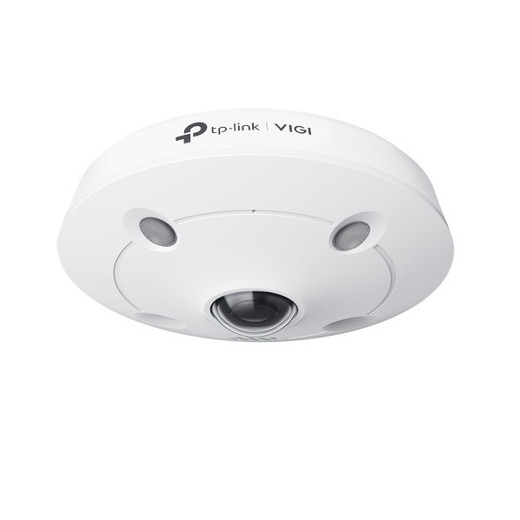

TP-Link INSIGHT S655I VIGI 5MP IR Fisheye Network Camera

TP-Link INSIGHT S655I 5MP IR Fisheye Network Camera

Overview

The TP-Link INSIGHT S655I is a 5MP fisheye camera built for indoor and semi-outdoor environments where you need full 360-degree panoramic coverage without running multiple devices. The 1.44mm fixed lens captures a complete hemisphere in a single frame, making it a cost-effective alternative to multi-camera arrays in corridors, retail floors, warehouse interiors, and lobby spaces. IP67 and IK10 ratings mean it can handle dust, light spray, and moderate impact — choose this when standard indoor domes won't survive the environment.

Key Features

• 5MP 360° Panoramic Capture: Single 1.44mm fisheye lens delivers complete panoramic coverage without blind spots or pan-tilt overhead. One camera replaces 2–3 narrow-field units, cutting hardware and network costs in multi-camera deployments.
• 1/2.7 Progressive Scan CMOS: Eliminates motion artifacts and tearing — critical when you're watching fast-moving subjects (people, forklifts) on a single fisheye feed.
• 120dB WDR (Wide Dynamic Range): Handles mixed lighting (bright skylights + dim corners) in retail and warehouse settings without blown-out or crushed-shadow zones. Combined with 3D DNR (noise reduction), you get usable detail even when IR turns on at dusk.
• H.265+/H.265/H.264+/H.264 Multi-Codec Support: H.265+ compression cuts bandwidth and storage requirements roughly 50% compared to H.264 — a real win if you're streaming this feed to multiple NVRs or edge devices simultaneously. Legacy systems can fall back to H.264 without reconfiguration.
• IR LED with 10m Range: Built-in infrared illumination extends coverage to 10 meters at night without external IR emitters. Smart IR automatically adjusts brightness to prevent white-out on nearby metallic surfaces or reflective warehouse floors.
• IP67/IK10 Durability: IP67 protects against dust ingress and water spray (but not submersion). IK10 impact rating absorbs bumps from cart impacts or rough handling during mounting — no fragile dome to worry about. Mount it in a loading dock or high-traffic retail zone without fear.
• Built-in Mic and Speaker: Two-way audio lets you issue warnings or announcements directly from the VMS or mobile app — useful for retail loss prevention or warehouse traffic direction. 10m uncompressed audio range covers most indoor spaces.
• MicroSD Card Slot (up to 512GB): Local onboard backup storage independent of your NVR or cloud service. If your network drops, the camera keeps recording to the card. Retrieve footage later without syncing delays.
• 25fps/30fps at 2560×1920: Frame rate varies by resolution: 30fps supports smooth forensic playback and real-time monitoring, while lower resolutions add headroom if your network or recording system can't sustain full bitrate.
• Multiple Display Modes: Fisheye output can be displayed as raw panoramic, cropped regions, or split quad-view depending on your VMS or VIGI app settings. Reconfigure on-the-fly without moving the camera.
• ONVIF Profile S/T/G Compliance: Integrates with third-party VMS platforms (Milestone, Genetec, etc.) and standard network video management tools. Not locked to TP-Link software, though VIGI app and web interface are included.
• PoE or DC 12V Powered: Standard 802.3af PoE simplifies installation — one cable for power and data. DC 12V fallback option available if your PoE switch is oversubscribed or you need longer cable runs than PoE allows.

Integration & Compatibility

The INSIGHT S655I works with TP-Link VIGI NVRs and third-party NVR systems supporting ONVIF. Remote monitoring is available via the VIGI mobile app (iOS/Android), web browser, or ONVIF-compatible VMS. SmartVid features (Smart IR, 3D DNR, BLC) run on the camera itself, reducing processing load on your recording system. If you're building a mixed-vendor security stack, the ONVIF compliance ensures the S655I won't become a stranded island.

What's in the Box

Package contents not specified in available documentation. Contact the manufacturer or your distributor for detailed inclusion list and accessory compatibility.

Frequently Asked Questions

Q: What's the maximum IR range on the INSIGHT S655I?

A: The camera delivers IR illumination up to 10 meters. Smart IR technology automatically adjusts brightness to prevent washout on reflective surfaces common in warehouses and retail spaces.

Q: Can I use the INSIGHT S655I outdoors?

A: The IP67 rating handles light rain and dust, making it suitable for semi-outdoor covered areas (eaves, porches, loading docks). It is not rated for direct, heavy rainfall or full UV exposure. For exposed outdoor environments, consult the manufacturer about extended temperature and weather hardening options.

Q: Does the INSIGHT S655I support bandwidth-efficient compression?

A: Yes. H.265+ and H.265 codecs reduce storage and bandwidth requirements by approximately 50% compared to H.264, while H.264+ offers moderate compression for legacy systems. The camera automatically selects the best codec based on your NVR or VMS capability.

Q: What is the warranty on the INSIGHT S655I?

A: Warranty terms are not detailed in available product documentation. Contact the manufacturer or direct manufacturer source for specific coverage and support terms.

Q: Is the INSIGHT S655I NDAA compliant or subject to Section 889 restrictions?

A: NDAA compliance information is not confirmed for this model. If federal procurement restrictions apply to your project, verify with the manufacturer before procurement.

Q: Does the camera record locally without an NVR?

A: Yes. The microSD card slot (up to 512GB) allows the camera to record independently. This is useful as a backup if your NVR is offline or as a standalone edge recording solution in distributed sites.

Jerry Tildsen

The INSIGHT S655I solved a real problem on a recent retail roll-out: a flagship store needed full-floor monitoring without the cost and cable complexity of four fixed-dome cameras at different heights. The 1.44mm fisheye and 360-degree panoramic capture meant one camera covered what would normally require a 2×2 grid. The 5MP sensor at 2560×1920 gives you enough pixel density on the panoramic output to identify faces and merchandise movement across 40+ feet of retail floor when you crop or zoom the display in your VMS.

Technical Highlights:

• H.265+ Compression: Reduces bandwidth footprint by roughly 50% compared to H.264. On a retail network with 4–6 camera streams already taxing the connection, this codec switch buys you headroom without upgrading your PoE switch or network drops.
• 120dB WDR with Smart IR: Retail floors mix fluorescent ceiling light, display case spotlights, and large window glare. The 120dB WDR handles that contrast without crushing shadows under shelving. When IR mode engages at night, Smart IR prevents the washout you'd see on polished concrete or chrome fixtures — critical if your loss-prevention team needs to identify faces near high-value merchandise racks.
• IP67/IK10 Build: Dusty retail environments (loading docks, outdoor receiving areas) don't stress this camera. IK10 impact rating means a cardboard pallet edge or racking bump won't crack the lens housing. No fragilе dome to babysit.

Deployment Considerations:

• Fisheye output requires VMS-side dewarping or at minimum quad-view split rendering. If your NVR doesn't support ONVIF dewarping, you'll see raw panoramic output that takes practice to interpret. Verify your NVR or VMS does dewarping before committing.
• The 10m IR range is sufficient for 95% of indoor retail and warehouse interiors, but don't expect usable night vision beyond that distance — if you're monitoring a 50-foot warehouse aisle at night, pair this with a supplemental narrow-field camera at the far end.

Deploy the INSIGHT S655I in retail loss-prevention scenarios, warehouse receiving areas, or indoor lobby spaces where a single omnidirectional camera replaces the cost and complexity of multiple narrow-field units. It's not a substitute for long-range surveillance or wide-open outdoor parking lots, but for enclosed spaces under 50 feet with mixed lighting, it delivers forensic-grade evidence at a fraction of the hardware cost.
