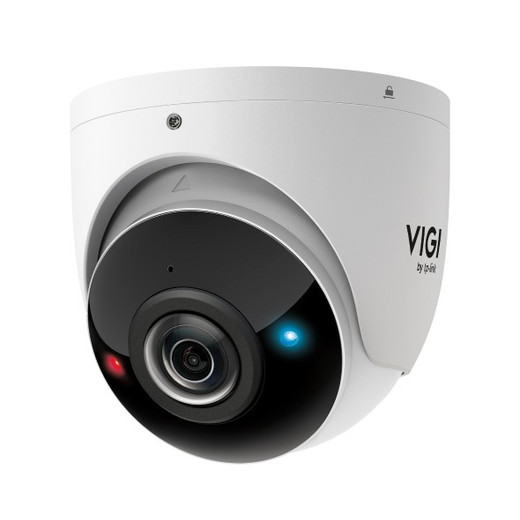

TP-Link INSIGHT S485PI 8MP Panoramic Turret Network Camera

Overview

The INSIGHT S485PI is an 8MP panoramic turret camera built for wide-area indoor and outdoor coverage where you need 180° horizontal visibility without a PTZ motor. The 1.65mm fixed lens delivers a panoramic field of view suitable for retail floors, warehouse perimeters, and building lobbies — any space where a single camera mount replaces multiple narrow-angle units. IP67-rated housing and IK10 impact resistance mean it tolerates direct spray and rough handling; 20m infrared range with smart IR keeps edges sharp in low light without washing out the center frame.

Key Specifications

Resolution & Optics: 1/2.7" progressive-scan CMOS, 8MP (3840 × 2160 @ 25/30fps), fixed 1.65mm wide-angle lens. Panoramic output trades traditional PTZ for instant full-width coverage — no pan/tilt latency.

Video Encoding: H.265+/H.265/H.264+/H.264 support cuts storage demand by 40–60% versus H.264 baseline, meaningful when running 24/7 panoramic streams across multiple cameras. Bitrate efficiency lets you stretch PoE switch capacity and NVR throughput.

Low-Light Performance: 120dB WDR (wide dynamic range) handles mixed lighting without blooming; infrared LED illumination reaches 20m. Smart IR and 3D DNR reduce noise in very dark scenes — deployment-critical if your site has unlit zones.

Networking & Power: PoE or 12V DC power. PoE draw means no separate power supply if your switch budget allows; DC option provides redundancy on sites with UPS-backed 12V rails. ONVIF Profile S/T/G compatibility ensures VMS and NVR integration without vendor lock-in.

Edge Analytics: Human and vehicle classification (not just motion) reduces false alerts and storage waste from wind, shadows, and lighting flicker. People and vehicle analytics enable forensic search and dwell-time reporting without cloud dependencies.

Local Storage & Audio: microSD slot (up to 512GB) for onboard failover recording; built-in microphone and speaker for two-way audio or site-mounted announcements. Alarm I/O for door sensors and relays adds integration flexibility.

Durability & Environment

IP67 rating (dust and temporary submersion) and IK10 vandal rating handle outdoor mounting and light impact. Operating temperature range not specified in available evidence — confirm with the manufacturer for extreme climates.

Integration Notes

Works with TP-Link VIGI NVRs and third-party systems supporting ONVIF. Remote monitoring via VIGI app or web browser. Red-blue warning lights (visible on-camera) support visual alerting during incidents.
