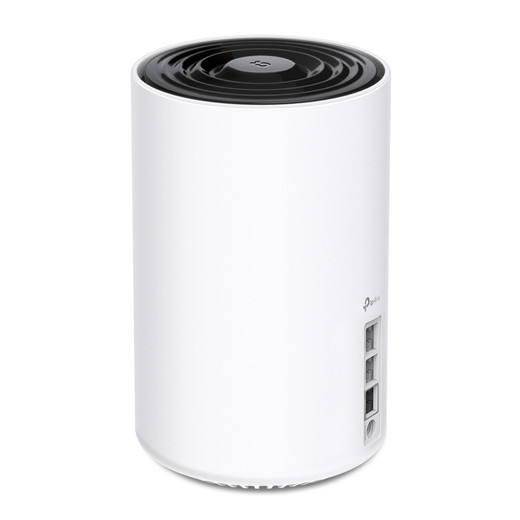

TP-Link DECO XE75 PRO(1-PACK) AXE5400 Mesh Wi-Fi 6E Unit
Overview
The DECO XE75 PRO(1-PACK) is a single AXE5400 tri-band Wi-Fi 6E mesh node designed to serve as a primary router or extend mesh coverage in commercial and residential deployments. It delivers 574 Mbps on 2.4 GHz and 2402 Mbps on each of the 5 GHz and 6 GHz bands, for a combined 5378 Mbps throughput. The unit includes a 2.5 Gigabit WAN/LAN auto-sensing port plus two standard Gigabit ports, making it suitable for wired backhaul or direct camera/NVR connections in surveillance installations where mesh redundancy and band steering reduce latency to recording devices.
Compatibility
The DECO XE75 PRO operates in Router or AP mode and integrates with other DECO mesh units via AI Mesh protocol—any DECO model can extend the network without requiring a matching unit. It supports IPv6, IPTV passthrough, and HomeShield features (parental controls, antivirus, QoS, traffic reports). The unit is Alexa-compatible for voice control. For surveillance integrations, the 2.5G port accommodates PoE injectors or gigabit PoE switches without bottlenecking multi-camera streams, and OFDMA/MU-MIMO support reduces congestion when multiple IP cameras transmit simultaneously on the same band.
Installation Notes
The DECO XE75 PRO features four internal antennas and HE160 channel width support on 5 GHz and 6 GHz bands for maximum throughput in open floor plans. WPA3 encryption and signed firmware protect against unauthorized access. The Broadcom 1.7 GHz quad-core CPU handles concurrent mesh traffic and HomeShield threat detection without noticeable latency. Position the unit in a central location for optimal tri-band coverage; 6 GHz band penetration through walls is less effective than 5 GHz, so plan wired backhaul to distant branches or cameras if direct mesh hop to 6 GHz is insufficient. The auto-sensing WAN/LAN ports simplify deployment—any port can detect and configure as upstream or downstream automatically.
