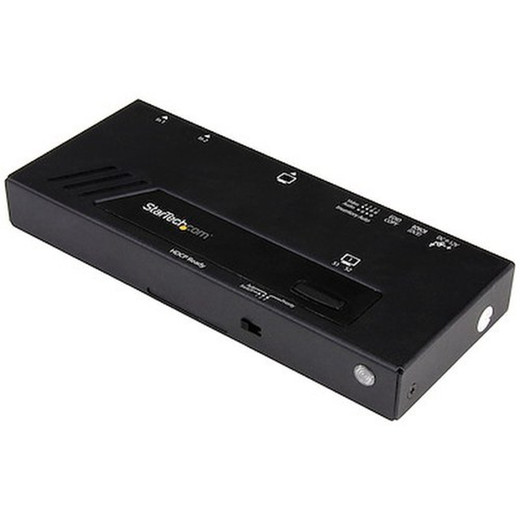

StarTech VS221HD4KA 2-Port 4K HDMI Manual Switch

Overview

The StarTech VS221HD4KA is a compact 2-input, 1-output HDMI switch built for workstations, control rooms, and AV setups where two source devices share a single HDMI display. At 3.9 x 2.4 x 0.6 inches and under 11 ounces, it sits flat on a desk or installs in a tight rack-side position without requiring additional mounting hardware. HDMI 1.4 with HDCP 1.4 support handles the copy-protection handshake that trips up cheaper passive switches, so encrypted content from Blu-ray players, streaming boxes, and enterprise media servers plays through without authentication failures.

If you are evaluating StarTech AV and connectivity products, the VS221HD4KA sits in the manual switch segment — no software driver, no network dependency, no latency introduced by active processing.

Key Features

• 4K @ 30 Hz Resolution: Supports 3840x2160 at 30 Hz — sufficient for 4K digital signage playback, large-format security monitoring displays, and presentation screens where the source is a PC or media player running at 30 fps. If you need 4K @ 60 Hz, this is not the right unit; HDMI 1.4 tops out at 30 Hz at full 4K.
• Multi-Resolution Support: Passes 2560x1600, 1920x1200, 1920x1080, and 1280x720 in addition to 4K — meaning legacy HD sources and modern 4K sources can both connect without resolution mismatch errors on the display.
• HDMI 1.4 Standard: Handles standard dynamic range content, audio return channel signaling, and the full HDCP 1.4 handshake. Not intended for HDR10 or Dolby Vision workflows, which require HDMI 2.0 or higher.
• 7.1 Surround Sound Audio Pass-Through: Carries up to 7.1 discrete audio channels over HDMI — useful in control room environments or AV suites where the display feeds into an AV receiver rather than built-in speakers. No separate audio extractor needed for standard 7.1 setups.
• HDCP 1.4 Compliance: Negotiates the content-protection handshake automatically between source and display. Eliminates the blank-screen failures common with non-HDCP-aware passive switches when sources include encrypted streams.
• Active Port LED Indicators: Two active-port LEDs plus one power LED let you confirm at a glance which source is currently selected and whether the unit has power — useful in dimly lit server rooms or under-desk installs where you cannot see the display directly.
• Universal Power Supply Input (100–240V AC): Ships with a power adapter accepting 100–240V AC input at 50/60 Hz, outputting 12V DC at 1.5A. The unit draws 18W at full load — you need an available outlet, since this is not a bus-powered device.
• Steel Enclosure: The black steel chassis resists physical flex from cable strain better than plastic housings — relevant when stiff HDMI cables are attached on both input ports simultaneously.
• Operating Temperature 0°C to 50°C: Rated for standard indoor commercial environments. Not suitable for unheated server closets in cold climates or outdoor enclosures — the 0°C lower bound is a real constraint in those cases.

Integration and Compatibility

The VS221HD4KA operates as a passive signal switch from the display's perspective — the downstream monitor or projector sees only one active HDMI source at a time, which avoids EDID conflicts that some displays exhibit when multiple sources assert signal simultaneously. It is compatible with any HDMI 1.4-capable source device: PCs, gaming consoles, media players, DVRs, NVRs with HDMI output, and set-top boxes. For HDMI switches and splitters, verify that your display accepts 4K @ 30 Hz input — some older 4K panels only accept 4K @ 60 Hz via HDMI 2.0 ports and will downscale or reject the 30 Hz signal from HDMI 1.4 sources.

In security and surveillance control rooms, this switch is commonly paired with network video recorders and a secondary PC workstation sharing a single monitor — a practical way to reduce display clutter without adding a KVM. For planning the broader display and AV connectivity architecture, consider whether you need audio switching alongside video; the 7.1 pass-through handles most scenarios unless your receiver requires discrete channel assignment per source.

If your deployment requires switching more than two sources, or needs 4K @ 60 Hz, review higher-port-count or HDMI 2.0 options in the video switch category before committing to this unit.

Frequently Asked Questions

Q: Does the VS221HD4KA support 4K at 60 Hz?

A: No. The VS221HD4KA uses HDMI 1.4, which supports a maximum of 4K (3840x2160) at 30 Hz. If your workflow requires 4K @ 60 Hz, you need an HDMI 2.0-based switch.

Q: Does the VS221HD4KA require a power outlet?

A: Yes. It draws up to 18W and includes a power adapter with 100–240V AC input and 12V DC / 1.5A output. It is not bus-powered from the HDMI sources.

Q: How many sources can the VS221HD4KA switch between?

A: Two HDMI inputs, one HDMI output. It connects exactly two source devices to one display. For more than two sources, a higher-port-count switch is required.

Q: Does the VS221HD4KA support HDR or Dolby Vision content?

A: No. HDR10 and Dolby Vision require HDMI 2.0a or higher. The VS221HD4KA is an HDMI 1.4 device and does not pass HDR metadata.

Q: What audio formats does the VS221HD4KA pass through?

A: It supports up to 7.1 surround sound audio pass-through over HDMI. This covers most standard multi-channel audio formats carried over HDMI 1.4.

Q: What is the warranty on the VS221HD4KA?

A: StarTech provides a 2-year manufacturer warranty on the VS221HD4KA.

Jerry Tildsen

The VS221HD4KA is a straightforward HDMI 1.4 manual switch — two inputs, one output, 4K @ 30 Hz ceiling, 18W active power draw. Where I see it deployed most often is in security operations centers and small control rooms where an NVR and a monitoring workstation need to share a single large display without running two video cables to the monitor's secondary input and fumbling with the display's own input selector. The switch puts source selection in one physical location with clear LED confirmation of which input is live.

Technical Highlights:

• HDCP 1.4 Pass-Through: Handles content-protection negotiation automatically — eliminates the blank-screen handshake failures that passive HDMI splitters produce when one of your sources (a Blu-ray server, streaming appliance, or DRM-protected media player) asserts HDCP.
• 7.1 Audio Over HDMI: Full 7.1 surround audio is carried through without a separate audio matrix — if your control room monitor or AV receiver supports multi-channel HDMI audio, both source channels pass cleanly without an external audio extractor.
• Steel Chassis, 290g: At 10.2 oz with a steel enclosure, the unit holds position under cable tension from two stiff HDMI runs. Lightweight plastic housings at this port density tend to pivot on the desk when cables are pulled — less of an issue here.

Deployment Considerations:

• The 12V DC / 1.5A power adapter is required for operation — plan for an outlet within reach of the install point. The unit will not pass signal without power, so a UPS-protected outlet is worth considering in an always-on monitoring environment.
• The 0°C lower operating limit is a real constraint: do not install in unheated utility closets or outdoor enclosures in cold climates. Storage down to -20°C is fine, but operating below 0°C is outside spec.

For a two-source NVR-plus-workstation setup feeding a single 4K @ 30 Hz display in a security control room, the VS221HD4KA covers the requirement cleanly. It is not the right tool for HDR video production suites or any workflow demanding 4K @ 60 Hz — those need HDMI 2.0 hardware.
