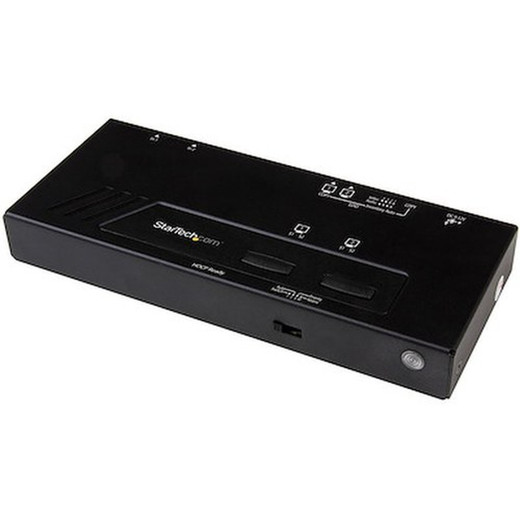

StarTech VS222HD4K 2x2 HDMI Matrix Switch for Dual-Display Environments

Overview

The StarTech VS222HD4K is a 2-input, 2-output HDMI 1.4 matrix switch designed for installations where two video sources need to be routed to two displays independently — without manual cable swapping. Whether you're managing a dual-monitor workstation, a small command center, or a control room with redundant source feeds, the VS222HD4K handles source-to-display assignment in a compact steel chassis that fits easily on a desk or in a rack accessory shelf. At 4K resolution support up to 3840x2160 @ 30Hz, it handles today's standard high-resolution displays without downscaling. Built-in auto-switching means the unit can respond to active source detection without requiring manual button presses — a real time-saver in environments where sources come on and off regularly.

Key Features

• 4K @ 30Hz Maximum Resolution (3840x2160): Supports genuine 4K output on both display outputs simultaneously. This covers the majority of 4K monitors and commercial displays in current deployment. Note: the 30Hz ceiling means it is suited for video wall feeds, signage, and workstation displays — not high-frame-rate gaming or 60Hz broadcast feeds.
• HDMI 1.4 Standard: HDMI 1.4 carries 4K video, 7.1 surround audio, and standard CEC signaling over a single cable per port. If your displays and sources are HDMI 1.4 or earlier, this is fully compatible. HDMI 2.0 sources will fall back to 1.4 negotiation — 4K/60Hz is not supported.
• 7.1 Surround Sound Audio Passthrough: Full 7.1 multichannel audio passes through each output path. For AV control rooms, training rooms, or multimedia workstations with a receiver or soundbar on each display, there's no need for a separate audio distribution device.
• Auto-Switching Between Sources: The switch detects active source signals and can switch outputs automatically based on input availability. This reduces operator intervention in monitoring environments where sources cycle on and off — the display stays live without manual interaction.
• Dual Independent Output Routing: Each of the two HDMI outputs can be assigned to either input independently. You can mirror both displays to one source, split them across two sources, or swap the assignment — standard 2x2 matrix behavior that gives you full routing flexibility.
• Wide Resolution Compatibility: Supports 3840x2160, 2560x1600, 1920x1200, 1920x1080, and 1280x720 — covering 4K, WQXGA, WUXGA, Full HD, and HD. This means the switch will negotiate correctly with older 1080p displays and newer 4K panels on the same matrix without resolution mismatch issues.
• LED Status Indicators: Two active port LEDs and one power LED give you immediate visual confirmation of which inputs are active and that the unit is powered — useful when the switch is tucked behind a monitor stand or mounted out of direct sightline.
• Compact Steel Chassis (6.1 x 2.6 x 0.8 in): At under an inch in height and 10.4 oz, the VS222HD4K sits flat under a monitor, on a shelf, or mounts discreetly near display endpoints. Steel construction provides better shielding against RF interference than plastic-body alternatives.
• Universal AC Input (100–240V), 12V DC @ 1.5A Regulated Supply: Ships with an AC adapter that works on any grid voltage from 100V to 240V — relevant for international deployments or facilities with mixed power infrastructure. The 18W power draw is low enough that it won't stress a standard outlet strip in a multi-device AV rack.
• 0°C to 50°C Operating Range: Rated for standard indoor environments. Not suited for unconditioned spaces (warehouses in summer, outdoor enclosures) — plan for climate-controlled deployment.

Integration and Compatibility

The VS222HD4K works with any HDMI 1.4-compatible source — computers, media players, set-top boxes, video wall controllers, and surveillance workstations with HDMI outputs. Maximum cable run per the specification is 10 meters (393.7 inches) on each port, which covers most conference room or control room topologies without active extenders. If your runs exceed 10m, pair this with an HDMI extender or use a dedicated HDBaseT distribution solution instead. The switch supports HDCP for content-protected sources, which matters if you're routing streaming media or Blu-ray players through the matrix. For pure surveillance or data workstation use cases where HDCP is not a concern, the switch routes freely without handshake delays. Two-year manufacturer warranty applies to this unit.

Frequently Asked Questions

Q: Does the VS222HD4K support 4K @ 60Hz?

A: No. The VS222HD4K is rated for a maximum of 4K @ 30Hz (3840x2160). It does not support 4K @ 60Hz, which requires HDMI 2.0 or higher. If your displays or sources require 60Hz at 4K, you will need a different switch.

Q: Can both outputs show the same source at the same time?

A: Yes. As a 2x2 matrix switch, you can route a single input to both outputs simultaneously (mirror mode), assign different sources to each output (split mode), or swap the assignment between inputs and outputs independently.

Q: What is the maximum cable length supported per port?

A: StarTech specifies a maximum cable length of 10,000mm (10 meters / approximately 393 inches) per port. For runs beyond 10 meters, an HDMI extender or alternative distribution method is recommended.

Q: Does the VS222HD4K pass audio?

A: Yes. The VS222HD4K supports 7.1 surround sound audio passthrough on each output path, so multichannel audio from a compatible source will pass to both displays without a separate audio device.

Q: What power supply does the VS222HD4K require?

A: An AC adapter is included. It accepts 100–240V AC input and outputs 12V DC at 1.5A. Total power consumption is rated at 18 watts. The universal input range means it will work on both North American and international power grids.

Q: What is the warranty on the VS222HD4K?

A: StarTech provides a 2-year manufacturer warranty on the VS222HD4K.

Jerry Tildsen

The VS222HD4K comes up most often in control room and AV workstation builds where two operators share a pair of displays and need source routing flexibility without running to the back of the rack. The 4K@30Hz ceiling via HDMI 1.4 is the defining constraint — know it going in. At 18W draw and a footprint of 6.1 x 2.6 x 0.8 inches, it fits in desk-mount trays or on a shelf without occupying rack space you'd rather use for active equipment.

Technical Highlights:

• 2x2 Matrix Routing: Full cross-point matrix — any input to any output, independently. Mirror, split, or swap without re-cabling. Covers most dual-display source-routing scenarios with no additional hardware.
• 7.1 Audio Passthrough: Multichannel audio follows the video path on both outputs. In a training room or operations center with receivers on each display, this eliminates a separate audio matrix entirely.
• Universal 100–240V AC Input: The included adapter handles any grid voltage. For multi-site deployments across North American and international facilities, you're not sourcing region-specific power bricks per unit.

Deployment Considerations:

• The 10-meter maximum cable run per port is a hard limit under the HDMI 1.4 spec. Plan your source-to-switch and switch-to-display distances carefully before installation — exceeding this without active extenders will produce signal dropouts or no-signal conditions.
• Operating temperature tops out at 50°C. This is fine for a climate-controlled server room or AV rack with adequate airflow, but do not deploy in unconditioned spaces — the unit has no active cooling of its own.

For a dual-operator security monitoring station where two workstations need to share two large-format displays — with the ability to quickly assign either source to either screen — the VS222HD4K is a practical, low-overhead routing solution that keeps the desk clean and the cabling static.
