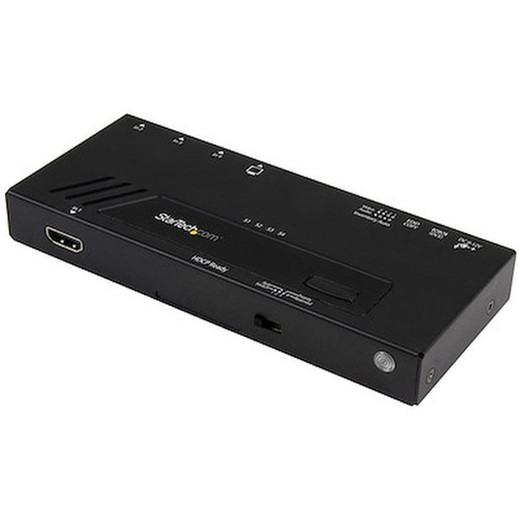

StarTech VS421HD4KA 4-Port HDMI 1.4 Manual Switch with 4K Support

Overview

The StarTech VS421HD4KA is a four-input, single-output HDMI 1.4 switch designed for AV installations, control rooms, and workstation setups where you need to route any one of four HDMI sources to a single display without disconnecting cables. The compact steel chassis measures just 6.1 × 2.6 × 0.8 inches — narrow enough to sit on a desk shelf or mount in a rack accessory bay — and draws 18W from the included power supply. If your workflow involves cycling between a laptop, a media player, a security NVR output, and a second workstation on one monitor, the VS421HD4KA keeps all four sources live and switches cleanly on demand.

For integrators wiring HDMI switches into command centers or digital signage enclosures, the HDMI 1.4 standard here is the governing constraint to understand before specifying. Review the key features below to make sure the resolution ceiling and audio passthrough match your display and source equipment.

Key Features

• 4K @ 30 Hz Maximum Resolution: The VS421HD4KA passes native 4K (3840×2160) at up to 30 Hz — sufficient for static dashboards, security feeds, and presentation content. If your source outputs 4K @ 60 Hz (HDMI 2.0 territory), it will be capped at 30 Hz through this switch. Plan accordingly for high-frame-rate 4K applications.
• Four HDMI Inputs, One HDMI Output: All four input ports stay connected simultaneously. Switching is source-selection only — no re-cabling required mid-session, which matters in environments where cable access behind racks is limited.
• HDMI 1.4 Standard: HDMI 1.4 supports the full resolution range listed (3840×2160 down to 1280×720), plus audio return channel and 3D signaling. The 18 Gbps bandwidth ceiling of HDMI 1.4 is the reason 4K tops out at 30 Hz rather than 60 Hz — this is a fundamental standard limitation, not a firmware cap.
• 7.1 Surround Sound Passthrough: The switch passes 7.1-channel surround audio from any connected source to the display or downstream AV receiver. For control room installations pairing the switch with a monitor that has audio outputs, or for AV-over-HDMI setups feeding a soundbar or receiver, this means no separate audio breakout is needed for multi-channel content.
• Broad Resolution Support: Beyond 4K, the switch handles 2560×1600, 1920×1200, 1920×1080, and 1280×720 — covering the full range of common commercial displays. Mixed-resolution source environments (a 1080p laptop alongside a 4K media player) are handled without manual reconfiguration.
• Steel Chassis Construction: The black steel enclosure provides RF shielding and mechanical durability suitable for permanent installation. At 10.3 oz, it stays put on a shelf without additional fasteners in most setups.
• Universal AC Input (100–240V): The included power supply accepts 100–240V AC and outputs 12V DC at 1.5A. This covers North American and international AC mains, so the same unit travels or deploys globally without a separate voltage adapter.
• Operating Temperature 0°C to 40°C: Rated for standard indoor environments. Not designed for unconditioned spaces — keep it in a temperature-controlled equipment room or office installation. Storage is rated to -10°C to 60°C, so shipping in cold climates won't damage the unit.
• Compact Footprint: At 6.1 inches long and 0.8 inches tall, the VS421HD4KA fits in tight AV furniture, under-desk cable trays, or alongside a monitor base without occupying meaningful rack space.

Integration and Compatibility

The VS421HD4KA is compatible with any HDMI 1.4-compliant source or display. Sources outputting HDMI 2.0 signals (4K @ 60 Hz) will connect and operate, but the switch will pass the signal at HDMI 1.4 bandwidth — meaning 4K content is displayed at 30 Hz maximum. For network video recorders and security workstations outputting 1080p feeds to a control room monitor, this switch handles the signal with no compromise. Pairing with a video wall controller or matrix switcher downstream is possible if the display infrastructure requires it.

No driver installation is required on the source devices — the switch is plug-and-play at the HDMI layer. EDID management behavior should be verified with your specific source and display combination if you encounter handshake issues during initial installation. The 18W power draw comes from the external supply, not the HDMI ports, so there is no bus-power dependency on connected sources.

Integrators sourcing AV infrastructure alongside PoE network switches for camera systems will find this unit a straightforward addition to a control room bill of materials. For a broader look at how display switching fits into a surveillance or operations center design, the AV integration planning guide covers topology options in detail.

Frequently Asked Questions

Q: Does the VS421HD4KA support 4K at 60 Hz?

A: No. The VS421HD4KA is built on the HDMI 1.4 standard, which caps 4K (3840×2160) output at 30 Hz. Sources outputting 4K @ 60 Hz will be limited to 30 Hz through this switch. For 4K @ 60 Hz passthrough, an HDMI 2.0 switch is required.

Q: How many devices can be connected simultaneously?

A: All four HDMI sources can remain physically connected at the same time. The switch routes one selected source to the single HDMI output at any given moment — no unplugging required when changing sources.

Q: Does the VS421HD4KA pass audio as well as video?

A: Yes. The switch passes up to 7.1-channel surround audio alongside the video signal over HDMI. No separate audio cabling is needed for multi-channel audio from connected sources.

Q: What power supply does the VS421HD4KA use?

A: The unit uses an external power supply with a 100–240V AC input (universal mains) and 12V DC / 1.5A output. The switch itself consumes 18W maximum. The power supply is included with the unit.

Q: What is the warranty on the VS421HD4KA?

A: The VS421HD4KA carries a 2-year manufacturer warranty.

Q: Is the VS421HD4KA suitable for permanent rack installation?

A: The unit is not rack-mountable in a standard 1U form factor — it measures 6.1 × 2.6 × 0.8 inches and is designed for surface or shelf placement. It can be installed inside AV furniture or on a desk shelf in a control room environment. It is not rated for outdoor or unconditioned-space use; operating temperature is 0°C to 40°C.

Eden Phillips

The VS421HD4KA is one of those units I recommend when integrators are building out a security operations center on a defined budget and need a clean, no-fuss way to drive a single monitor from four different HDMI sources — NVR output, a workstation, a laptop feed, and a backup source. The HDMI 1.4 ceiling at 4K/30Hz is the spec to flag upfront: for 1080p and lower-resolution sources, which describes the majority of NVR HDMI outputs in the field today, there is no practical limitation at all.

Technical Highlights:

• 4K @ 30 Hz passthrough: Handles 3840×2160 content from compatible sources — practical for 4K dashboard displays in command rooms where frame rate is not the priority.
• 7.1 audio passthrough: Full multi-channel audio travels through the switch without an external audio matrix. For installations pairing a display with built-in speakers or a downstream receiver, that's one fewer device in the signal chain.
• Universal 100–240V power supply: The included 12V/1.5A supply works globally — useful for integrators deploying across multiple sites or international projects without sourcing country-specific adapters.

Deployment Considerations:

• Verify EDID handshake behavior with your specific display and source combination during commissioning — some sources may require manual EDID management if the display reports capabilities the source cannot match.
• The 0°C to 40°C operating range means this unit belongs in a climate-controlled equipment room or on a desk, not in a utility closet or outdoor enclosure without active cooling.

For a mid-size security operations desk where the operator monitors NVR output, a workstation, and a video management software client on a single large-format display, the VS421HD4KA handles the source-switching task cleanly at a form factor that doesn't consume desk real estate.
