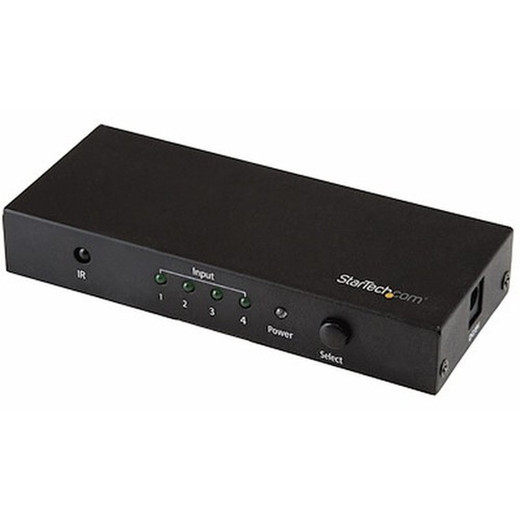

StarTech VS421HD20 4-Port HDMI Switch with 4K 60Hz and 18Gbps Bandwidth

Overview

The StarTech VS421HD20 is a four-input, single-output HDMI switch built for environments where multiple video sources share one display and where signal quality cannot be compromised. At 18 Gbps maximum bandwidth and native support for 3840x2160 at 60Hz, it passes full 4K/UHD content without downsampling — a practical requirement when connecting modern workstations, media servers, or high-resolution surveillance review stations to a single high-resolution monitor. Unlike lower-bandwidth switches that top out at 4K/30Hz, the VS421HD20 handles 4K/60Hz with 4:4:4 chroma subsampling, meaning color accuracy is preserved fully rather than compressed — relevant anywhere color fidelity drives decisions, from security review rooms to broadcast-adjacent AV installations.

The switch supports three distinct input-selection methods: automatic source detection, an IR remote, and a front-panel toggle button. Automatic switching is convenient in unattended or lightly staffed environments — the switch detects an active signal and routes it without operator intervention. The IR remote and front-panel button give operators manual override when automatic selection would be disruptive. For a HDMI switch deployed at a security operations desk or AV control room, that flexibility matters more than it might appear on a spec sheet.

Key Features

• 4K/60Hz at 18 Gbps: Full UHD throughput at 60 frames per second — not the 30Hz ceiling of older HDMI 1.4 switches. On a 4K display driven by a high-resolution workstation or NVR output, the difference between 30Hz and 60Hz is visible in motion smoothness during live video review.
• 4:4:4 Chroma Subsampling: No color compression on the signal path. Subsampled signals (4:2:0 or 4:2:2) lose color detail that matters in forensic image review; 4:4:4 preserves the full color gamut your source and display are capable of rendering.
• HDCP 2.2 Compliance: Handles content-protected signals from Blu-ray players, streaming devices, and some enterprise video systems without handshake failures. If any source in your rack is HDCP 2.2 protected, the switch and downstream display must both support it — the VS421HD20 covers the switch side of that equation.
• 7.1 Surround Audio Pass-Through: The full eight-channel audio signal passes through intact alongside video. For a conference room, security briefing space, or AV integration where surround audio is part of the setup, no separate audio matrix is needed for the switch layer.
• Three Switching Methods — Auto, IR, Front-Panel: Automatic input detection handles source transitions in unattended racks. The IR remote extends operator control without requiring physical access to the switch. The front-panel button provides a tactile fallback. Having all three available in a single unit eliminates the need for a separate control system for basic switching tasks.
• Universal AC Input (100–240V): The internal power supply accepts any mains voltage between 100V and 240V at 0.4A draw, making the unit suitable for international deployments or mixed-voltage facilities without an external transformer. Power consumption is 10W — low enough that it won't register on any power budget calculation.
• Compact Form Factor (4.8 x 2.0 x 0.8 in, 5.4 oz): At under an inch tall and just over a third of a pound, the VS421HD20 sits flat on a desk, shelves into a rack tray, or mounts behind a display without consuming meaningful space. The small footprint is an asset in dense AV racks or tight equipment cabinets.
• Operating Temperature 0°C to 40°C: Rated for standard indoor commercial environments. This is not a hardened unit — install it in a climate-controlled equipment room or AV rack, not in an unventilated enclosure or outdoor housing.

Integration and Compatibility

The VS421HD20 works with any HDMI-equipped source and display that negotiates at or below 18 Gbps. Four HDMI inputs accept sources such as computers, NVRs, media players, gaming consoles, or video encoders. The single HDMI output connects to any HDMI monitor, projector, or display. HDCP 2.2 support means the switch does not break the content-protection chain for premium sources. The 7.1 audio pass-through is compatible with AV receivers and soundbars that accept HDMI ARC or standard HDMI audio. There are no driver requirements — the switch is plug-and-play with any OS. For integrators building video matrix switching systems or security review stations, the VS421HD20 fits cleanly into existing cabling infrastructure using standard HDMI cables. Pair it with a quality high-speed HDMI cable rated for 18 Gbps (48Gbps cables also work) to maintain signal integrity at 4K/60Hz over longer runs. Review your AV distribution architecture if you need simultaneous output to multiple displays — this is a 4x1 switch, not a splitter or matrix.

Frequently Asked Questions

Q: Does the VS421HD20 support 4K at 60Hz, or only 4K at 30Hz?

A: The VS421HD20 supports 3840x2160 at 60Hz with 18 Gbps maximum bandwidth. This is a full HDMI 2.0-class signal path — not the 4K/30Hz ceiling of HDMI 1.4 switches. Both your source and display must also support 4K/60Hz to see that resolution at that frame rate.

Q: Can the VS421HD20 handle HDCP 2.2 protected content?

A: Yes. The VS421HD20 is HDCP 2.2 compliant, so it will pass copy-protected signals from Blu-ray players, streaming devices, and other HDCP 2.2 sources without dropping the handshake. Your display must also be HDCP 2.2 capable for the full chain to work.

Q: What switching methods are available on the VS421HD20?

A: Three methods: automatic input detection (the switch routes the active signal automatically), IR remote control for hands-free manual selection, and a front-panel toggle button for direct tactile control. All three are available simultaneously — you choose whichever method fits your workflow.

Q: Does the VS421HD20 pass audio, and what formats are supported?

A: Yes. The VS421HD20 passes up to 7.1-channel surround audio alongside the video signal over HDMI. No separate audio extraction or matrix is required for the switching layer.

Q: What is the warranty on the VS421HD20?

A: StarTech covers the VS421HD20 with a 2-year manufacturer warranty.

Q: Can the VS421HD20 be used internationally on different mains voltages?

A: Yes. The internal power supply accepts 100–240V AC at 0.4A, covering North American, European, and most international mains standards. No external transformer or voltage converter is needed.

Jerry Tildsen

The VS421HD20 is the switch I'd specify for a security operations center review desk where you're rotating between an NVR output, a workstation, and one or two secondary video feeds on a single 4K display. The 18 Gbps bandwidth ceiling and 4:4:4 chroma subsampling mean you're not introducing any signal degradation between source and display — important when the operator needs to make a judgment call on image detail.

Technical Highlights:

• 18 Gbps / 4K 60Hz: Full HDMI 2.0-class bandwidth — the VS421HD20 passes 3840x2160 at 60fps without dropping to 30Hz or compressing chroma, keeping motion in live review footage smooth and color accurate.
• HDCP 2.2: Handles content-protection handshakes from premium sources without signal interruption — the switch won't be the weak link if your downstream display is also HDCP 2.2.
• Three-Method Switching: Auto-detection, IR remote, and front-panel toggle give you flexible control; auto mode handles unattended source changes while the IR remote keeps operators from walking up to a rack mid-briefing.

Deployment Considerations:

• Operating temperature tops out at 40°C — install in a ventilated, climate-controlled equipment room. An unventilated AV cabinet in a warm server room will push that limit.
• This is a 4x1 switch, not a matrix or splitter — one output only. If you need the same source on multiple displays simultaneously, you'll need to add an HDMI distribution amplifier downstream.

Best-fit scenario: a compact security review station or SOC operator desk with four HDMI sources (NVR, workstation, decoder, laptop) all routing to a single 4K display — where the operator needs fast, reliable switching without a dedicated AV control system.
