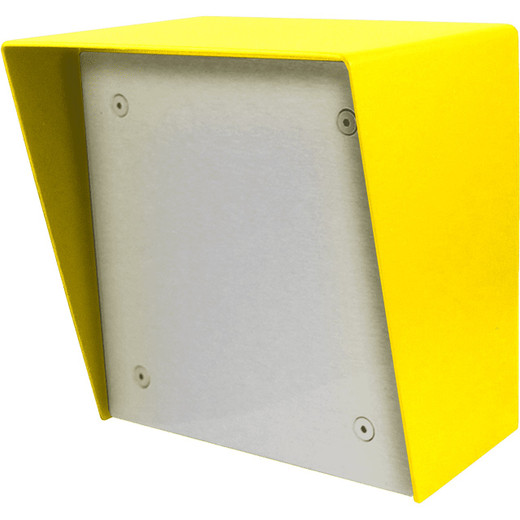

Viking Surface Mount Enclosure 5X5 Chassis in Yellow with Blank Panel - VE-5X5-PNL-YL

Viking Electronics VE-5X5-PNL-YL Surface Mount Enclosure 5x5 with Blank Panel in Yellow

Overview

The VE-5X5-PNL-YL is a surface mount steel enclosure from Viking Electronics designed for wall, post, or single-gang installations where a compact 5x5 footprint and high-visibility yellow finish are required. The box ships with a matching blank aluminum panel, giving integrators a clean starting point for custom cutouts or labeling without sourcing a secondary enclosure component. If you need the same housing in black, Viking's standard VE-5X5-PNL covers identical dimensions with a black powder coat finish.

Key Features

• 16-Gauge Cold Rolled Steel Body (0.062" CRS): At 16 gauge, the enclosure wall resists casual impact and flex without the added weight of thicker plate — relevant when mounting to drywall anchors or hollow-core posts where total assembly weight matters. The box ships at 1.7 lb (0.77 kg), light enough for a one-person install.
• UV-Stable Yellow Fine Texture Powder Paint: The UV-stable formulation holds color in direct sun exposure, so a unit mounted on an exterior wall or rooftop post won't fade to cream over a season. Yellow is the correct finish when safety-code visibility or site-identification by color is part of the installation spec.
• 12-Gauge Aluminum Blank Panel (0.081" thick): The included panel is heavier-gauge than the box itself — aluminum at 0.081" gives you enough material to drill, punch, or laser-cut connector cutouts cleanly without distortion. Panel shipping weight is 2.0 lb (0.91 kg). UV-stable clear gloss powder coat keeps the aluminum from oxidizing in outdoor-adjacent environments.
• Weather-Resistant Construction: The enclosure is described as weather-resistant and designed for surface mounting to walls or posts — appropriate for covered outdoor locations or interior environments where wash-down or humidity is a factor. Verify your specific IP/NEMA requirement against your installation conditions before specifying for fully exposed outdoor use.
• Blank Panel Flexibility: Shipping with an undrilled blank panel means you control the cutout pattern in the field or pre-fabrication shop. No need to order a separate backbox and front panel from different SKUs — the VE-5X5-PNL-YL bundles both at a matched finish.
• Compact 5x5 Chassis: The 5x5 form factor fits tight spaces — equipment closet exteriors, column-mount intercom stations, small access control credential readers — without the bulk of a larger enclosure. Pair with surface mount enclosures from the broader Viking Electronics line when your project calls for multiple enclosure sizes across the same site.

Integration & Compatibility

The blank panel accepts custom cutouts for Viking intercom modules, access control readers, keypad assemblies, or third-party devices that fit the 5x5 chassis footprint. For projects requiring a non-reflective panel finish, the standard VE-5X5-PNL (black) or other panel variants in the enclosures and backboxes category offer alternative finishes within the same mounting system. Consult Viking's VE-Series product manual for panel cutout templates and recommended fastener patterns when integrating with Viking intercom or entry-system hardware. For planning multi-device deployments, an access control installation guide can help coordinate enclosure placement with reader and intercom layouts.

Frequently Asked Questions

Q: What gauge steel is the VE-5X5-PNL-YL enclosure box?

A: The box is fabricated from 0.062" thick (16 gauge) cold rolled steel (CRS) with a UV-stable yellow fine texture powder coat finish.

Q: What material is the included blank panel?

A: The panel is 0.081" thick (12 gauge) aluminum with a UV-stable clear gloss powder coat. It ships at 2.0 lb (0.91 kg).

Q: Is the VE-5X5-PNL-YL suitable for outdoor installation?

A: Viking describes it as weather-resistant and designed for surface mounting to a wall or post. It is appropriate for covered or protected outdoor locations. Confirm NEMA or IP rating requirements for your specific application before installing in fully exposed outdoor conditions.

Q: What is the difference between the VE-5X5-PNL-YL and the VE-5X5-PNL?

A: The VE-5X5-PNL-YL has a UV-stable yellow fine texture powder coat finish on the steel box. The VE-5X5-PNL is the same 5x5 chassis in black fine texture powder coat. Both include a blank panel and share the same 16-gauge CRS construction and 5.22" x 5.14" x 3.4" footprint.

Q: Does the enclosure ship with the blank panel included?

A: Yes. The VE-5X5-PNL-YL (often searched as VE 5X5 PNL YL) includes both the yellow steel surface mount box and the 12-gauge aluminum blank panel as a bundled unit.

Q: Can the blank panel be field-cut for custom connector or module openings?

A: The 0.081" (12 gauge) aluminum panel is thick enough to accept clean drilled, punched, or laser-cut openings without distortion. Refer to Viking's VE-Series product manual for cutout templates if integrating Viking intercom or entry modules.

Karl Wilson

The VE-5X5-PNL-YL is one of those enclosures that earns its place on a project spec through specificity: the 0.062" (16-gauge) CRS box paired with a heavier 0.081" (12-gauge) aluminum blank panel means the part of the enclosure you're actually cutting and mounting hardware into is the stiffer piece. That's a deliberate design choice and it matters when you're punching knockouts for a flush-mount intercom module under field conditions.

Technical Highlights:

• Panel gauge advantage: At 0.081" (12 gauge), the aluminum blank is 30% thicker than the steel box walls — you get clean hole edges on drilled or punched cutouts without the panel bowing, which matters for flush-mount module seating.
• UV-stable yellow finish: The powder coat is rated UV-stable, so color integrity holds on south-facing exterior walls or covered canopy mounts without repainting on a 1–2 year cycle.
• Combined shipping weight: Box at 1.7 lb + panel at 2.0 lb totals under 4 lb for the assembly — within single-person wall-anchor install range without a lift assist.

Deployment Considerations:

• Yellow finish is the right call for safety-code visibility zones (utility rooms, electrical closets, emergency call stations) or color-coded site zoning. If your site standard is neutral, specify the VE-5X5-PNL in black instead.
• Viking describes this as weather-resistant, not rated to a published IP or NEMA number in the available evidence — verify with Viking's VE-Series datasheet before spec'ing for fully exposed outdoor use in driving rain or wash-down environments.

The VE-5X5-PNL-YL is the right enclosure for Viking intercom or access control deployments in high-visibility zones — utility corridors, parking structure call stations, or industrial entry points where color-coding enclosures by function is part of the site management standard.
