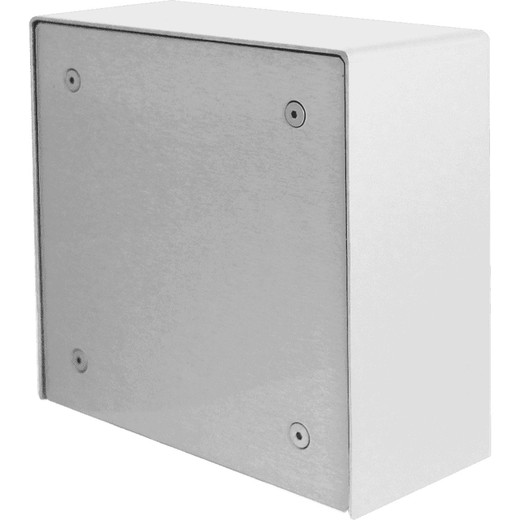

Viking Surface Mount Enclosure 5X5 Chassis in White no Rain Guard with Blank Panel - VE-5X5-PNL-NRWH

Viking Electronics VE-5X5-PNL-NRWH White 5x5 Surface Mount Enclosure with Blank Panel, No Rain Guard

Overview

The Viking Electronics VE-5X5-PNL-NRWH is a white, 5x5 surface mount steel enclosure paired with a blank aluminum panel, built for integrators who need a clean, weather-resistant housing for intercom modules, access control components, or small field devices mounted to walls or posts without overhead rain exposure. This is the no-rain-guard variant — the right configuration when your install site already provides top cover (recessed alcoves, covered entryways, canopied kiosks) or when you're mounting in a sheltered interior location where condensation management is the priority over direct precipitation.

The VE-5X5-PNL-NRWH (often searched as VE 5X5 PNL NRWH) ships from Viking's Viking Electronics product line as part of their VE-Series enclosure family, designed specifically to house Viking's intercom and entry modules in a standardized, field-installable package.

Key Features

• 16-Gauge Cold Rolled Steel (CRS) Box Construction: At 0.062" thick, the steel shell provides meaningful structural rigidity for a surface-mount enclosure — resistant to casual tampering or incidental impact without the weight penalty of heavier-gauge housings. For surface mount enclosures anchored to drywall or hollow-core posts, keeping weight near 1.9 lbs matters for anchor selection.
• UV-Stable White Fine Texture Powder Paint Finish: The box finish is rated UV stable, which means it won't chalk, yellow, or fade under prolonged sun exposure the way cheaper painted enclosures do. For exterior installs on sun-facing walls, this is the spec that determines whether the housing still looks acceptable at year three.
• 12-Gauge Aluminum Blank Panel: At 0.081" thick, the blank panel stock is heavier-gauge than the box itself — standard practice for Viking's VE-Series since the panel takes the mechanical load of any module cutouts and hardware you drill into it in the field. The extra gauge gives you clean hole edges and prevents flex when tightening hardware.
• UV-Stable Clear Gloss Powder Paint on Panel: The aluminum panel carries a clear gloss UV-stable finish, which protects the aluminum from oxidation and surface corrosion in damp or outdoor-adjacent environments without adding color that would interfere with custom labeling or branding applied during integration.
• No Rain Guard Configuration: Choosing the no-rain-guard variant removes the overhead flange that sheds precipitation from the top of the enclosure. This is intentional for flush-recessed installs, canopy-mounted positions, or interior deployments where the rain guard would interfere with clean flush mounting against a ceiling soffit or overhead structure.
• 1.9 lb Shipping Weight: At 1.9 lbs (0.86 kg) total, this enclosure ships and installs with minimal added load — relevant when specifying anchor hardware for stucco, tile, or composite exterior surfaces where anchor pull strength is marginal. Pair with appropriate anchors for your substrate; the enclosure won't be the limiting factor.
• Surface Mount Design: Designed to mount directly to walls or posts without requiring a rough-in box or in-wall cutout. This makes the VE-5X5-PNL-NRWH viable for retrofit installs on finished walls and concrete or masonry surfaces where cutting a cavity isn't practical.
• Blank Panel Included: The blank aluminum panel ships ready for custom field modification — drill, punch, or cut to accommodate your specific module configuration. This is standard practice for Viking's VE-Series: order the enclosure with blank panel when your module mix isn't covered by a pre-punched panel variant.

Integration & Compatibility

The VE-5X5-PNL-NRWH is designed within Viking's VE-Series enclosure system. The 5x5 chassis dimension is the Viking standard for their single-gang intercom and access control entry modules. When planning your installation, confirm your specific Viking module's front-panel dimensions match the 5x5 form factor before ordering — Viking's VE-Series spans multiple chassis sizes (5x5, and others) and the panel dimensions must align. The blank panel variant gives you the flexibility to configure for any Viking module that fits the 5x5 chassis, or for non-Viking hardware that fits within the enclosure interior dimensions.

For deployments requiring a access control housing that needs to survive weather while keeping a clean architectural appearance, this enclosure pairs naturally with covered entry applications. If your site has direct overhead rain exposure, consider the rain guard variant in the same VE-Series family instead of this no-rain-guard model. For a broader comparison of enclosure options and how to match them to entry system deployments, see our security system buying guide.

Frequently Asked Questions

Q: What is the difference between the VE-5X5-PNL-NRWH and the VE-5X5-NR-WH?

A: The VE-5X5-PNL-NRWH includes a blank 12-gauge aluminum panel for field-drilling your module cutouts. The VE-5X5-NR-WH is the same white, no-rain-guard 5x5 chassis without a blank panel included — you would order the panel separately or use a pre-punched panel variant. Choose the PNL model when you need the flexibility to customize your own cutout layout.

Q: Is the VE-5X5-PNL-NRWH suitable for outdoor installation?

A: Viking describes the VE-Series box as weather resistant and the finish is UV-stable powder coat. However, this is the no-rain-guard variant, which means the top of the enclosure has no overhead flange to deflect direct precipitation. It is best suited for locations with overhead cover (soffits, canopies, recessed alcoves) or sheltered interior installations. If your site has direct rain exposure from above, the rain guard variant in the VE-Series is the more appropriate choice.

Q: What gauge steel and aluminum are used in the VE-5X5-PNL-NRWH?

A: The enclosure box is 0.062" thick 16-gauge cold rolled steel (CRS). The blank panel is 0.081" thick 12-gauge aluminum — heavier gauge than the box, which is intentional to give the panel the rigidity needed for clean field-drilled cutouts without flexing under hardware torque.

Q: Can I use the VE-5X5-PNL-NRWH for non-Viking modules?

A: The enclosure is designed for Viking's VE-Series module ecosystem, but the blank panel ships unmodified, so it can be drilled or punched for other hardware that fits within the 5x5 chassis interior. Verify interior dimensions against your specific module before committing — Viking's published exterior dimensions for the VE-5x5 series are approximately 5.22" x 5.14" x 3.4" (133mm x 131mm x 86mm).

Q: How heavy is the VE-5X5-PNL-NRWH and what mounting hardware do I need?

A: Shipping weight is 1.9 lbs (0.86 kg). The enclosure is designed for surface mounting to a wall or post. Anchor hardware selection depends on your substrate (drywall, masonry, stucco, composite); the enclosure weight is low enough that standard anchors appropriate for your surface material are sufficient. No specialty hardware is required for the enclosure itself.

Q: Does the VE-5X5-PNL-NRWH come in other colors or configurations?

A: Yes. The VE-Series 5x5 chassis is available in white (this model), black (VE-5X5-PNL), and yellow (VE-5X5-PNL-YL) finishes, and in variants with and without blank panels and with and without rain guards. Choose the color and rain guard configuration that matches your site's aesthetic requirements and weather exposure.

Marty Allison

The detail I always check first on a surface-mount enclosure is panel gauge — and the VE-5X5-PNL-NRWH gets this right. The blank panel is 0.081" 12-gauge aluminum, which is notably heavier than the 0.062" 16-gauge CRS box. That's not accidental: the panel takes every cutout, grommet, and hardware point you add in the field, and thinner stock telegraphs every imperfect hole and causes flex when you torque down module hardware. At 12-gauge, you get clean edges from a standard step bit and a panel that stays flat after installation.

Technical Highlights:

• 0.081" 12-Gauge Aluminum Panel: Heavier than the enclosure box itself — gives clean field-drilled cutouts and resists flex when torquing module fasteners. This is the spec that separates a panel you can actually work with from one that warps.
• UV-Stable Powder Coat on Both Components: Box and panel carry independent UV-stable finishes (white fine texture on steel; clear gloss on aluminum) — both resist chalking and color shift on south-facing or sun-exposed walls over multi-year service life.
• 1.9 lb Total Weight: Light enough to anchor cleanly into stucco, composite cladding, or hollow-core masonry without requiring structural backing or specialty anchors. Keeps the install straightforward on retrofit jobs.

Deployment Considerations:

• The no-rain-guard configuration assumes overhead weather protection at the install site. Before specifying this model, confirm the mounting location has a soffit, canopy, or recessed alcove providing top cover — otherwise the rain guard variant is the correct order.
• The blank panel ships completely unmodified. Budget field time for layout, drilling, and deburring before you can mount your module. If Viking offers a pre-punched panel for your specific module configuration, that variant saves meaningful labor on multi-unit jobs.

The VE-5X5-PNL-NRWH is the right specification for covered-entry intercom and access control installs — lobby vestibules, gated parking kiosks under canopy, or covered loading dock pedestrian access points — where you want architectural white finish, a blank panel for custom module layout, and don't need the rain guard adding depth to a flush-mounted application.
