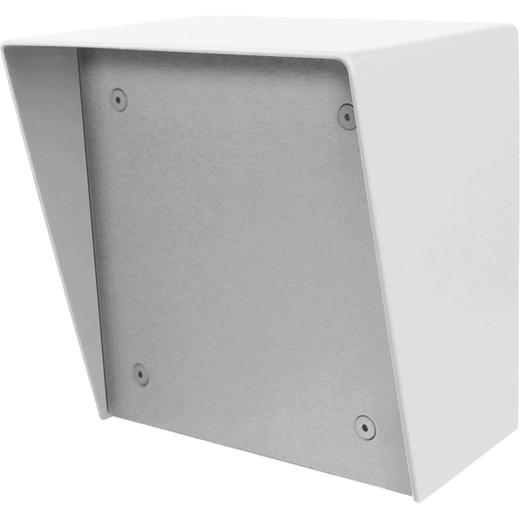

Viking Surface Mount Enclosure 5X5 Chassis in White with Blank Panel - VE-5X5-PNL-WH

Viking Electronics VE-5X5-PNL-WH Surface Mount Enclosure with Blank Aluminum Panel

Overview

The VE-5X5-PNL-WH is Viking Electronics' white 5x5 surface mount steel enclosure paired with a blank 12-gauge aluminum panel — a field-configurable housing for intercom modules, access control components, and small electronics requiring a clean, durable wall-mount solution. At 2.0 lb shipping weight, it installs without additional structural support on standard wall surfaces. Browse the full Viking Electronics enclosure and intercom line for companion housings and modules.

Key Features

• 16-Gauge CRS Box Construction (0.062" thick): Cold-rolled steel at this gauge resists denting and flex under daily contact — relevant in lobbies, corridors, and utility rooms where enclosures take incidental abuse. Thinner sheet metal telegraphs every bump; 16ga holds its shape.
• UV-Stable White Fine Texture Powder Paint: The UV-stable formulation prevents yellowing and chalking on sun-exposed installations — exterior vestibules, covered entryways, or any location with indirect sunlight. Standard rattle-can finishes fail here within two years.
• 12-Gauge Aluminum Blank Panel (0.081" thick): The panel ships blank, giving integrators a clean substrate to punch, drill, or cut to exact module dimensions on-site. At 12ga, it machines cleanly without tearing — important when field-cutting for non-standard cutouts. For a finished look without custom panel work, see the surface mount enclosure category.
• UV-Stable Clear Gloss Panel Finish: The gloss clear coat on the aluminum panel protects against oxidation and surface corrosion, keeping the panel face clean and professional over years of service — especially relevant in humid or coastal environments.
• Weather-Resistant Design: The box is described as weather-resistant, making it a candidate for covered exterior deployments — entry vestibules, parking structure call stations, and covered loading dock intercom positions. Confirm specific IP rating requirements for fully exposed outdoor use against Viking's published specs for your application.
• Lightweight at 2.0 lb: Single-person installation without a helper to hold the box during fastening. Practical on scissor-lift work in ceilings or high-wall mounting where an extra set of hands is a scheduling cost. Pair with appropriate intercom mounting hardware for the cleanest install.

Integration & Compatibility

The VE-5X5-PNL-WH (often searched as VE 5X5 PNL WH) is designed as a surface mount chassis within Viking's VE-Series enclosure family. The blank aluminum panel accommodates custom cutouts for Viking intercom boards, access control readers, or third-party modules sized to fit the 5x5 form factor. Integrators working across Viking's Viking intercom product line will find this enclosure matches the finish standard of Viking's white modular components. Stainless steel and non-weather-rated variants are available in the same family for applications demanding higher corrosion resistance or indoor-only cost optimization — check sibling models before specifying for salt-air or fully exposed outdoor locations.

Frequently Asked Questions

Q: What gauge is the steel box on the VE-5X5-PNL-WH?

A: The box is fabricated from 0.062-inch (16-gauge) cold-rolled steel with a UV-stable white fine texture powder coat finish.

Q: What is the blank panel made of?

A: The panel is 0.081-inch (12-gauge) aluminum with a UV-stable clear gloss powder coat finish — thicker than the box itself, which aids in clean field machining for custom cutouts.

Q: Is the VE-5X5-PNL-WH suitable for outdoor installation?

A: Viking describes the box as weather-resistant and designed for surface mounting. It is appropriate for covered exterior locations such as vestibules and covered entryways. For fully exposed outdoor or high-humidity environments, verify the specific IP rating against your project requirements and consider the stainless steel variant (VE-5X5-PNL-SS) for maximum corrosion resistance.

Q: What is the shipping weight of the VE-5X5-PNL-WH?

A: The shipping weight is 2.0 lb (0.91 kg).

Q: Does the panel ship pre-cut or blank?

A: The panel ships blank (no cutouts). Integrators punch or drill to match their specific module dimensions on-site.

Q: Are other finish options available in the same enclosure family?

A: Yes. Viking offers this enclosure in black (VE-5X5-PNL), stainless steel (VE-5X5-PNL-SS), and no-rain-guard variants. Match the finish and material to your environment and aesthetic requirements.

James Everett

The VE-5X5-PNL-WH is the model I reach for on commercial intercom retrofits where the existing rough-in is already a 5x5 footprint and the customer wants a white finish that matches door hardware and trim. The 12-gauge aluminum blank panel is the real working surface here — at 0.081 inches thick, it takes a standard chassis punch cleanly without the burring or micro-cracking you get from thinner sheet.

Technical Highlights:

• 16ga CRS Box (0.062"): Meaningful rigidity for a surface-mount enclosure — 16-gauge cold-rolled steel resists rack dents and maintains square geometry when module hardware is torqued down inside.
• 12ga Aluminum Panel (0.081"): Thicker than the box wall by nearly 30%, which matters when field-cutting irregular cutouts. Aluminum at this gauge doesn't require a nibbler — a standard chassis punch and step drill handle it cleanly.
• UV-Stable Powder Coat on Both Components: Two separate powder coats — fine texture white on the steel box, clear gloss on the aluminum panel — both UV-stabilized. The finish won't chalk or yellow on south-facing vestibule installs the way cheaper epoxy paints do.

Deployment Considerations:

• At 2.0 lb shipping weight, single-tech installation is straightforward — no need to stage a second person to hold the box during anchor placement on standard drywall or masonry.
• The weather-resistant rating covers covered exterior use, but this is not a rated IP66/IP67 enclosure — do not specify it for fully exposed outdoor locations or direct rain contact without confirming Viking's published IP rating for this SKU.

This enclosure fits best on commercial entry retrofit projects — multi-tenant residential lobbies, small office building vestibules, and school entry points — where a clean white finish, field-configurable panel, and single-person installation are the practical requirements.
