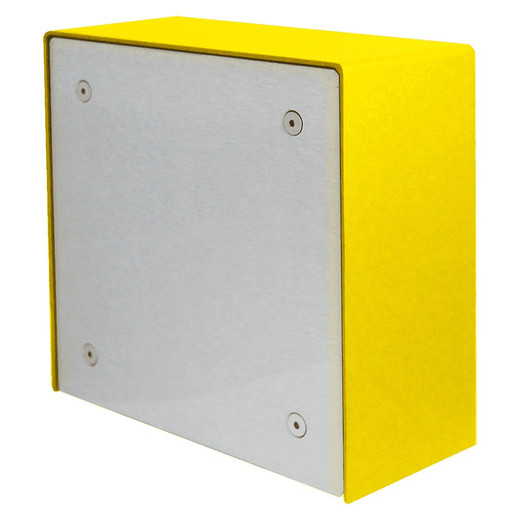

Viking Yellow Surface Mount Box with Panel No Rainguard - VE-5X5-PNL-NRYL

Viking Electronics VE-5X5-PNL-NRYL Yellow Surface Mount Box with Panel No Rainguard

Overview

The VE-5X5-PNL-NRYL is a compact, yellow surface mount enclosure from Viking Electronics designed for wall or post-mounted installations where a weather-resistant housing is needed without the added profile of a rainguard. Built from 16-gauge cold rolled steel (CRS) with a UV-stable yellow fine texture powder coat, this box stands out in environments where quick visual identification matters — utility areas, access points, emergency call stations, and similar applications. The 5x5 footprint and 2.38" depth keep it unobtrusive while still accommodating compact intercom or control modules. If you need a surface mount enclosure that pairs hardened steel construction with a high-visibility color and an aluminum panel face, this is the configuration to reach for.

Key Features

• 16-Gauge CRS Shell: At 0.062" thick, the cold rolled steel body resists denting and casual tampering. This isn't sheet metal — it's the same gauge used in commercial intercom housings, which matters when the enclosure is accessible at ground level or in high-traffic corridors.
• 12-Gauge Aluminum Panel: The 0.081" aluminum front panel is thicker than the box itself, giving the face rigidity for repeated button presses and hardware mounting without flex or rattle. Aluminum also resists corrosion on the exposed face, useful in humid or coastal environments.
• UV-Stable Yellow Powder Coat: The fine-texture yellow finish is specifically formulated to resist UV-induced fading and chalking. In outdoor-adjacent or high-light-exposure locations, a standard paint would discolor within a season — this coating holds color reliably over time, keeping the high-visibility yellow functional as a locator cue.
• No Rainguard Configuration: Skipping the rainguard trims the mounted depth and keeps the profile lower-profile. This is the right call for indoor installations, recessed alcoves, or anywhere the enclosure is protected by an overhang — you don't pay the extra protrusion for weather protection you don't need.
• Compact 5.22" × 5.14" × 2.38" Footprint: At just under 5.25" square and 2.38" deep, the VE-5X5-PNL-NRYL fits in tight spaces where a larger enclosure won't work. Compatible with standard single-gang and small-module Viking intercom hardware — check your specific Viking module dimensions against the interior clearance before ordering.
• 2 lb Shipping Weight: Lightweight enough for single-installer mounting on drywall anchors or wood framing without reinforcement, yet solid enough that the enclosure doesn't flex under normal use. Budget roughly 2 lbs (0.91 kg) into your per-location hardware weight for logistics planning.
• Surface-Mount Design: Mounts directly to a flat wall, post, or column face — no in-wall rough-in needed. This speeds installation in retrofit projects where cutting into finished walls isn't practical and keeps conduit runs exposed and accessible for future service.

Integration and Compatibility

The VE-5X5-PNL-NRYL is part of Viking Electronics' VE-Series enclosure line and is designed to pair with Viking intercom and door entry modules that fit the 5x5 form factor. The aluminum panel provides a flat, machinable surface for cutouts to accommodate buttons, speakers, cameras, or keypad modules. If your deployment needs full outdoor rain protection, the VE-Series includes rainguard variants for the same footprint — consider the VE-5x5-PNL-YL (with rainguard) if the installation location sees direct precipitation exposure. For projects requiring black enclosures, the VE-5x5-PNL (black CRS) covers the same footprint in a neutral finish. When planning conduit entry, confirm knockout locations against your Viking module's wiring requirements before finalizing rough-in.

Pair with an appropriate PoE switch or power supply depending on the Viking intercom module installed inside — the enclosure itself carries no electrical rating, so power delivery is entirely determined by the hosted device.

For broader enclosure and mounting hardware options across form factors and environments, the enclosures category covers compatible accessories for this and related installations.

Frequently Asked Questions

Q: Does the VE-5X5-PNL-NRYL include a rainguard?

A: No. The NRYL suffix designates the No Rainguard configuration. This box is suited for indoor or sheltered installations. If your location is exposed to direct rain, consider the rainguard variant in the VE-Series line.

Q: What is the VE-5X5-PNL-NRYL made of?

A: The box body is 0.062" (16-gauge) cold rolled steel with a UV-stable yellow fine texture powder coat. The front panel is 0.081" (12-gauge) aluminum with a UV-stable clear gloss powder paint finish.

Q: What are the exact dimensions of the VE-5X5-PNL-NRYL?

A: 5.22" wide x 5.14" tall x 2.38" deep (133 mm x 130 mm x 61 mm). Weight is 2 lbs (0.91 kg).

Q: Is the VE-5X5-PNL-NRYL suitable for outdoor use?

A: Viking describes the VE-Series boxes as weather resistant and designed for surface mounting. However, the NRYL variant does not include a rainguard, so it is best suited for indoor use or installations under a protective overhang where direct precipitation is not a factor.

Q: Can the aluminum panel be customized for specific Viking intercom modules?

A: The 12-gauge aluminum panel is flat and machinable, which allows field cutouts for buttons, speakers, cameras, or keypads. Confirm your Viking module's cutout template against the panel dimensions before drilling.

Q: What color is the VE-5X5-PNL-NRYL?

A: The enclosure body is yellow with a UV-stable fine texture powder coat. The aluminum panel has a UV-stable clear gloss powder paint finish. The yellow color is consistent with high-visibility or emergency-identification applications.

James Everett

The VE-5X5-PNL-NRYL sits in a specific niche of the VE-Series line: a high-visibility yellow enclosure built for locations where you want the box to be found quickly, but where a rainguard would add unnecessary bulk or depth. The 12-gauge aluminum panel — at 0.081" — is actually thicker than most enclosure faces I see at this form factor, and that extra rigidity matters when you're mounting push-to-talk buttons or repeated-use hardware on the face plate.

Technical Highlights:

• 16-Gauge CRS Body (0.062"): At 16 gauge, the steel shell handles accidental impacts and low-level tampering without deforming. This is a meaningful spec for anything mounted in a corridor, stairwell, or parking structure at accessible height.
• UV-Stable Yellow Powder Coat: The fine-texture powder coat is formulated specifically to resist UV-induced fading — relevant if the box is near windows, skylights, or semi-outdoor locations where standard finishes would discolor within 12–18 months.
• Compact 2.38" Depth: Without the rainguard, the box protrudes just 2.38" from the wall. In tight hallways or anywhere ADA clearance is a concern, that's a meaningful difference over the rainguard variant's deeper profile.

Deployment Considerations:

• The NRYL configuration is appropriate for indoor or protected locations only. If the installation point sees any direct rain exposure — even wind-driven — order the rainguard variant instead. The 12-gauge aluminum panel will handle moisture on the face, but water intrusion at the box seam is the real risk without a rainguard.
• Confirm your Viking intercom or control module's interior dimensions against the 5.22" × 5.14" × 2.38" internal envelope before ordering. Some Viking modules with deeper chassis or rear-terminated connectors may require the deeper box variant in the VE-Series.

This box is the right specification for emergency call stations, door entry points in covered vestibules, or utility access panels in industrial environments where yellow color-coding is used to flag communication or emergency hardware. It is not the right call for any installation that lacks overhead weather protection.
