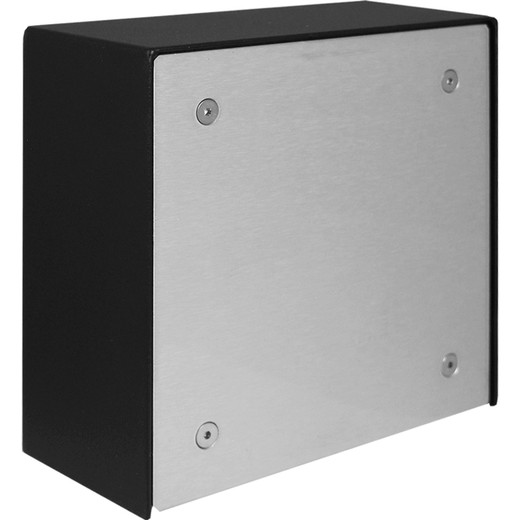

Viking VE-5X Black Enclosure Blank Panel No Rain Guard - VE-5X5-PNL-NR

Viking Electronics VE-5X5-PNL-NR Black Enclosure Blank Panel No Rain Guard

Overview

The VE-5X5-PNL-NR is the blank front panel insert for Viking's VE-5x5 surface-mount enclosure series. It ships without a rain guard cutout, making it the right choice when your installation doesn't require overhead weather protection — letting you keep the enclosure face clean and uninterrupted. If you're spec'ing a complete outdoor callbox or access-control station around a Viking VE-5x5 backbox, this panel is the finishing piece that closes off the front and gives the assembly a professional, sealed appearance.

Key Features

• 12-Gauge Aluminum Construction (0.081″ thick): At 12-gauge, this panel resists casual impacts and won't flex under normal field handling — relevant when techs are assembling or servicing the enclosure in the field. Aluminum also won't rust at cut edges the way steel can over time.
• UV-Stable Clear Gloss Powder Paint: The UV-stable coating is specified to resist fading and chalking in direct sun exposure. For exterior installations on south-facing walls or in high-UV climates, this matters — a panel that fades or chalks in two seasons looks like a maintenance problem even when the electronics are fine.
• No Rain Guard (NR Variant): The VE-5X5-PNL-NR omits the rain guard opening present on other panel variants. Choose this when your enclosure location provides its own overhead shelter, or when a rain guard cutout would conflict with the device layout inside the box.
• Shipping Weight 1.9 lb (0.86 kg): Lightweight enough for single-tech installation without staging hardware — no secondary support needed during fitment.

Integration & Compatibility

The VE-5X5-PNL-NR is designed as a component panel for the Viking VE-5x5 enclosure family. Sibling variants in the same panel line include stainless steel (VE-5X5-PNL-NRSS) and safety yellow (VE-5X5-PNL-NRYL) options — all sharing the same 5.22″ × 5.14″ × 2.38″ form factor, so if your deployment requires corrosion resistance beyond standard powder coat, the SS variant is a direct swap. The NR suffix is consistent across the family to denote the no-rain-guard configuration (often searched as VE 5X5 PNL NR).

Frequently Asked Questions

Q: What is the difference between the VE-5X5-PNL-NR and other panel variants in the VE-5x5 line?

A: The VE-5X5-PNL-NR is the standard black aluminum blank panel with no rain guard cutout. Sibling variants include the VE-5X5-PNL-NRSS (316 stainless steel, brushed #4B finish) and VE-5X5-PNL-NRYL (safety yellow, UV-stable powder coat). All are dimensionally compatible with the VE-5x5 backbox.

Q: What gauge is the panel material on the VE-5X5-PNL-NR?

A: The panel is fabricated from 0.081″ thick 12-gauge aluminum with a UV-stable clear gloss powder paint finish.

Q: Does the VE-5X5-PNL-NR include a rain guard?

A: No — the NR designation specifically means No Rain Guard. Choose this variant when your mounting location provides its own overhead cover, or when the rain guard cutout is not needed for your device layout.

Q: What are the dimensions of the VE-5x5 enclosure this panel fits?

A: Based on the VE-Series product family data, the enclosure form factor is 5.22″ × 5.14″ × 2.38″ (133mm × 258mm × 61mm). Confirm fit against the VE-Series product manual for your specific backbox SKU before ordering.

Q: Is the VE-5X5-PNL-NR suitable for outdoor use?

A: The panel uses a UV-stable powder coat finish and is part of Viking's weather-resistant VE-5x5 surface-mount enclosure line, designed for wall and post mounting. For high-corrosion environments (coastal, chemical), consider the stainless steel VE-5X5-PNL-NRSS variant instead.

Jerry Tildsen

When integrators ask me about the VE-5X5-PNL-NR, the first thing I clarify is the NR designation — this is the no-rain-guard blank panel, which is the right call when you're mounting inside a covered alcove, under a canopy, or in any situation where an overhead guard cutout would just be an unnecessary hole in your enclosure face. The 0.081″ 12-gauge aluminum is meaningfully stiffer than lighter-gauge sheet metal you'll find on budget enclosure accessories.

Technical Highlights:

• 12-Gauge Aluminum (0.081″): Stiffer than 14- or 16-gauge sheet — resists deflection when you're torquing fasteners during assembly or when the enclosure takes incidental contact in a high-traffic area.
• UV-Stable Powder Coat: Specified as UV-stable, which matters for south-facing or unshaded exterior installs — standard powder coat can chalk and fade within 18–24 months in high-UV environments; the UV-stable formulation extends the cosmetic service life.
• No Rain Guard Cutout: Keeps the panel face continuous, which also means no gap for insects or moisture ingress at the rain guard slot — a real-world advantage in humid or coastal deployments even when overhead protection exists.

Deployment Considerations:

• The dimensions shared across the VE-5x5 family (5.22″ × 5.14″ × 2.38″) are confirmed on sibling SS and YL variants — verify against the VE-Series manual for your specific backbox before cutting or drilling, since a mismatch on a pre-wired install is painful to fix.
• If your site has a corrosive atmosphere (salt air, ammonia, chemical wash-down), step up to the VE-5X5-PNL-NRSS stainless variant — the aluminum panel's powder coat is weather-resistant, not corrosion-proof in harsh chemical environments.

The VE-5X5-PNL-NR is the right panel spec for covered-entry intercom or access-control stations — lobby vestibules, parking garage pedestrian entrances, covered loading dock call points — anywhere the enclosure lives under a roof line and you want a clean, uninterrupted face with no unnecessary penetrations.
