STI STI-9631-R Clock/Bell Damage Stopper Red 10.5" Protective Cage
Overview

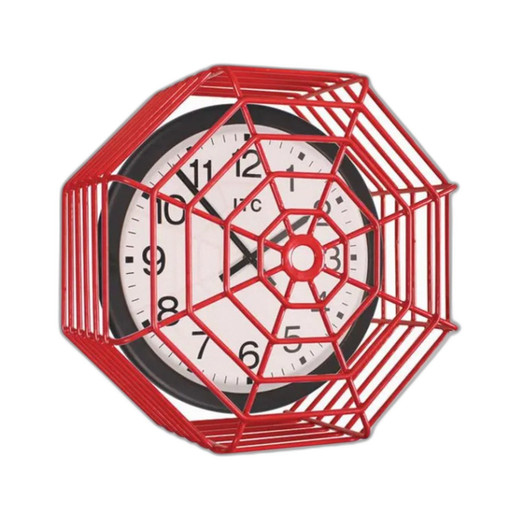

The STI-9631-R is a bright red 10.5-inch diameter wire protective cage designed to shield clock and bell systems from accidental or deliberate damage in institutional and commercial environments. This accessory mounts directly over existing clock or bell equipment, providing high-visibility asset protection while maintaining personnel access for authorized maintenance. The red color serves as both a visual deterrent and quick identification marker in facilities with multiple protected assets.
Compatibility
The STI-9631-R accommodates clock and bell systems with internal object diameters up to 12 inches and depths up to 3.65 inches — verify your existing equipment dimensions against these maximum internal clearances before ordering. The cage is part of STI's Clock and Bell Damage Stopper family, which includes larger variants (18-inch and 24-inch models) for oversized installations. Confirm your current clock or bell form factor fits within the specified dimensional envelope.
Installation Notes
Installation requires four anchor points drilled into the mounting surface. The kit includes (4) mounting clamps and (4) mounting screws for standard fastening. For lag bolt installations, use lag shields rated for your wall material and ensure anchors sit flush with the surface before inserting the guard. Select lag bolt length to guarantee full thread engagement. Installations requiring tamper-proof fasteners should order STI KIT-82 (stainless steel screws and 19038 security bit) separately. The cage mounts at a 75-degree angle relative to the surface. Drill four 3/16-inch (5mm) holes following the provided installation pictorial.
What's in the Box
- 1x STI-9631-R wire protective cage (10.5" diameter red)
- 4x mounting clamps
- 4x mounting screws
