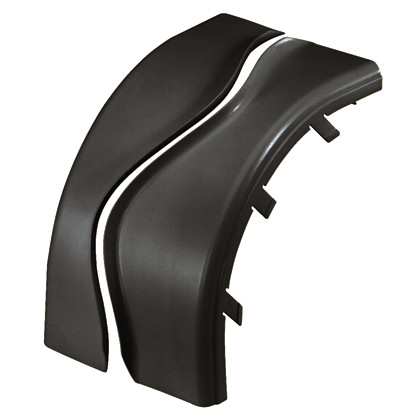

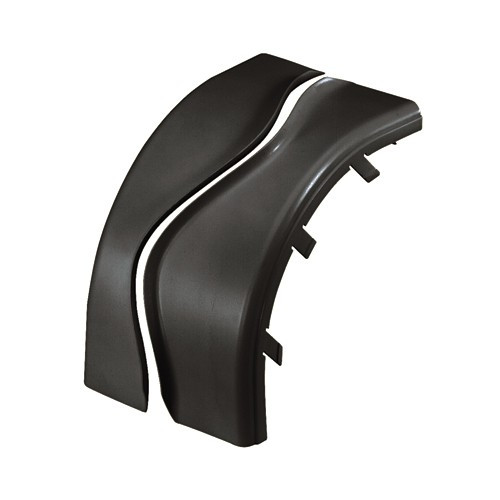

Panduit FROVRASC6LBL FiberRunner 6x4 Outside Vertical 90° Cover
Overview
The Panduit FROVRASC6LBL is an outside vertical 90-degree cover cap designed exclusively for the Panduit FiberRunner 6x4 system. Used in fiber routing and cable management runs at data centers and central telecom offices, this split-design cover creates an accessible opening at outside vertical bends — so technicians can add or remove cables without breaking down the entire raceway. The polycarbonate/ABS construction keeps the bend protected while the split geometry means you are not locked out of your cable path after the initial install.
Key Features
- Split-Cover Access Design: The split construction creates an opening at the outside vertical 90° turn — critical in dense fiber runs where you need to drop in or pull out cables post-commissioning without disassembling adjacent sections.
- Polycarbonate/ABS Construction: This material combination delivers dimensional stability under the mechanical stress of bend points where cable tension concentrates. It won't warp or crack when cables are routed under load, which matters in high-density backbone runs.
- Outside Vertical 90° Geometry: Engineered specifically for outside vertical direction changes in the FiberRunner 6x4 system. Using a mismatched cover at a bend point risks cable damage from improper radius — this cover maintains the correct bend radius protection the system is designed for.
- RoHS Compliance: Meets RoHS hazardous substance restrictions, supporting environmental compliance requirements for data center and telecom facility procurement programs.
- UL-Listed Optical Cable Routing Assemblies: UL certification to 2024A for optical cable routing assemblies means the system meets a recognized safety standard — relevant for facilities requiring listed cable management components in their infrastructure documentation.
- Telcordia GR-63-CORE and NEBS Level 3 Compliance: These standards cover seismic, thermal, and environmental stress performance for network equipment building systems. If your data center or central office carries NEBS compliance requirements, this cover participates in that compliance posture alongside the broader FiberRunner system.
- 8.67 in. × 6.87 in. Form Factor: At 220.2 mm height and 174.4 mm width, this cover is sized for the 6x4 channel — not interchangeable with 4x4 or 2x2 variants. Confirm your installed FiberRunner channel size before ordering.
Integration & Compatibility
The FROVRASC6LBL is designed for use with the Panduit FiberRunner 6x4 system. It is not compatible with FiberRunner 4x4 or 2x2 channels — the channel width and cover geometry are specific to the 6x4 form factor. Deploy this cover wherever your fiber routing system makes an outside vertical 90° direction change. Pair with the corresponding FiberRunner 6x4 channel sections, straight covers, and inside-bend covers to complete a fully enclosed data center cable management pathway. Each package contains one cover; plan quantities based on the number of outside vertical 90° transitions in your routing layout.
What's in the Box
- 1x Panduit FROVRASC6LBL Outside Vertical 90° Split Cover (FiberRunner 6x4)
Frequently Asked Questions
Q: What FiberRunner channel size does the FROVRASC6LBL fit?
A: The FROVRASC6LBL is designed specifically for the FiberRunner 6x4 system. It is not compatible with 4x4 or 2x2 FiberRunner channels.
Q: Is the FROVRASC6LBL RoHS compliant?
A: Yes. The FROVRASC6LBL meets RoHS requirements for restriction of hazardous substances.
Q: Does the FROVRASC6LBL meet NEBS Level 3 requirements?
A: Yes. It conforms to Telcordia GR-63-CORE and Network Equipment Building Systems Level 3 test application requirements as part of the FiberRunner system.
Q: Is the FROVRASC6LBL UL listed?
A: Yes. The FiberRunner optical cable routing assemblies are UL listed to 2024A, which includes this cover component.
Q: How many covers come in one package?
A: Each package contains 1 cover. Carton quantity is 5 units if ordering in bulk.
Q: What is the overall size of the FROVRASC6LBL?
A: The cover measures 8.67 inches (220.2 mm) in height and 6.87 inches (174.4 mm) in width.
The FROVRASC6LBL is the piece most installers forget to spec until they're standing in front of a completed FiberRunner 6x4 run that needs a cable added. That split-cover design at the outside vertical 90° is what separates a serviceable install from one you have to partially tear down every time the network team touches a fiber path. At 8.67 inches tall and 6.87 inches wide, it's sized precisely for the 6x4 channel — this is not a universal fit part.
Technical Highlights:
- Polycarbonate/ABS Material: Dimensionally stable at cable bend points where tension loads concentrate — won't warp under the static load of a dense fiber bundle pulling through the 90° turn.
- NEBS Level 3 / Telcordia GR-63-CORE: If your central office or data center facility spec requires NEBS compliance documentation, this cover participates in that posture as part of the certified FiberRunner assembly — not just the channel itself.
- UL Listed to 2024A: UL certification on optical cable routing assemblies is increasingly required by facilities teams during commissioning sign-off. Having it on the cover components, not just the channel, closes that documentation gap.
Deployment Considerations:
- Quantity planning is critical — each package ships as 1 unit (carton of 5). Walk your fiber routing layout and count every outside vertical 90° transition before placing your order; it's a common undercount on multi-rack rows.
- This cover is channel-size-specific. The FROVRASC6LBL fits FiberRunner 6x4 only — do not substitute with covers from the 4x4 or 2x2 families, as the geometry will not seat correctly and bend radius protection will be compromised.
The FROVRASC6LBL is the right spec for central office and enterprise data center backbone fiber runs where NEBS compliance, UL documentation, and long-term serviceability at bend points are non-negotiable requirements — not an afterthought cover to close out a punch list.
