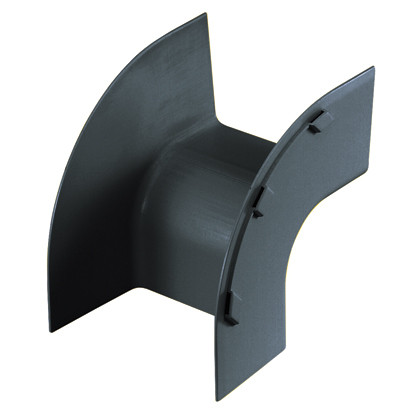

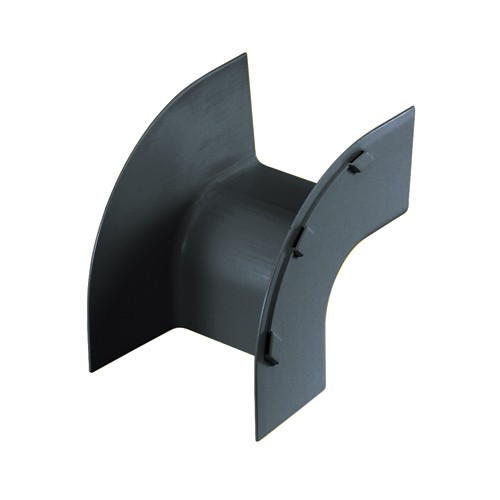

Panduit FROVRA6X4LBL FiberRunner 6x4 Vertical Outside 90° Elbow

Overview

The Panduit FROVRA6X4LBL is a vertical outside 90-degree elbow fitting for the Panduit FiberRunner 6x4 raceway system, purpose-built for transitioning fiber runs from a horizontal pathway into a vertical drop or rise — without bending the fiber past safe minimum bend radius. In data centers and telecom central offices where cable density is high and routes are rarely straight, this fitting is the structured answer to the corner problem: it keeps the fiber in a protected, enclosed channel through the full 90-degree turn rather than looping it loosely behind a rack. If you're building out a fiber routing and cable management infrastructure and hitting vertical-to-horizontal transitions, this is the component that closes the gap in the system.

Key Features

• Vertical Outside 90° Geometry: Creates a clean 90-degree vertical turn on the outside radius of a fiber routing pathway. This is the correct fitting when the run needs to exit a horizontal raceway and head downward or upward along a cabinet — the outside radius provides generous bend clearance, reducing stress-induced signal loss on tight fiber counts.
• 6x4 FiberRunner System Compatibility: Designed exclusively for the 6x4 FiberRunner channel (6-inch width, 4-inch depth). That size handles high-fiber-count trunks — the kind you'd see in core switching rooms or main distribution frames — so this elbow keeps pace with the capacity of the straight sections it connects to.
• Overall Height of 7.74 inches (196.6 mm): The 7.74-inch profile accommodates the sweeping radius needed for a vertical 90-degree transition without crimping. In a floor-to-ceiling vertical run, this height means you plan roughly 8 inches of vertical clearance above the transition point before returning to straight raceway.
• Overall Length of 7.04 inches: The 7.04-inch footprint sets how much horizontal real estate the fitting occupies at the elbow's base. Factor this into rack-row layout if you're routing along a raised floor cable tray or overhead ladder rack — the fitting needs clear horizontal space at the point of departure from the horizontal run.
• Polycarbonate/ABS Construction: The PC/ABS blend delivers the impact resistance to survive a busy cable installation without cracking, while remaining light enough that it doesn't add meaningful load to a ceiling-mounted raceway. In data center environments where fittings can get bumped during hot-swap operations, durable thermoplastic construction holds up better than fiber-reinforced alternatives that can shatter under impact.
• UL Listed per UL 2024A for Optical Fiber Cable Routing Assemblies: UL 2024A is the specific listing for fiber cable routing assemblies — not a generic electrical listing. This matters for installations where the AHJ (authority having jurisdiction) requires listed raceways, and it gives facilities managers documented compliance for insurance and commissioning sign-off.
• NEBS Level 3 Compliant (Telcordia GR-63-CORE): NEBS Level 3 is the environmental durability benchmark for telecom central office equipment — covers seismic zone 4, thermal cycling, fire resistance, and acoustic requirements. If you're deploying in a carrier-grade CO or a colocation facility with NEBS requirements in the contract, this fitting meets the bar without requiring a separate compliance review.
• RoHS Compliant: Restriction of Hazardous Substances compliance means this component is cleared for export to EU member states and for installations in facilities with environmental materials policies — relevant for enterprise buyers with global procurement standards.
• Black Color, Single-Unit Package (Carton Qty: 5): Supplied as a single unit; carton quantity is 5. The black finish matches standard data center aesthetics. Order in multiples of the carton for larger raceway builds to maintain consistent lot pricing.

Integration & Compatibility

The FROVRA6X4LBL is a system component — it is designed to work only within the FiberRunner fiber routing system ecosystem. It integrates directly with 6x4 FiberRunner straight sections, horizontal elbows, tees, and end caps from the same product family. Mixing raceway brands or channel sizes at the fitting joint is not supported and will create gaps in the enclosed pathway, defeating the cable protection and bend-radius management the system provides. If your infrastructure includes both 6x4 and 4x4 FiberRunner runs, transitions between channel sizes require a dedicated reducer fitting — this elbow does not double as a reducer. For installations requiring data center structured cabling builds with multiple fitting types across a single vertical run, source the full FiberRunner 6x4 fitting family together to ensure consistent channel dimensions and snap-fit assembly throughout.

What's in the Box

• 1x Panduit FROVRA6X4LBL FiberRunner 6x4 Vertical Outside 90° Elbow (black, PC/ABS)

Frequently Asked Questions

Q: What raceway system does the FROVRA6X4LBL work with?

A: The FROVRA6X4LBL is designed exclusively for the Panduit FiberRunner 6x4 system — the 6-inch-wide by 4-inch-deep channel. It is not compatible with other channel sizes (such as 4x4 or 2x2) or with non-FiberRunner raceway systems.

Q: Is the FROVRA6X4LBL UL listed?

A: Yes. It is UL listed under UL 2024A, the specific standard for optical fiber cable routing assemblies. This listing supports AHJ sign-off and commissioning documentation for data center and telecom installations.

Q: Does the FROVRA6X4LBL meet NEBS requirements?

A: Yes. It meets the relevant test requirements per Telcordia GR-63-CORE and is NEBS Level 3 compliant, making it suitable for carrier-grade central office and colocation environments with NEBS contractual requirements.

Q: How many units come in a package, and what is the carton quantity?

A: Each package contains 1 unit (FROVRA6X4LBL). The carton quantity is 5 units. For larger raceway builds, ordering in full cartons is the standard approach.

Q: What are the overall dimensions of the FROVRA6X4LBL fitting?

A: Overall height is 7.74 inches (196.6 mm) and overall length is 7.04 inches. Plan for approximately 8 inches of vertical clearance above the transition point and just over 7 inches of horizontal space at the elbow base when laying out your raceway route.

Q: Is the FROVRA6X4LBL RoHS compliant?

A: Yes. The FROVRA6X4LBL is RoHS compliant, confirming the absence of restricted hazardous substances — relevant for EU deployments and facilities with environmental materials procurement requirements.
